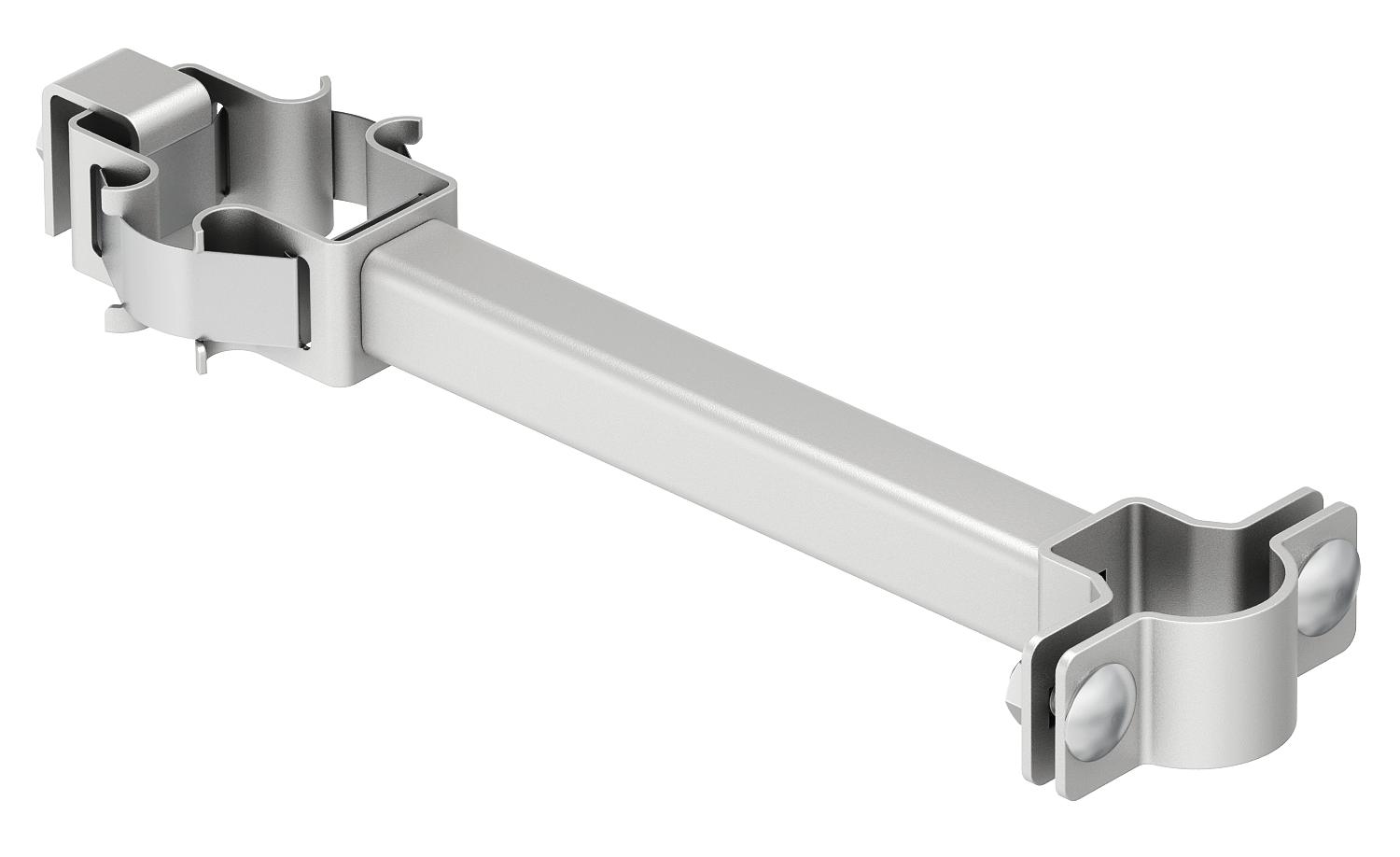

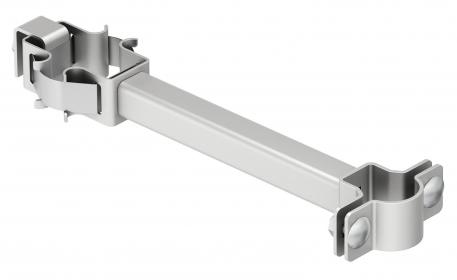

isFang support for spaced pipe mounting, ø 50−300 mm

Item no. / Types

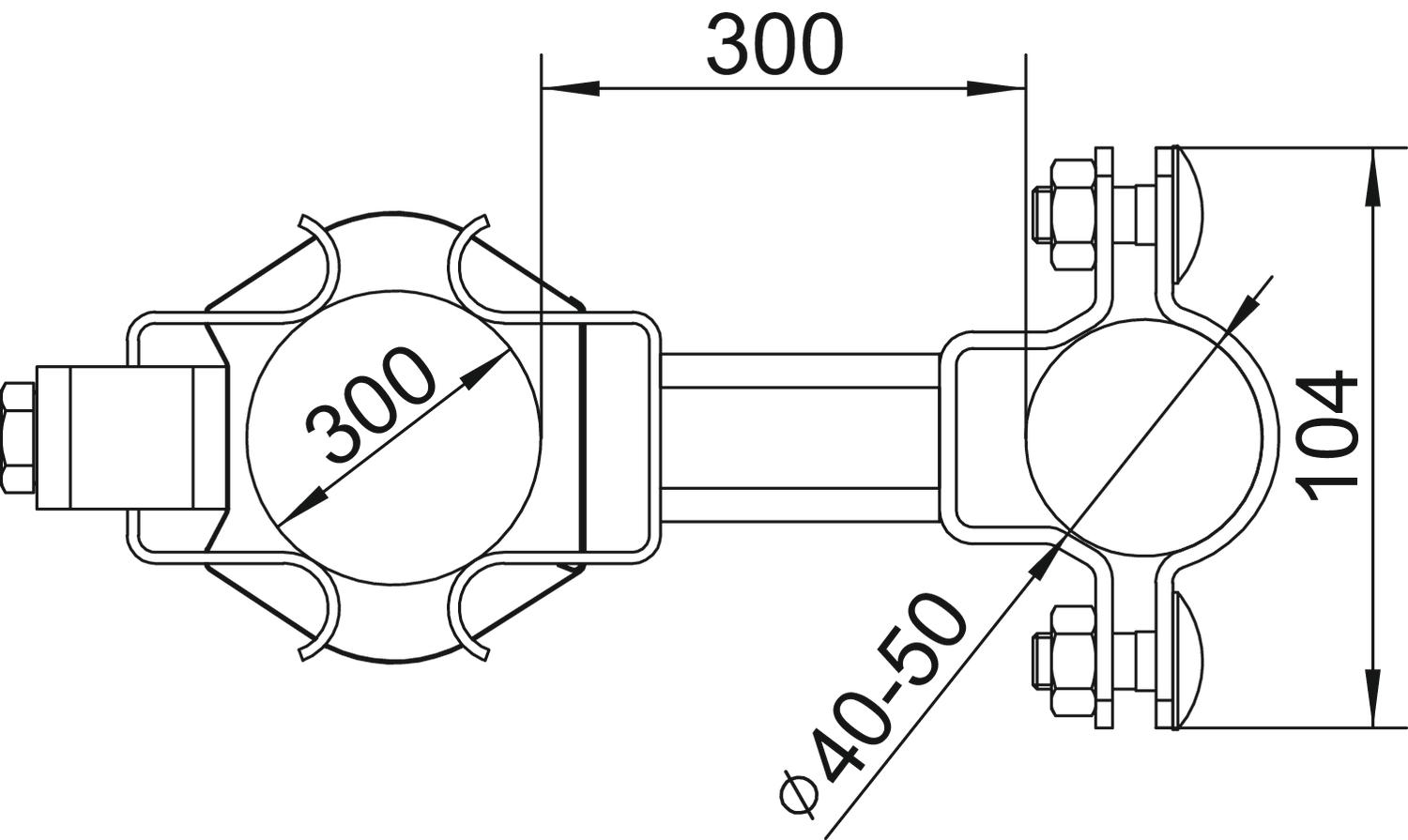

Dimension L

Fit	ø 50–300 mm

Product description

Product description

Tightening strap clip to fasten the insulated support pipes on the structure to be protected or for construction-side pipes of ø 50–300 mm.

Technical data

Fit	ø 50–300 mm
Material	Stainless steel

All types

All types

Types	Dimension L	Fit	Item no.	Quantity	SSU
isFang TR100 100	100 mm	ø 50–300 mm	5408955	piece	2 piece
isFang TR100 200	200 mm	ø 50–300 mm	5408957	piece	2 piece
isFang TR100 300	300 mm	ø 50–300 mm	5408959	piece	2 piece

Downloads

Data sheet isFang TR100 300 / 5408959 , 0.11MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Download

Mounting instructions Extended mounting instructions, long isCon® , 6.19MB , pdf
