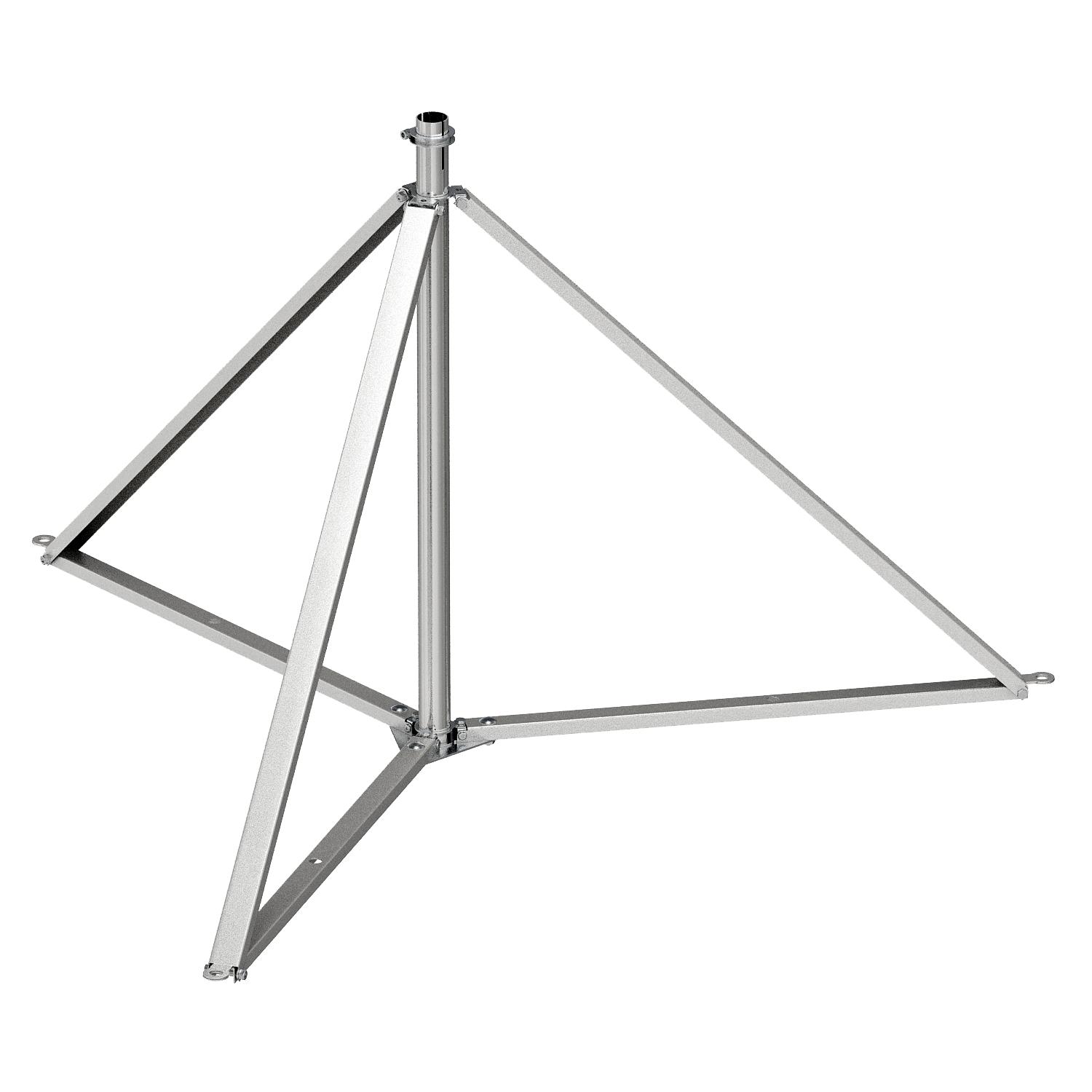

isFang tripod 1500 | 40 | 1275 | 900 | Aluminium

isFang tripod

Item no. 5408967 | EAN 4012195802440

Item no. / Types

Dimension B

Dimension d min.	40 mm

Dimension H

Dimension L

Material

Product description

Product description

• Installation of free-standing air-termination rods as well as insulated air-termination rods with 40 mm diameter
• Roof slope to max. 5 degrees
• Incl. Rd 8–10 crossbar for quick round conductor fastening
• Concrete base as well as threaded rods should be ordered separately

Technical data

Technical data

Air-termination rod holder	Screwless
CO₂ Footprint (GWP) Cradle-to-Gate	43,8869 kg CO₂e / 1 Piece
Diameter	1500 mm
Dimension	1,65x1,85m
Dimension B	1500 mm
Dimension d min.	40 mm
Dimension H	1275 mm

Dimension L	900 mm
Height	1275 mm
Length	900 mm
Material	Aluminium
Version for	Stand
Width	1500 mm

All types

All types

Types	Dimension B	Dimension d min.	Dimension H	Dimension L	Material	Item no.	Quantity	SSU
isFang 3B-100 AL	1000 mm	40 mm	885 mm	600 mm	Aluminium	5408966	piece	1 piece
isFang 3B-150 AL	1500 mm	40 mm	1275 mm	900 mm	Aluminium	5408967	piece	1 piece
isFang 3B-100	1000 mm	40 mm	885 mm	600 mm	Stainless steel	5408968	piece	1 piece
isFang 3B-150	1500 mm	40 mm	1275 mm	900 mm	Stainless steel	5408969	piece	1 piece
