- Product description
-
Product description

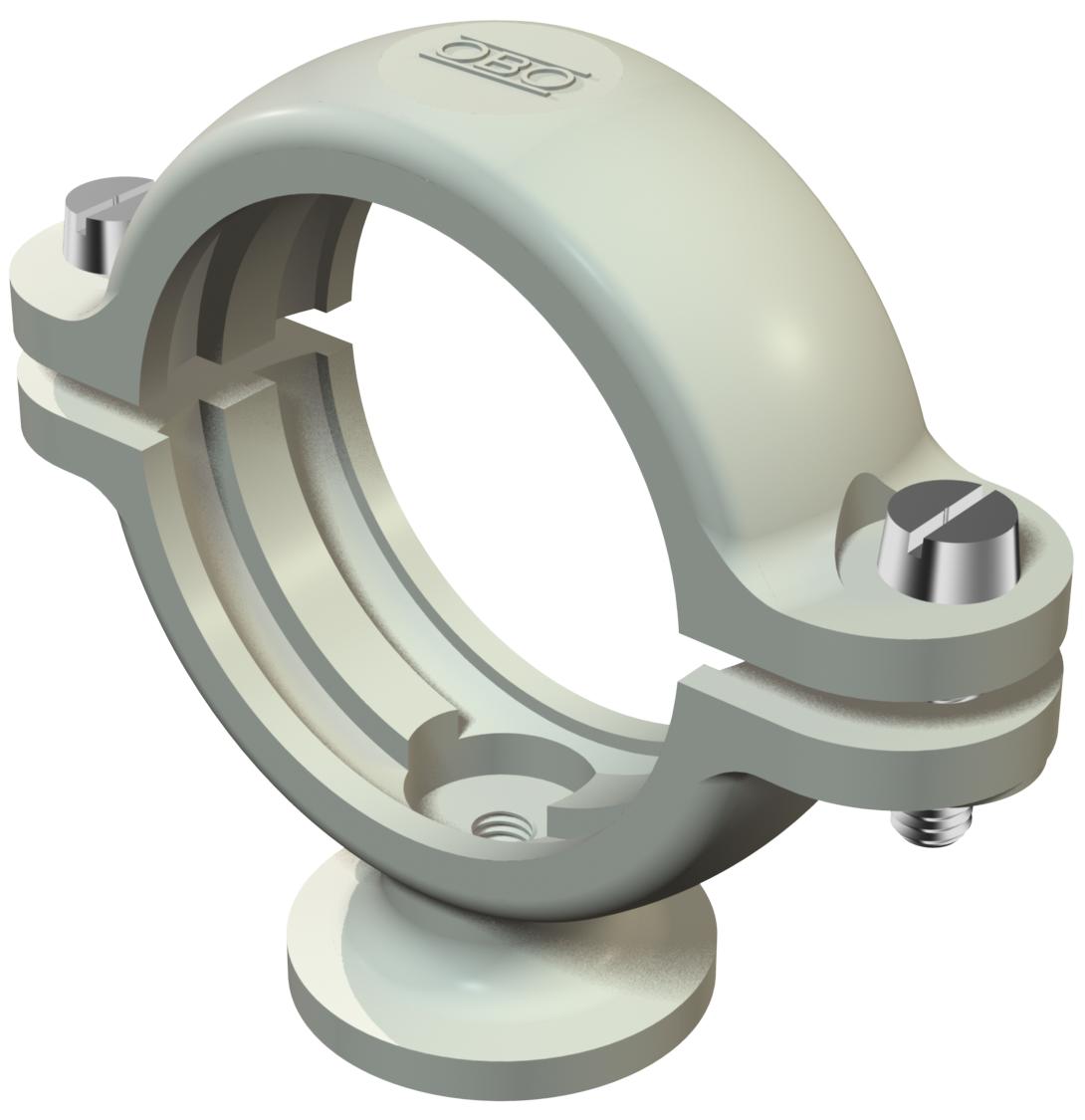

ISO base clip 12 mm
- Technical data
-
Technical data

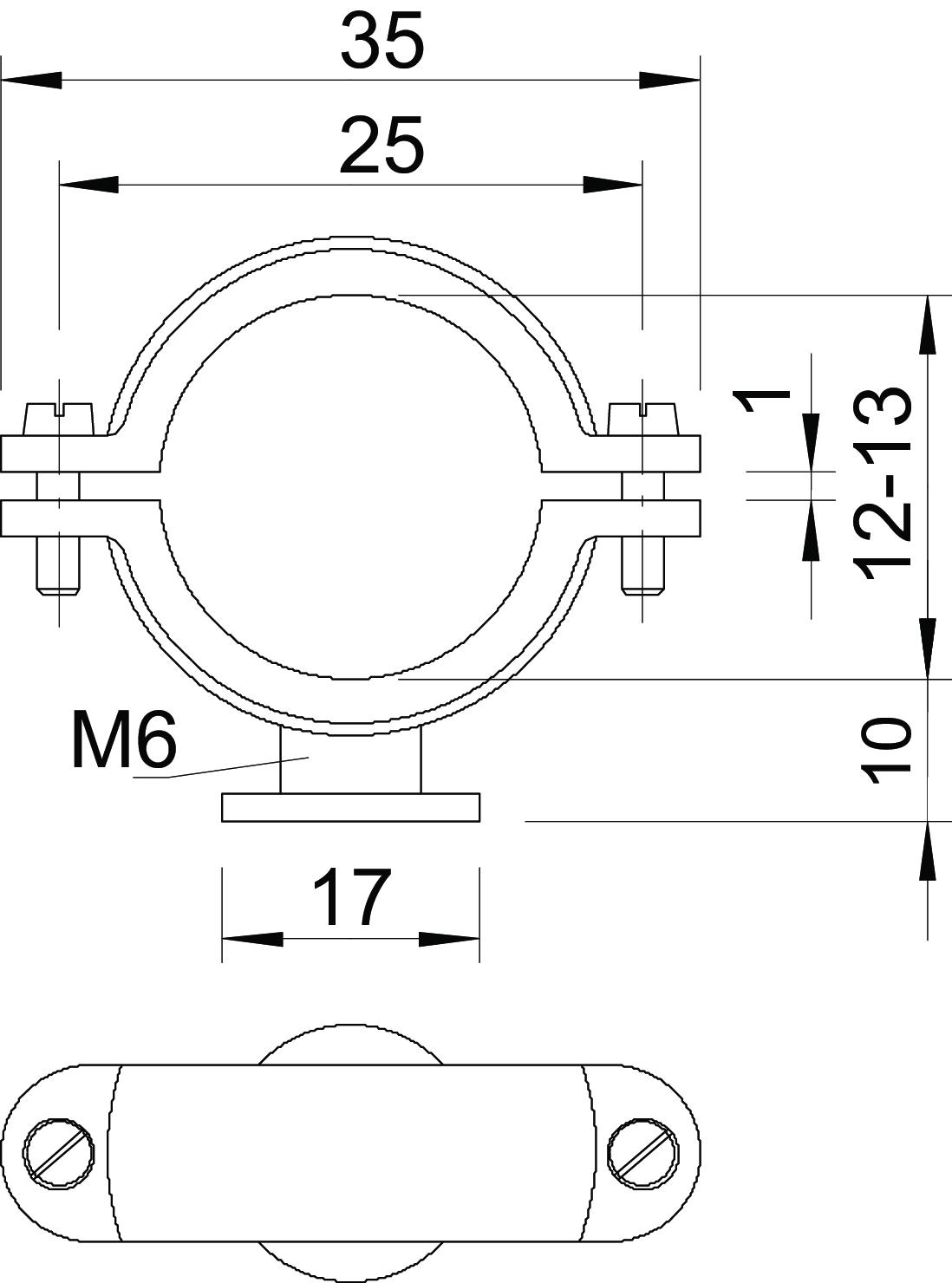

Bolt M4 x 10 Clamping range D, max. 13 mm Clamping range D, min. 12 mm Colour Light grey; RAL 7035 Dimension 12mm Dimension A 35 mm Dimension B 25 mm Dimension d 17 mm Dimension d max. 13 mm Dimension d min. 12 mm Dimension H 10 mm Dimension x 1 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Size Pg 9 Suitable in fire protection area no Thread M6 UV-resistant no Version for Closed - All types
-
All types
- Downloads
-
Data sheet 2960 12 M6 LGR / 2130122 , 0.22MB , pdfDeclaration of conformity 2960 12 M6 LGR / 2130122 , 0.06MB , pdfREACH Declaration of conformity 2960 12 M6 LGR / 2130122 , 0.12MB , pdfRoHS Declaration of conformity 2960 12 M6 LGR / 2130122 , 0.12MB , pdf
