- Product description
-

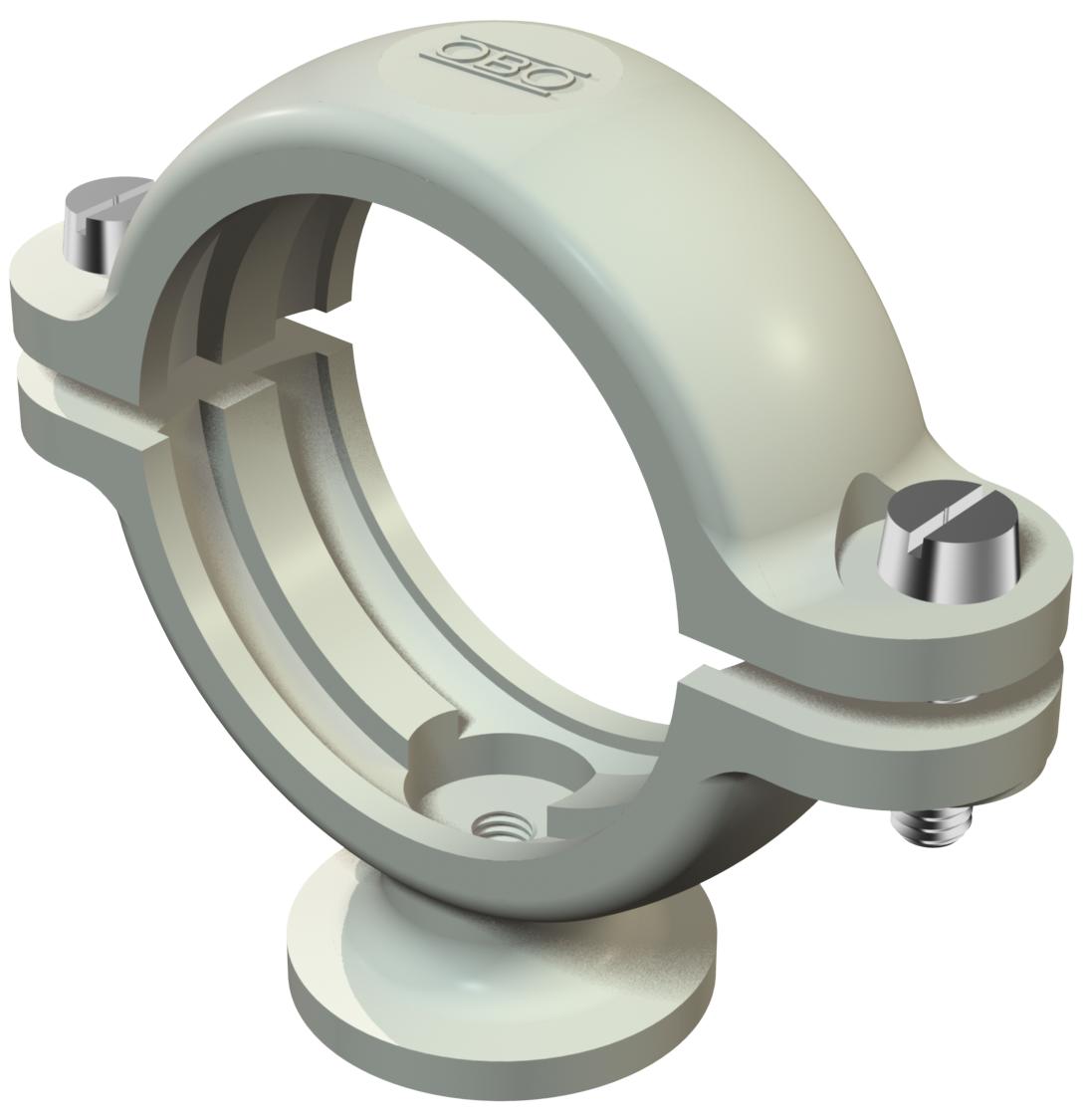

Product descriptionISO base clip 16.5–18 mm
- Technical data
-
Technical data

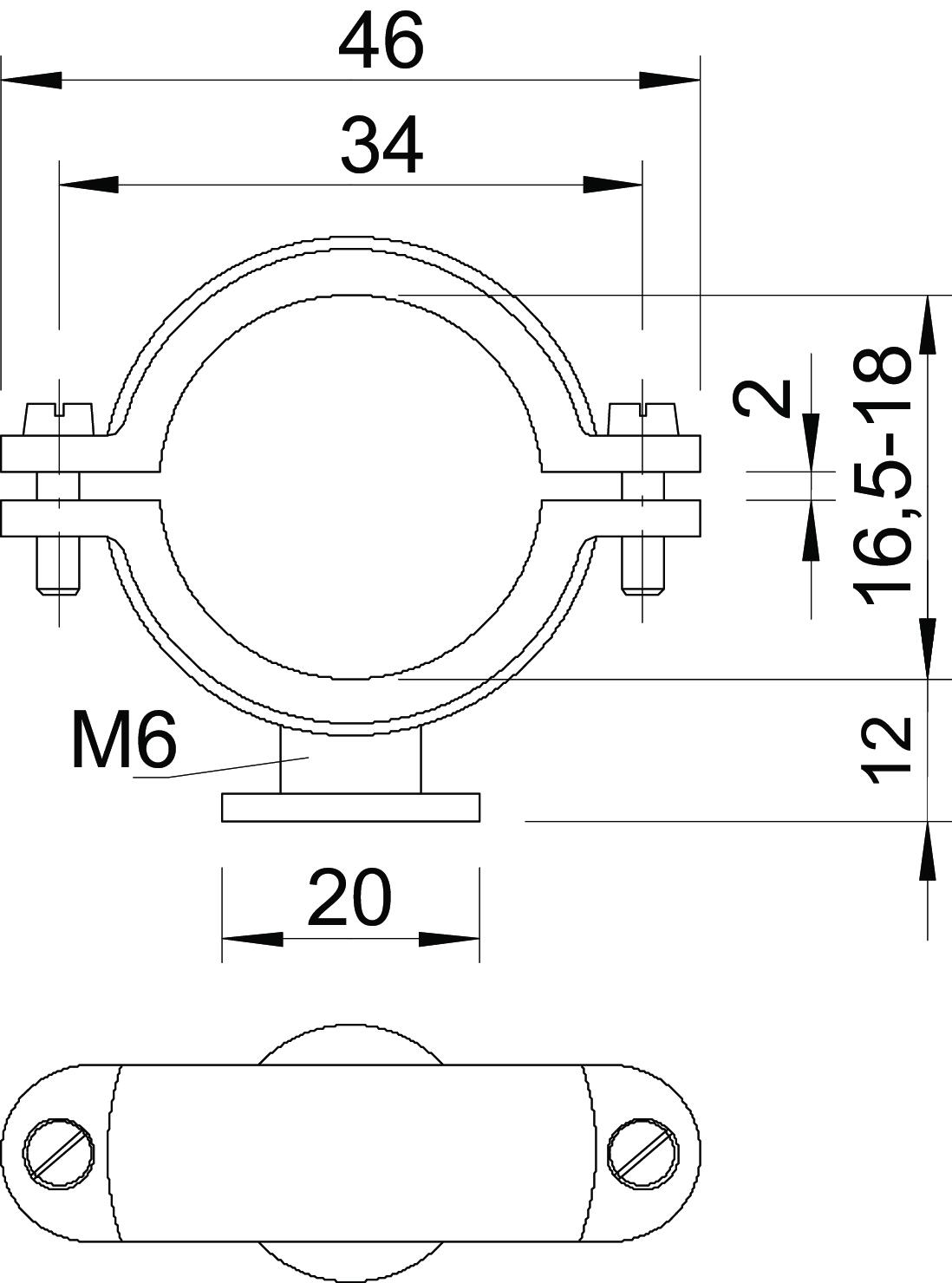

Bolt M5 x 14 Clamping range D, max. 18 mm Clamping range D, min. 16,5 mm Colour Light grey; RAL 7035 Dimension 16,5-18mm Dimension A 46 mm Dimension B 34 mm Dimension d 20 mm Dimension d max. 18 mm Dimension d min. 16,5 mm Dimension H 12 mm Dimension x 2 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Size Pg 9 Suitable in fire protection area no Thread M6 UV-resistant no Version for Closed - All types
-
All types
- Downloads
-
Data sheet 2960 18 M6 LGR / 2130181 , 0.23MB , pdfEU declaration of conformity 2960 18 M6 LGR / 2130181 , 0.06MB , pdfREACH Declaration of conformity 2960 18 M6 LGR / 2130181 , 0.12MB , pdfRoHS Declaration of conformity 2960 18 M6 LGR / 2130181 , 0.12MB , pdf
