- Product description
-
Product description

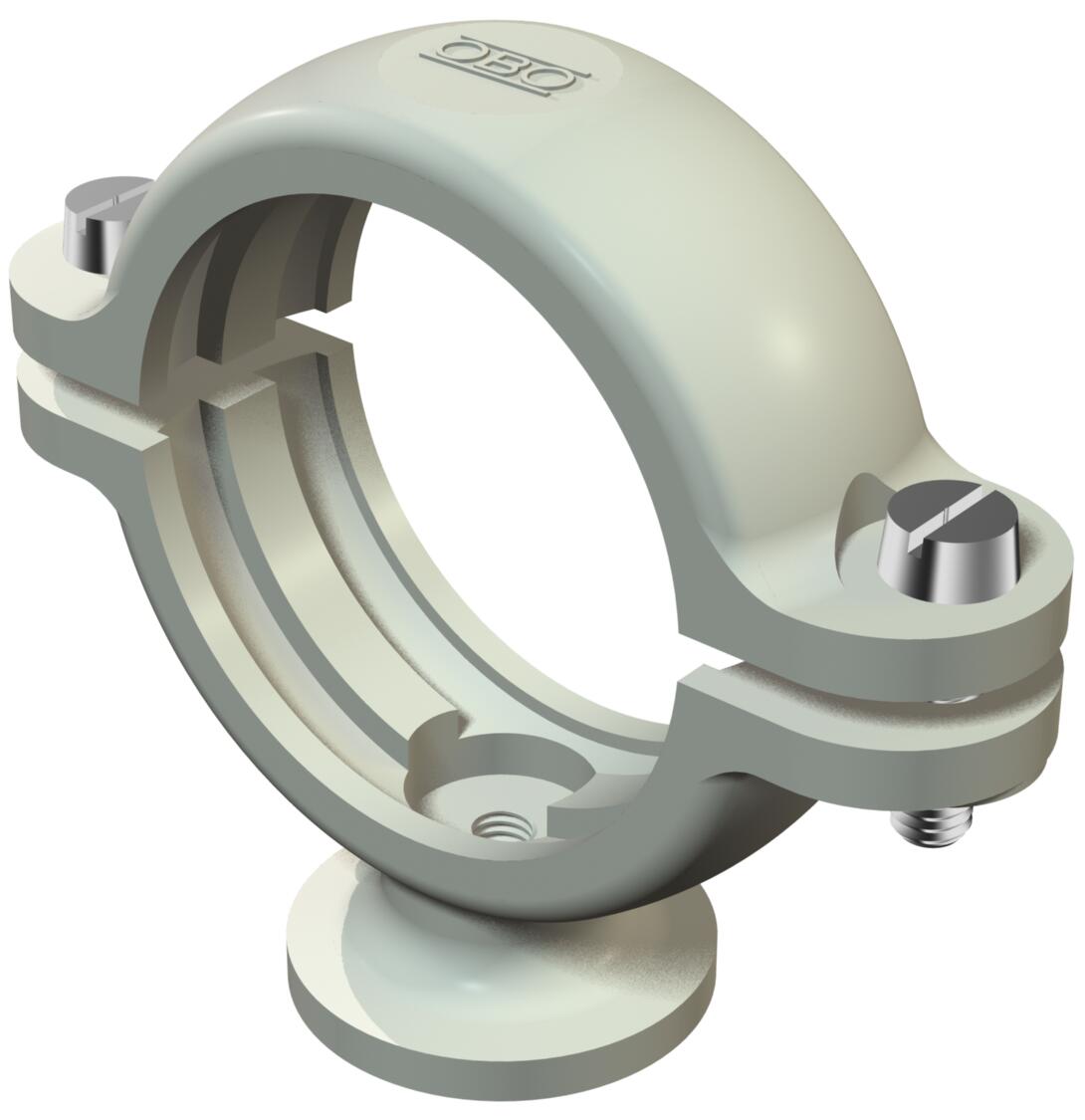

ISO base clip 22.5–25 mm
- Technical data
-
Technical data

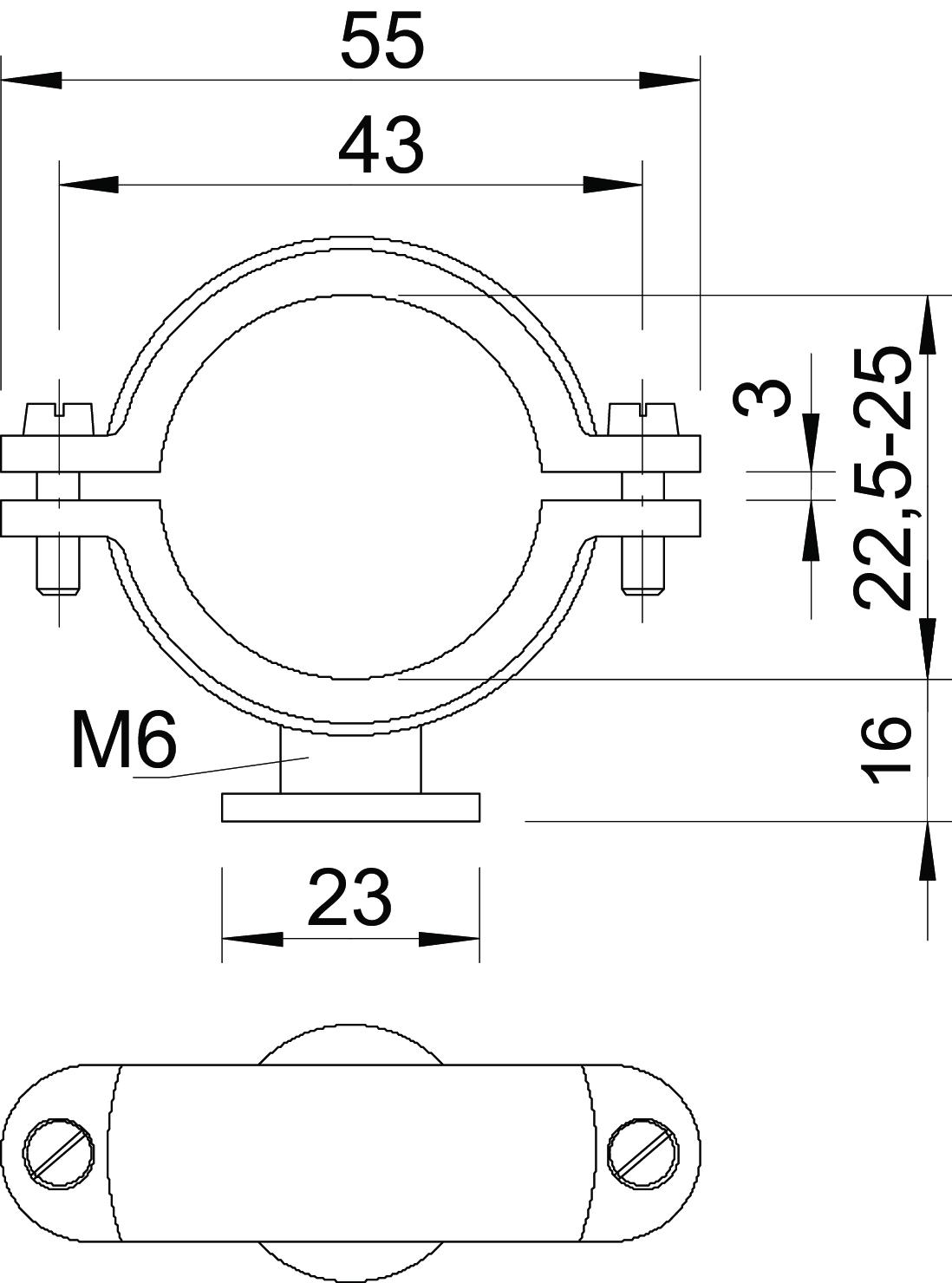

Bolt M5 x 14 Clamping range D, max. 25 mm Clamping range D, min. 22,5 mm Colour Light grey; RAL 7035 Dimension 22,5-25mm Dimension A 55 mm Dimension B 43 mm Dimension d 23 mm Dimension H 16 mm Dimension x 3 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Size Pg 9 Suitable in fire protection area no Thread M6 UV-resistant no Version for Closed - All types
-
All types
- Downloads
-
Data sheet 2960 25 M6 LGR / 2130254 , 0.23MB , pdfDeclaration of conformity 2960 25 M6 LGR / 2130254 , 0.06MB , pdfREACH Declaration of conformity 2960 25 M6 LGR / 2130254 , 0.12MB , pdfRoHS Declaration of conformity 2960 25 M6 LGR / 2130254 , 0.12MB , pdf
