ISO nail clip 2004, light grey 18 | 4 | 2,0x18 | Light grey; RAL 7035

morepic-1

morepic-2

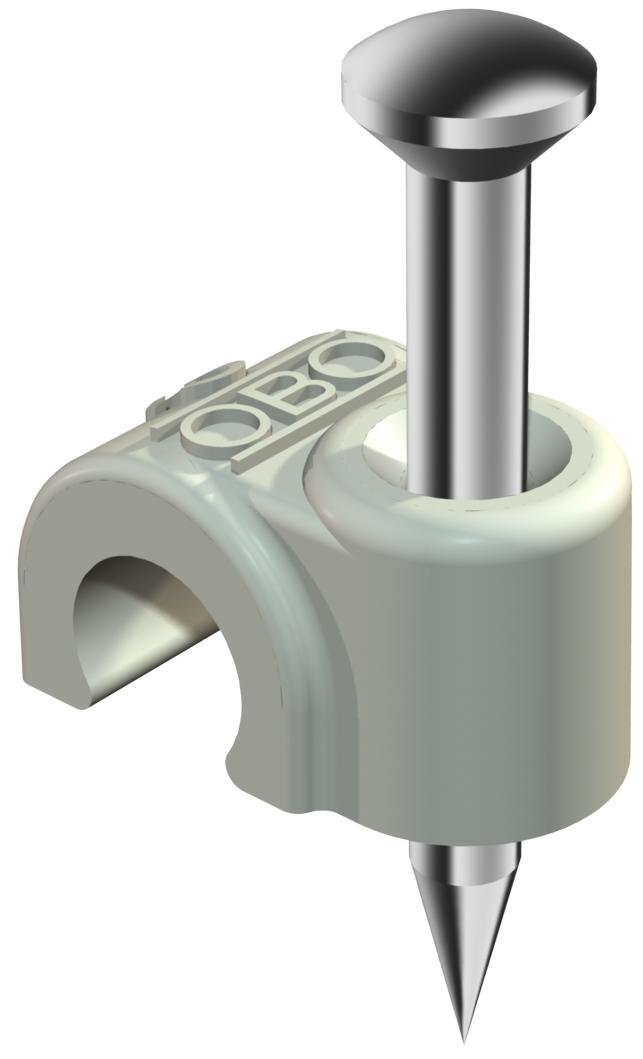

ISO nail clip 2004, light grey

Item no. 2227223 | EAN 4012195217275

Item no. / Types

Nail length

for cable diameter	4 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	4mm, L18
Dimension B	6 mm
Dimension H	6,1 mm
Dimension L	9,6 mm
Double clip	no
for cable diameter	4 mm
For nail diameter	2,0x18
Halogen-free	yes

Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	18 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2004 18 LGR	18 mm	4 mm	2,0x18	Light grey; RAL 7035	2227223	piece	200 piece
2004 25 LGR	25 mm	4 mm	2,0x25	Light grey; RAL 7035	2227231	piece	200 piece

Downloads

Data sheet 2004 18 LGR / 2227223 , 0.16MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2004 18 LGR / 2227223 , 0.06MB , pdf

Download

REACH Declaration of conformity 2004 18 LGR / 2227223 , 0.12MB , pdf

Download

RoHS Declaration of conformity 2004 18 LGR / 2227223 , 0.12MB , pdf

Download

Product graphic 2004 18 LGR / 2227223, 42.51 kB, jpg

Scale drawing 2004 18 LGR / 2227223, 66.04 kB, jpg

2004 18 LGR / 2227223
