ISO nail clip 2005, light grey 18 | 5 | 2,0x18 | Light grey; RAL 7035
morepic-1 morepic-2

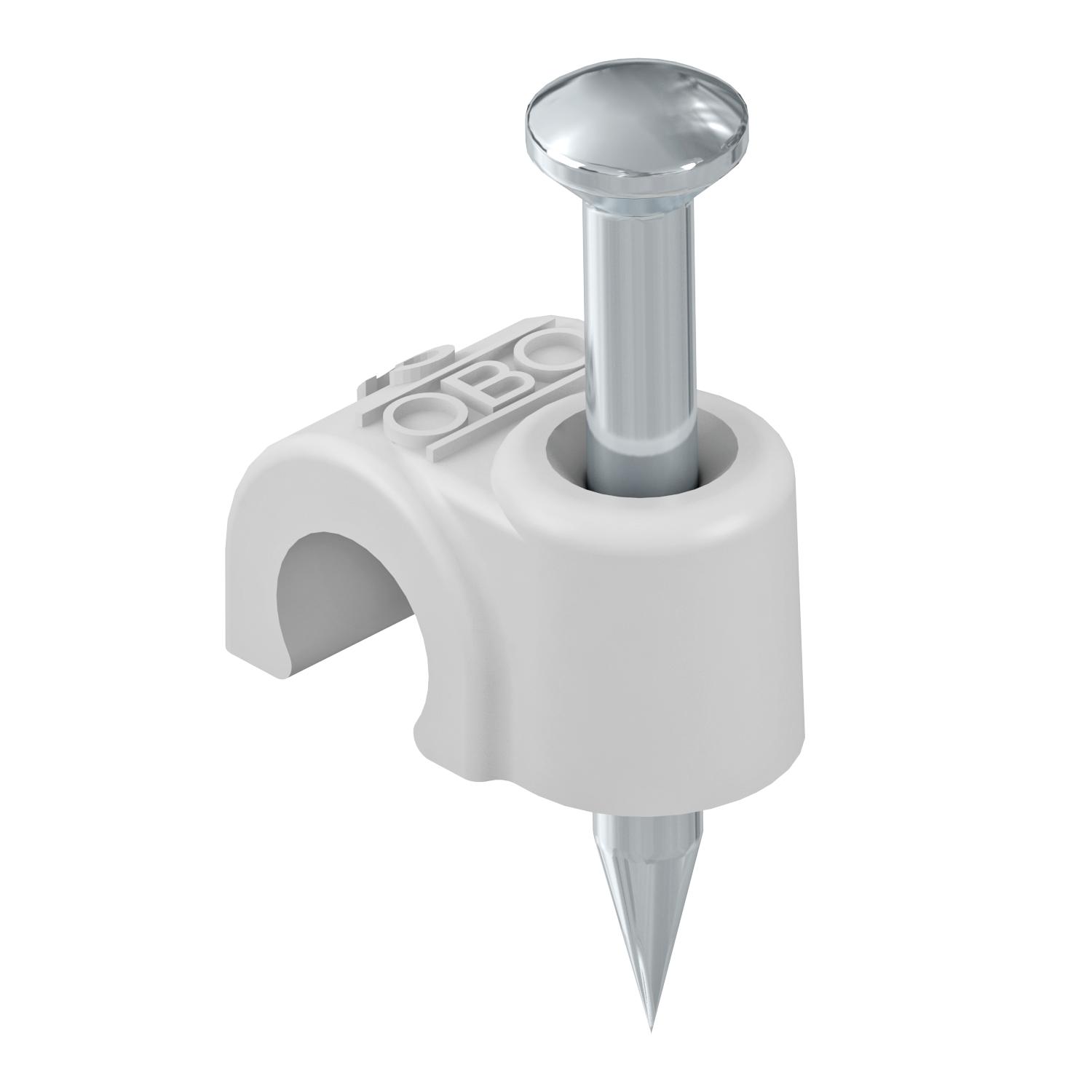

ISO nail clip 2005, light grey

Item no. 2227347 | EAN 4012195217459

5 mm
Light grey; RAL 7035
Product description
Product description
ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

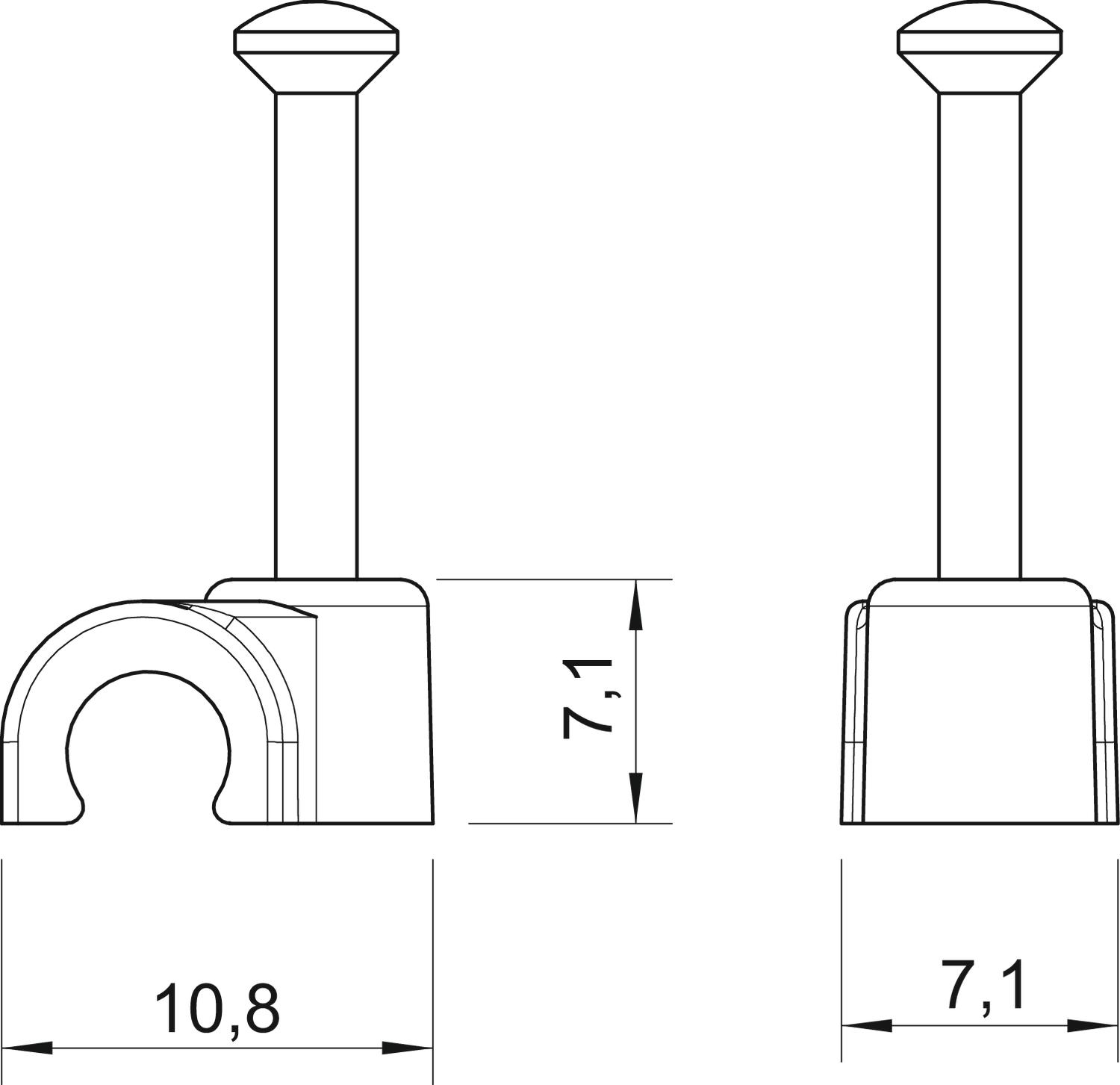

Dimension 5mm, L18
Dimension B 7,1 mm
Dimension H 7,1 mm
Dimension L 10,8 mm
Double clip no
for cable diameter 5 mm
For nail diameter 2,0x18
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 18 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2005 25 LGR 25 mm 5 mm 2,0x25 Light grey; RAL 7035 2227339
100 piece
2005 18 LGR 18 mm 5 mm 2,0x18 Light grey; RAL 7035 2227347
100 piece
