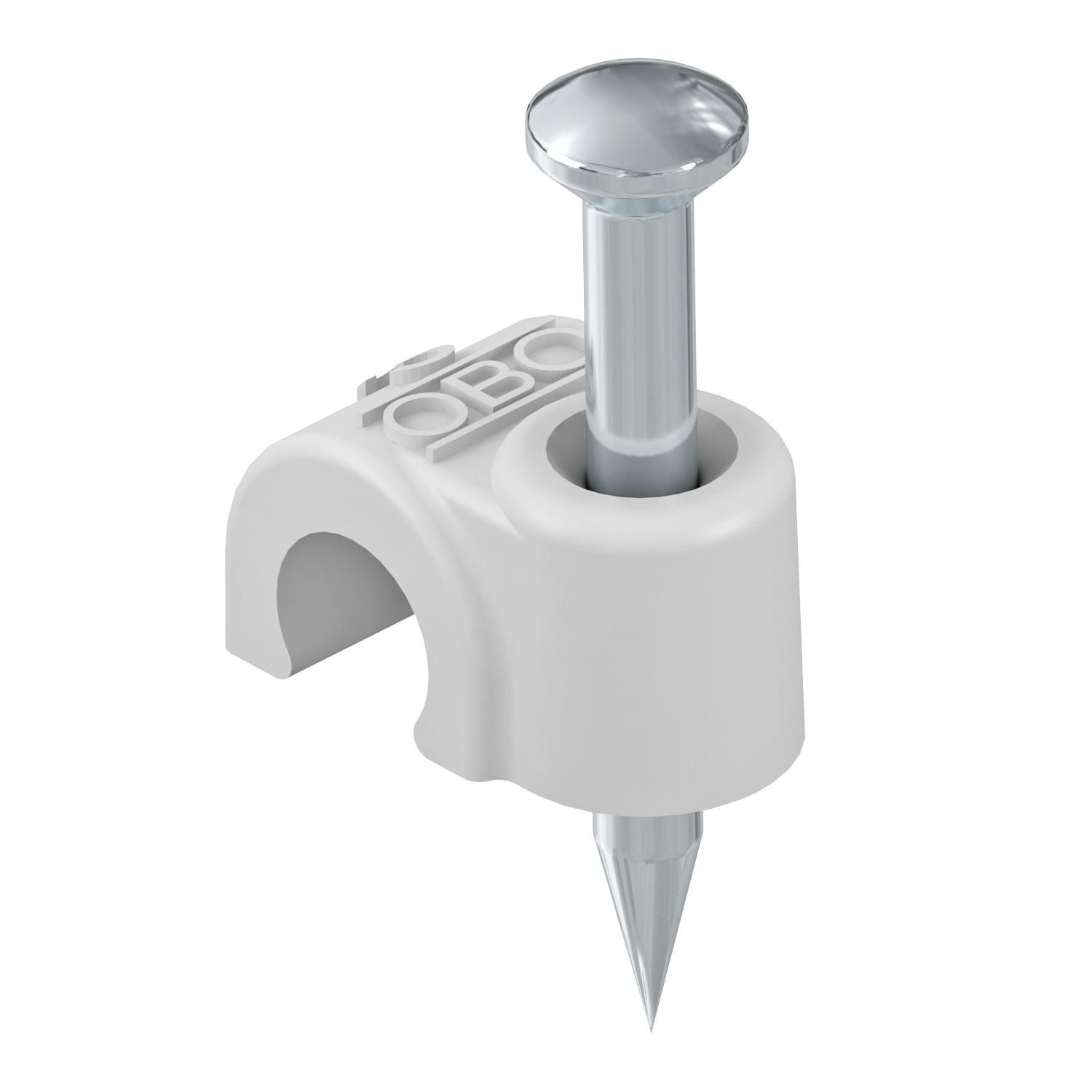

ISO nail clip 2005, white
Item no. 2225379 | EAN 4012195215059
- Product description
-
Product descriptionISO nail clip, short design
-
- Technical data
-
Technical data

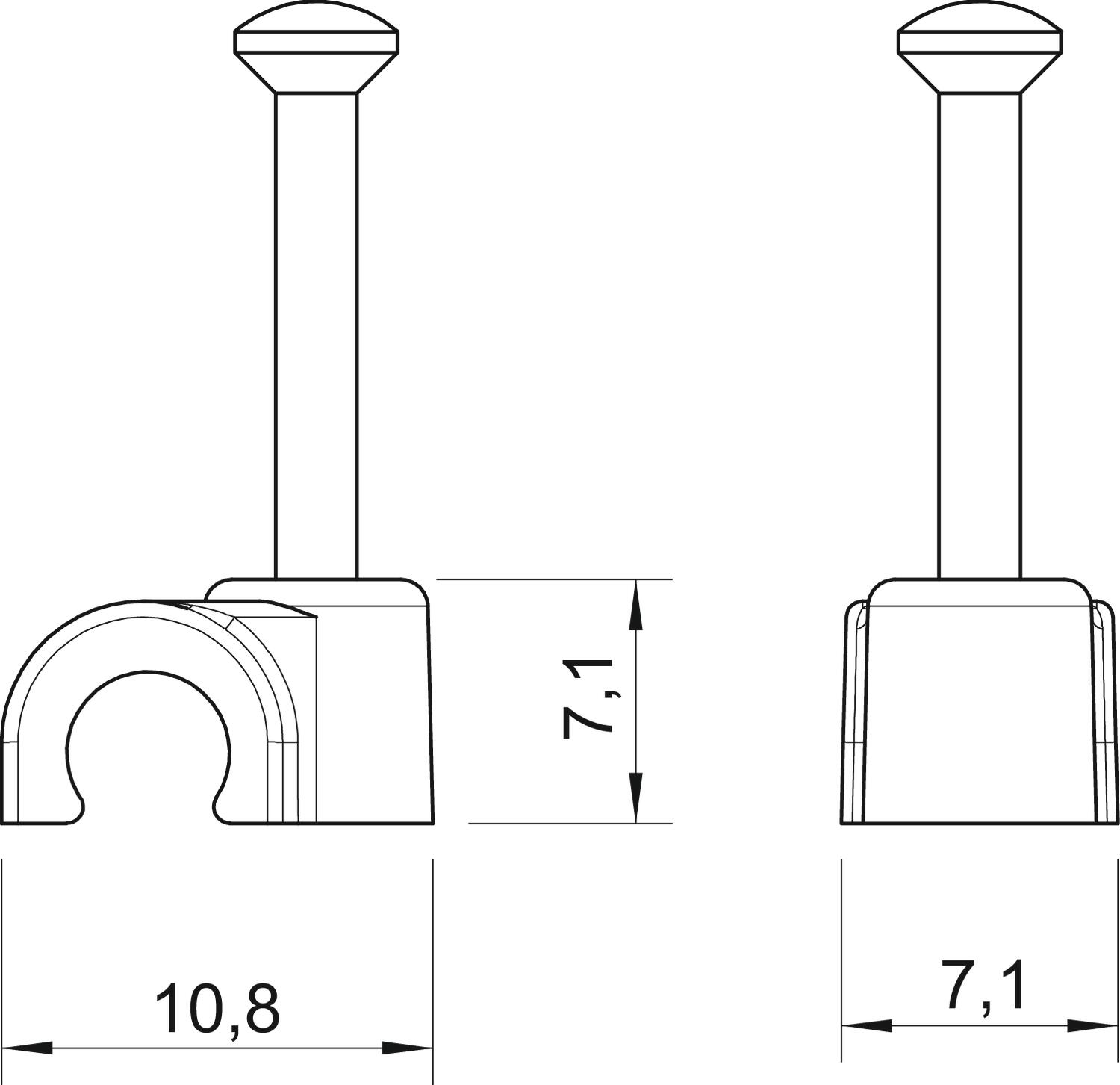

Colour Pure white; RAL 9010 Dimension 5mm, L18 Dimension B 7,1 mm Dimension H 7,1 mm Dimension L 10,8 mm Double clip no for cable diameter 5 mm For nail diameter 2,0x18 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 18 mm Pipe locking no Shape Round (for round conductor) With nail yes - All types
- Downloads
-
Data sheet 2005 18 RW / 2225379 , 0.20MB , pdfEU declaration of conformity 2005 18 RW / 2225379 , 0.06MB , pdfREACH Declaration of conformity 2005 18 RW / 2225379 , 0.12MB , pdfRoHS Declaration of conformity 2005 18 RW / 2225379 , 0.13MB , pdf
