ISO nail clip 2005, white 25 | 5 | 2,0x28 | Pure white; RAL 9010
morepic-1 morepic-2

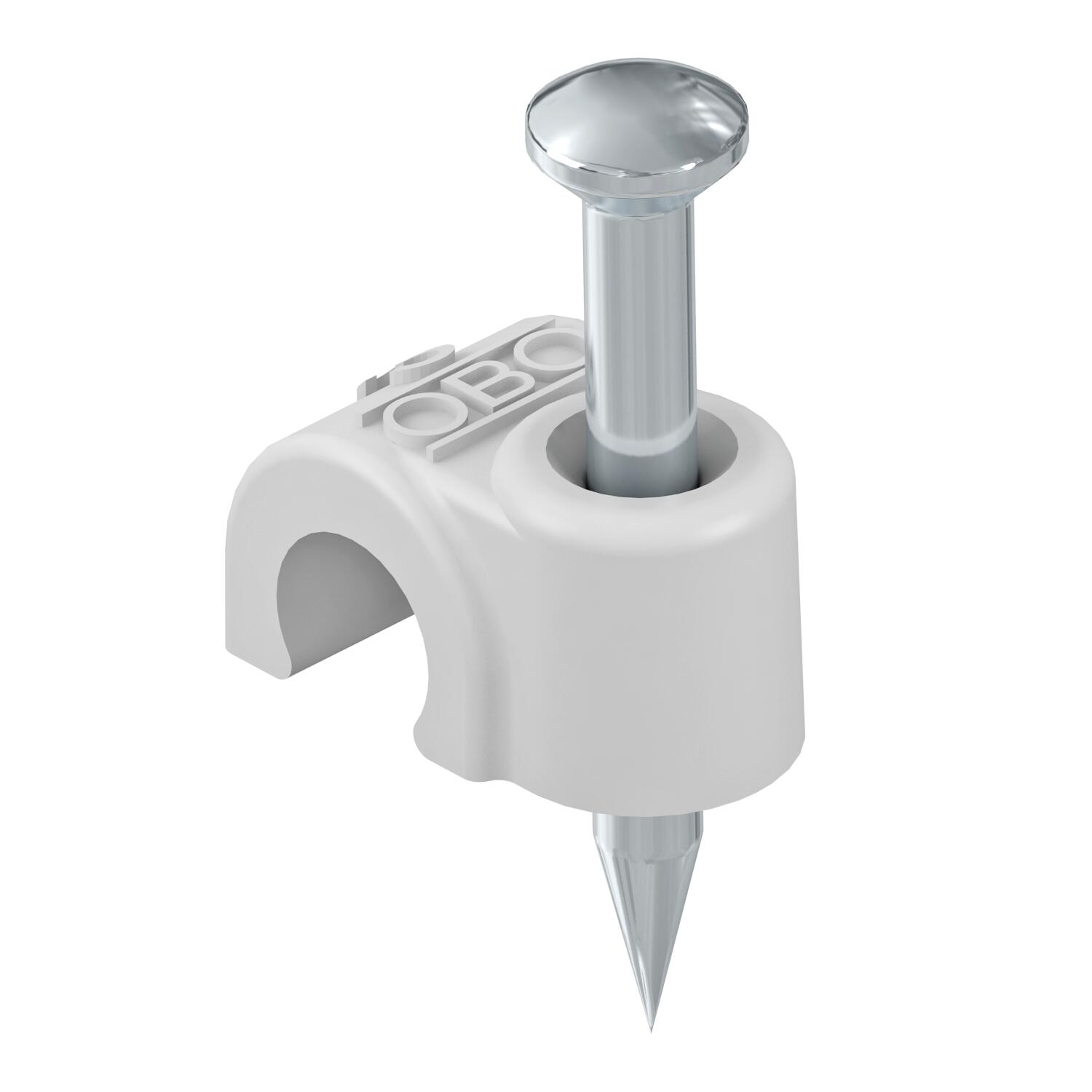

ISO nail clip 2005, white

Item no. 2225344 | EAN 4012195214991

5 mm
Pure white; RAL 9010
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 5mm, L25
Double clip no
for cable diameter 5 mm
For nail diameter 2,0x28
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes

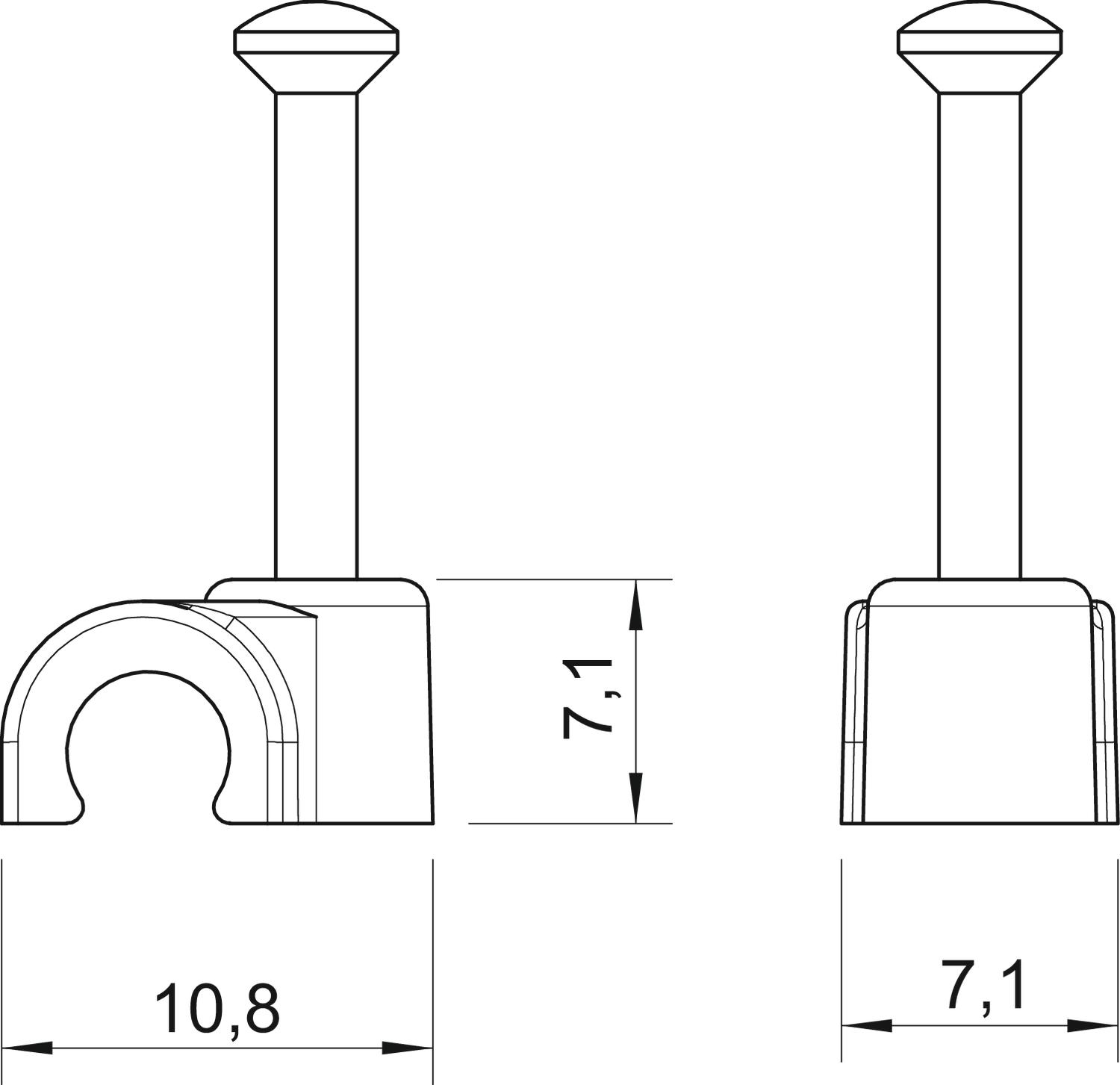

Dimensions

Dimension B 7,1 mm
Dimension H 7,1 mm
Dimension L 10,8 mm
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2005 25 RW 25 mm 5 mm 2,0x28 Pure white; RAL 9010 2225344
100 piece
2005 18 RW 18 mm 5 mm 2,0x18 Pure white; RAL 9010 2225379
100 piece
Downloads

Download

Download

Declaration of conformity 2005 25 RW / 2225344 , 0.06MB , pdf
Download
REACH Declaration of conformity 2005 25 RW / 2225344 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2005 25 RW / 2225344 , 0.13MB , pdf
