ISO nail clip 2008, black 25 | 8 | 2,0x25 | Jet black; RAL 9005
morepic-1 morepic-2

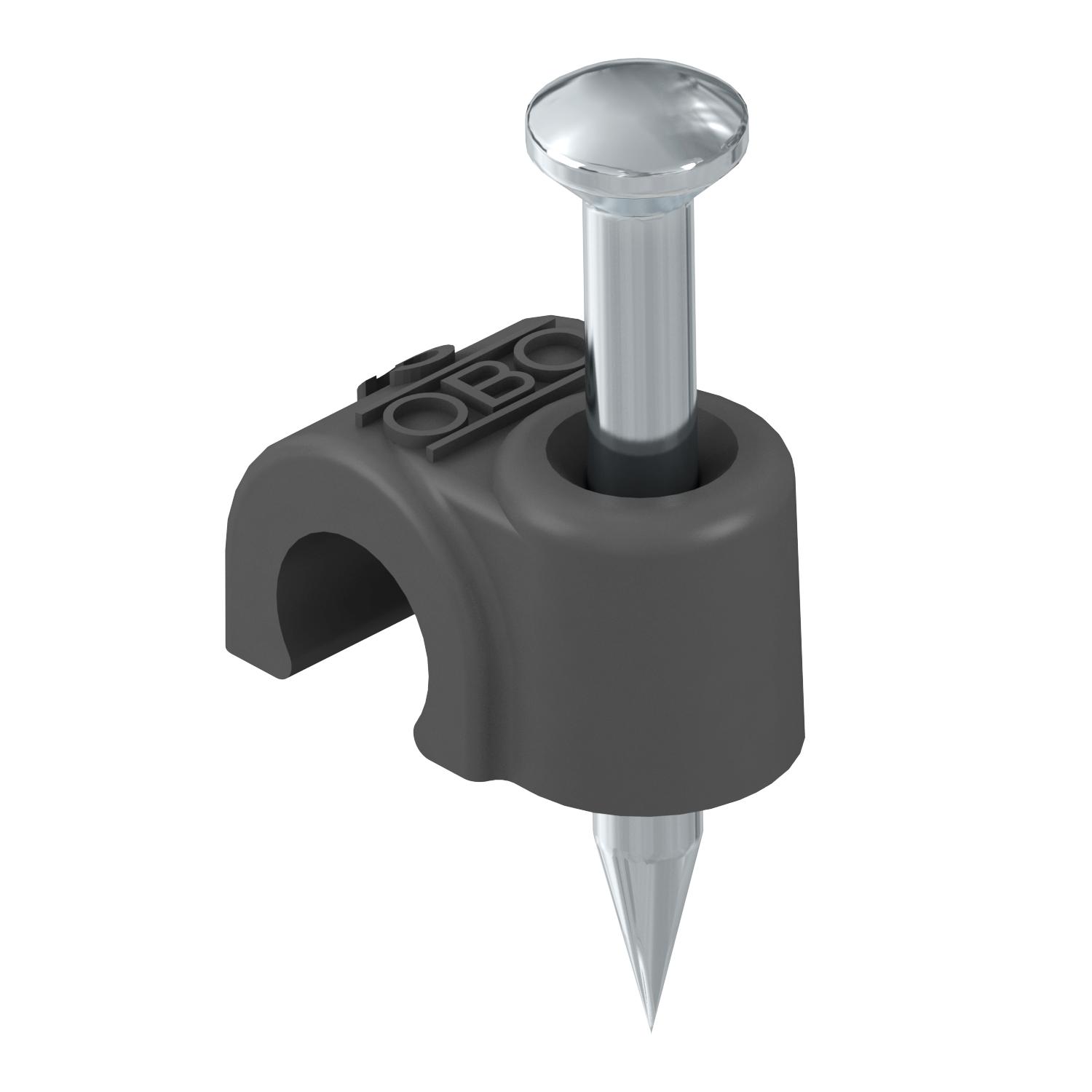

ISO nail clip 2008, black

Item no. 2232170 | EAN 4012195336310

2232170 / 2008 25 SW
25 mm
8 mm
2,0x25
Jet black; RAL 9005
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Jet black; RAL 9005
Dimension 8mm, L25
Double clip no
for cable diameter 8 mm
For nail diameter 2,0x25
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes

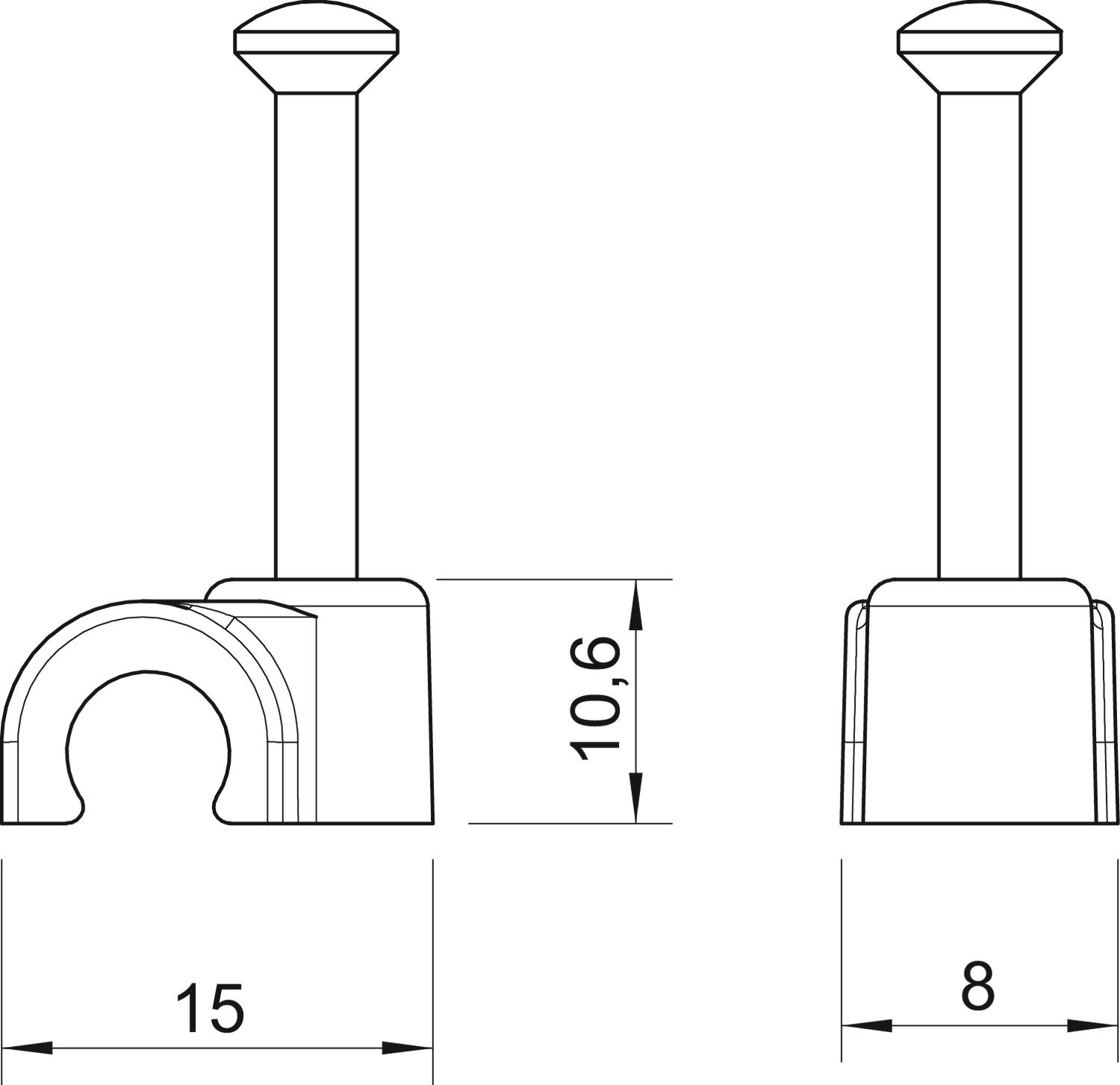

Dimensions

Dimension B 8 mm
Dimension H 10,6 mm
Dimension L 15 mm
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2008 25 SW 25 mm 8 mm 2,0x25 Jet black; RAL 9005 2232170
100 piece
