ISO nail clip 2008, light grey 35 | 8 | 2,0x25 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2008, light grey

Item no. 2232814 | EAN 4012195518778

Item no. / Types

Nail length

for cable diameter	8 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	8mm, L35
Dimension B	8 mm
Dimension H	10,6 mm
Dimension L	15 mm
Double clip	no
for cable diameter	8 mm
For nail diameter	2,0x25
Halogen-free	yes

Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	35 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2008 25 LGR	25 mm	8 mm	2,0x25	Light grey; RAL 7035	2227614	piece	100 piece
2008 35 LGR	35 mm	8 mm	2,0x35	Light grey; RAL 7035	2227622	piece	100 piece
2008 45 LGR	45 mm	8 mm	2,0x45	Light grey; RAL 7035	2227630	piece	100 piece
2008 25 LGR SO	25 mm	8 mm	2,0x25	Light grey; RAL 7035	2232812	piece	6000 piece
2008 35 LGR SO	35 mm	8 mm	2,0x25	Light grey; RAL 7035	2232814	piece	4500 piece
2008 45 LGR SO	45 mm	8 mm	2,0x45	Light grey; RAL 7035	2232816	piece	4200 piece

Downloads

Data sheet 2008 35 LGR SO / 2232814 , 0.16MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2008 35 LGR SO / 2232814 , 0.06MB , pdf

Download

Product graphic 2008 35 LGR SO / 2232814, 42.51 kB, jpg

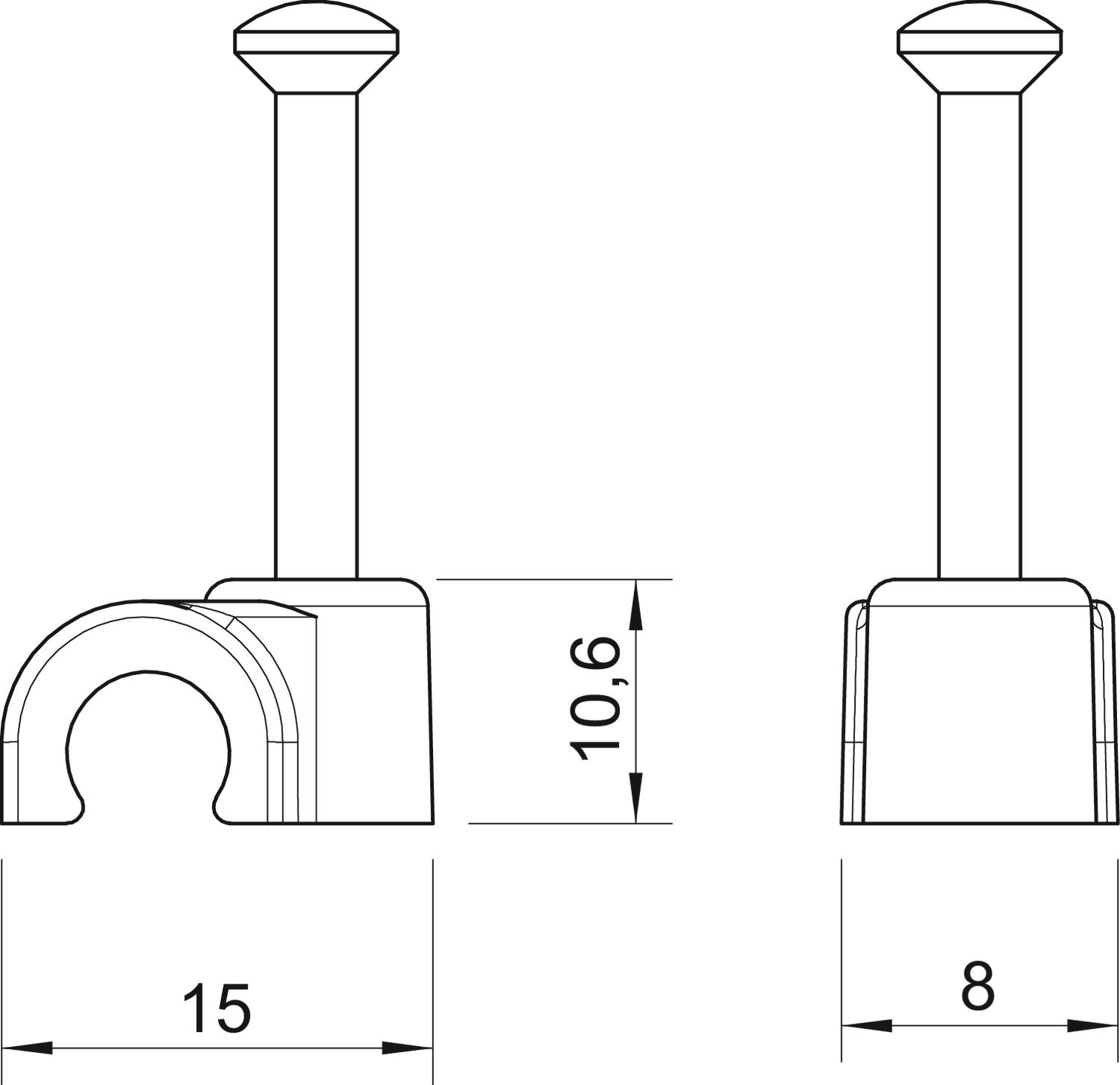

Scale drawing 2008 35 LGR SO / 2232814, 66.06 kB, jpg

2008 35 LGR SO / 2232814
