ISO nail clip 2008, light grey 45 | 8 | 2,0x45 | Light grey; RAL 7035
morepic-1 morepic-2

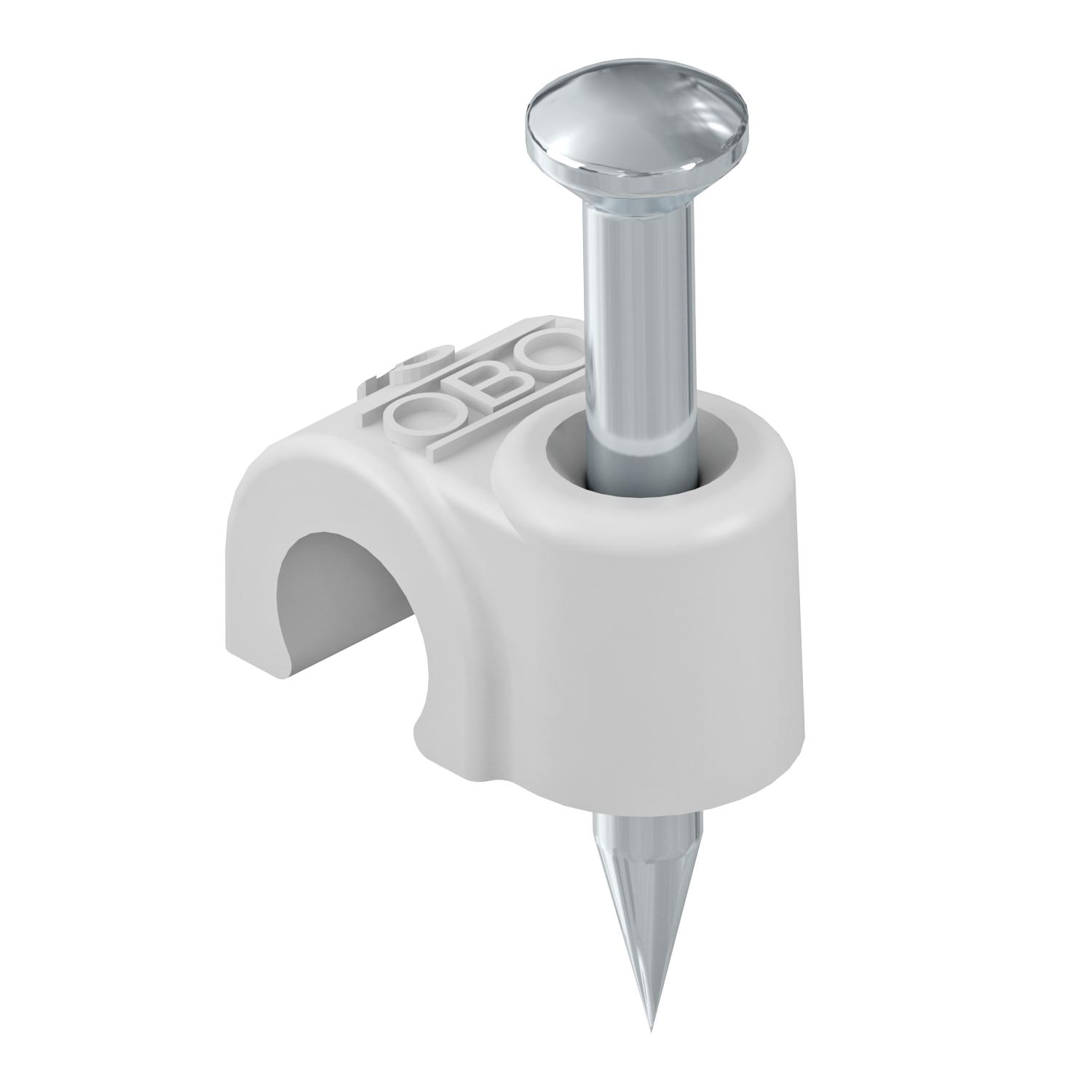

ISO nail clip 2008, light grey

Item no. 2227630 | EAN 4012195218050

8 mm
Light grey; RAL 7035
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 8mm, L45
Double clip no
for cable diameter 8 mm
For nail diameter 2,0x45
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 45 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes

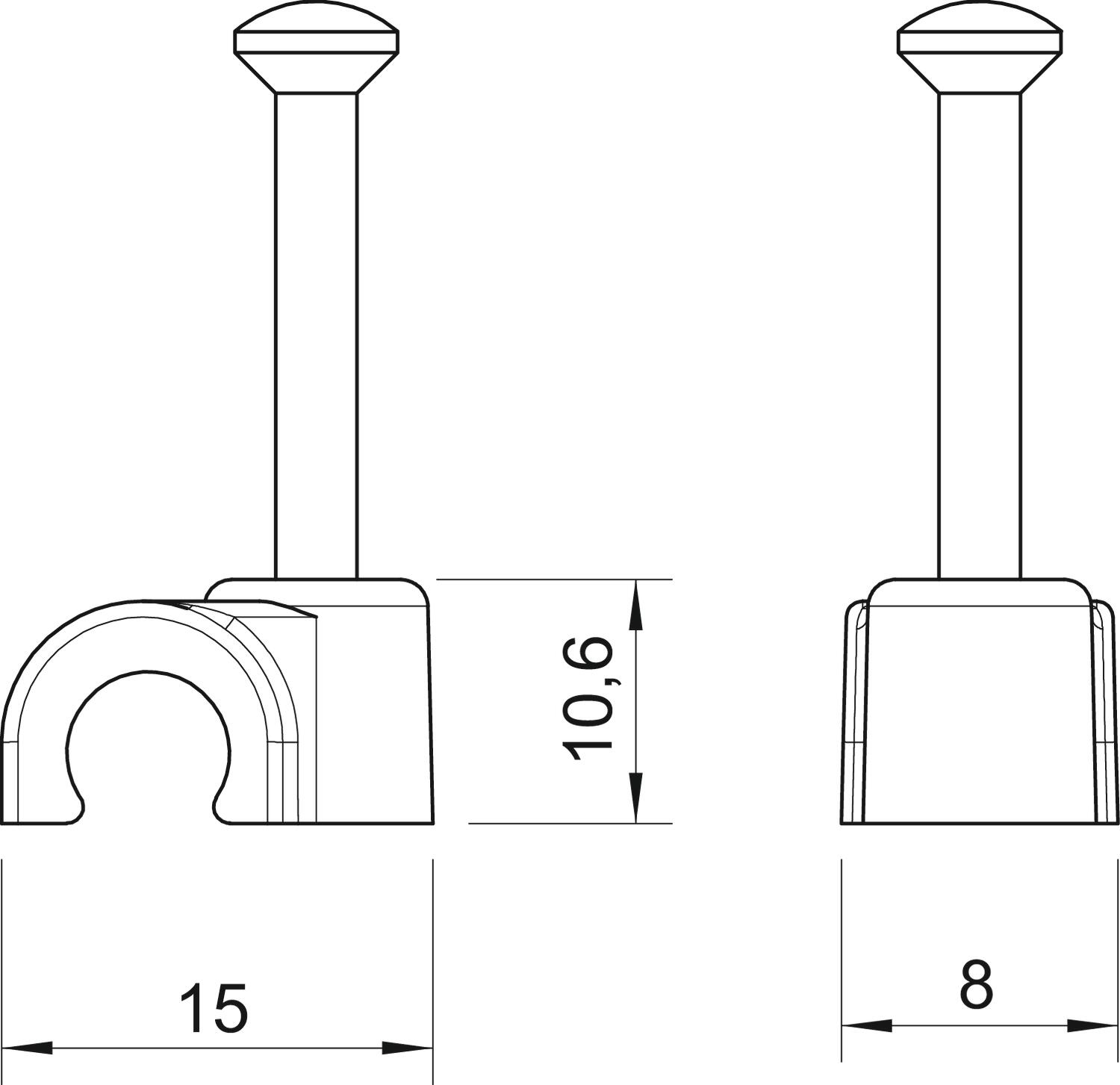

Dimensions

Dimension B 8 mm
Dimension H 10,6 mm
Dimension L 15 mm
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2008 25 LGR 25 mm 8 mm 2,0x25 Light grey; RAL 7035 2227614
100 piece
2008 35 LGR 35 mm 8 mm 2,0x35 Light grey; RAL 7035 2227622
100 piece
2008 45 LGR 45 mm 8 mm 2,0x45 Light grey; RAL 7035 2227630
100 piece
2008 25 LGR SO 25 mm 8 mm 2,0x25 Light grey; RAL 7035 2232812
300 piece
2008 35 LGR SO 35 mm 8 mm 2,0x25 Light grey; RAL 7035 2232814
300 piece
2008 45 LGR SO 45 mm 8 mm 2,0x45 Light grey; RAL 7035 2232816
300 piece
Downloads

Download

Download

Declaration of conformity 2008 45 LGR / 2227630 , 0.06MB , pdf
Download

2008 45 LGR / 2227630
