ISO nail clip 2009, black 25 | 9 | 2,0x25 | Jet black; RAL 9005

morepic-1

morepic-2

ISO nail clip 2009, black

Item no. 2232219 | EAN 4012195336198

Item no. / Types	2232219 / 2009 25 SW

Nail length	25 mm

for cable diameter	9 mm

For nail diameter	2,0x25

Colour	Jet black; RAL 9005

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Jet black; RAL 9005
Dimension	9mm, L25
Dimension B	8 mm
Dimension H	11,6 mm
Dimension L	16,1 mm
Double clip	no
for cable diameter	9 mm
For nail diameter	2,0x25
Halogen-free	yes

Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	25 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2009 25 SW	25 mm	9 mm	2,0x25	Jet black; RAL 9005	2232219	piece	100 piece

Downloads

Data sheet 2009 25 SW / 2232219 , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2009 25 SW / 2232219 , 0.06MB , pdf

Download

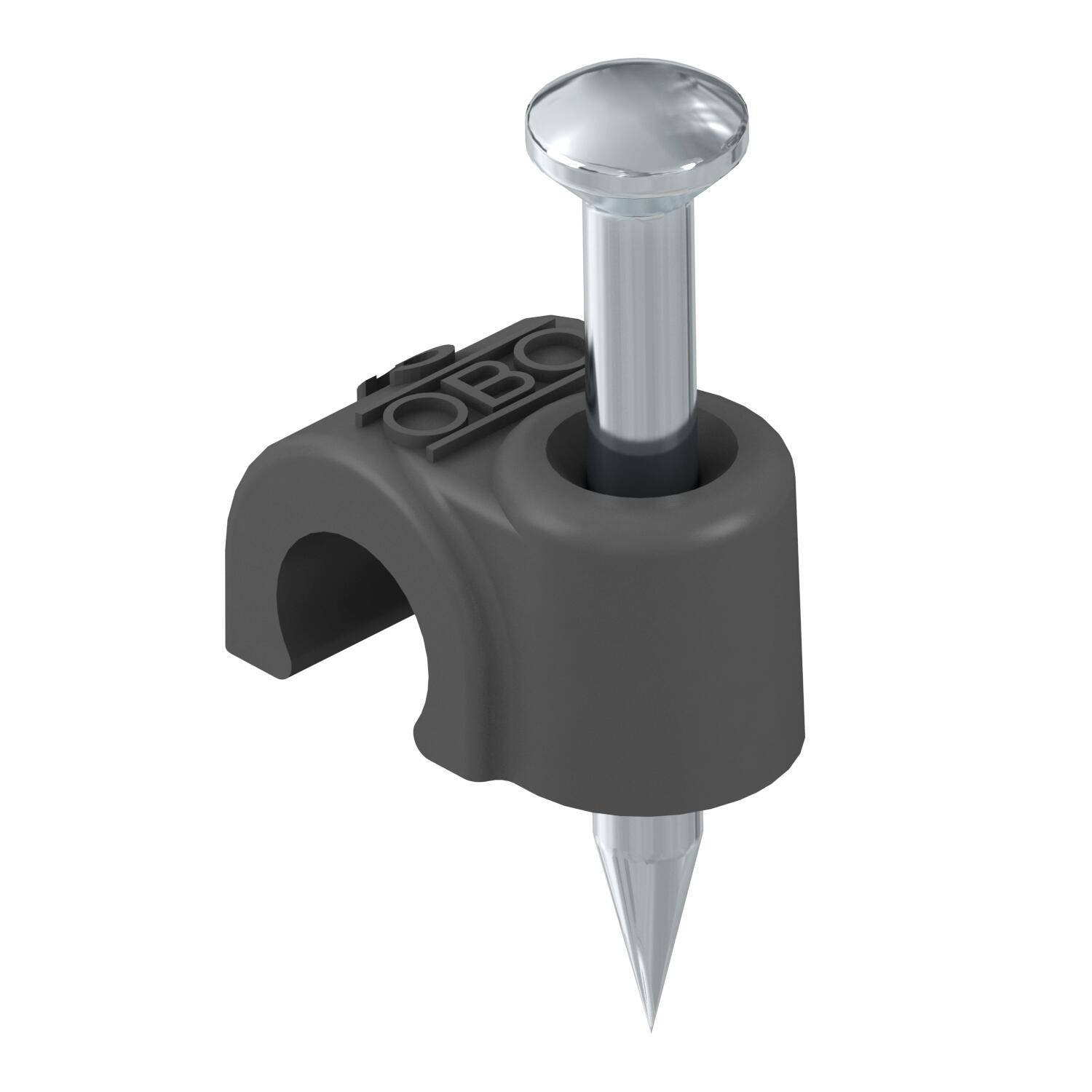

Product graphic 2009 25 SW / 2232219, 46.07 kB, jpg

Scale drawing 2009 25 SW / 2232219, 66.35 kB, jpg

2009 25 SW / 2232219
