ISO nail clip 2009, light grey 35 | 9 | 2,0x35 | Light grey; RAL 7035
morepic-1 morepic-2

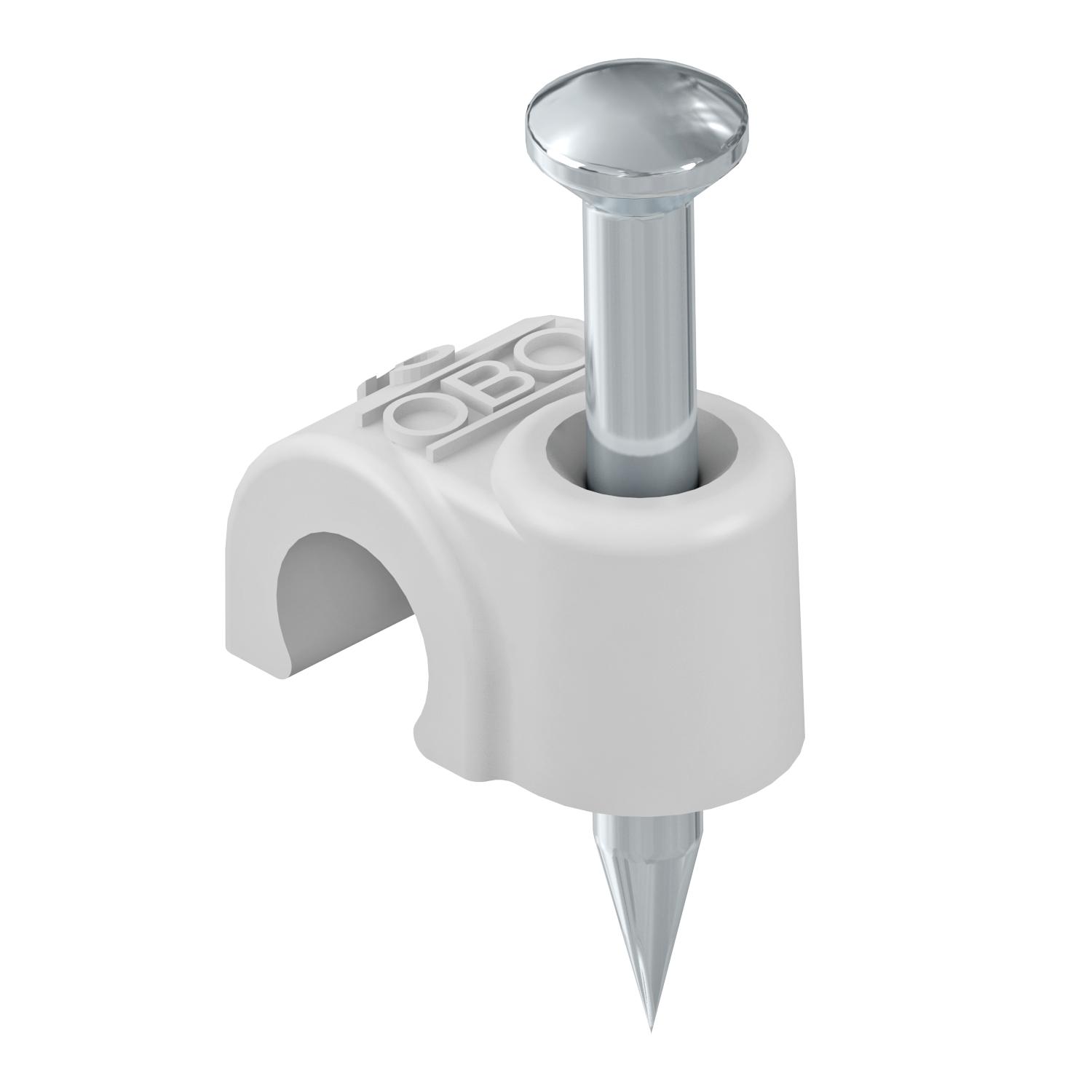

ISO nail clip 2009, light grey

Item no. 2227738 | EAN 4012195218234

9 mm
Light grey; RAL 7035
Product description
Product description
ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

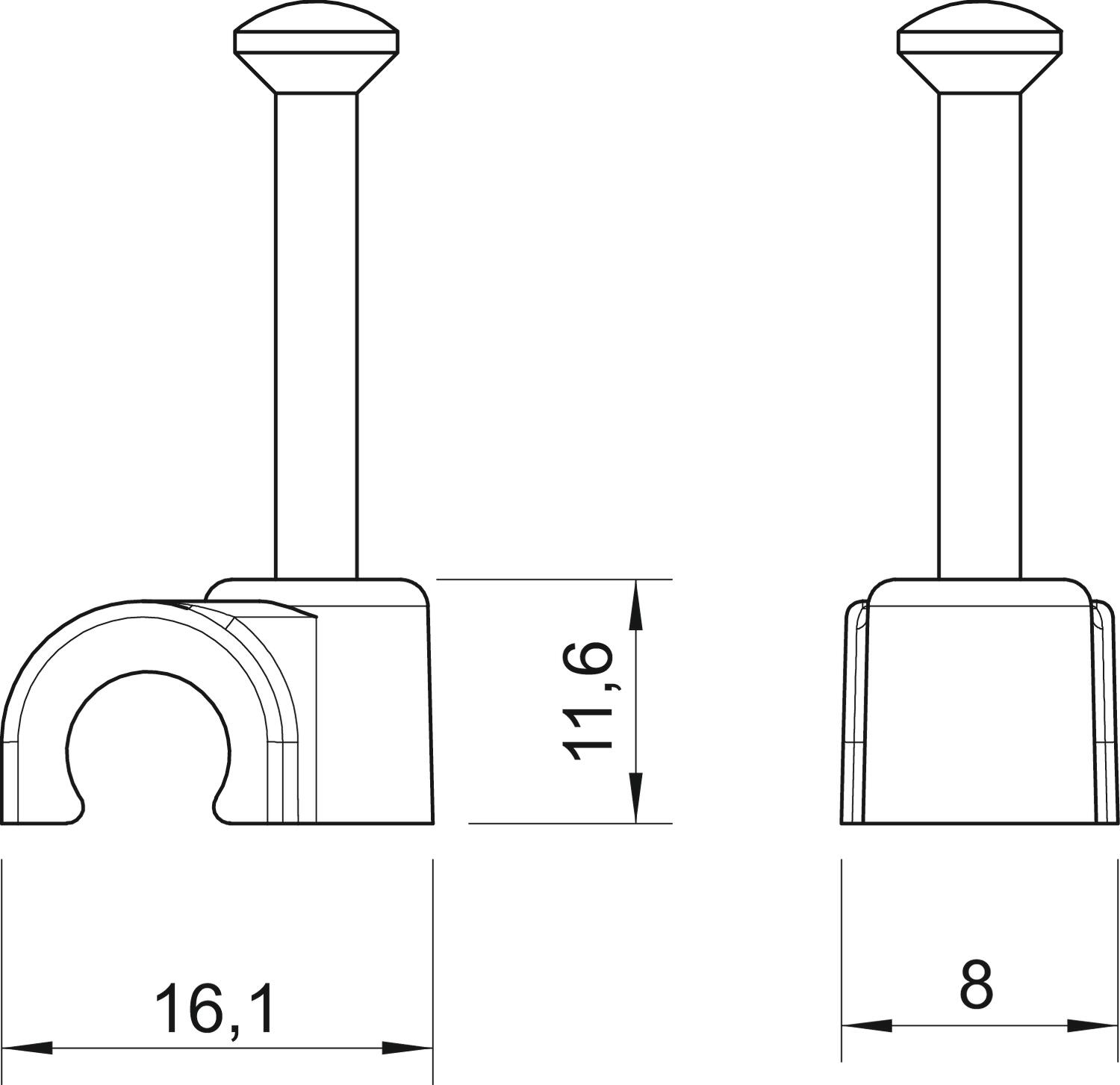

Dimension 9mm, L35
Dimension B 8 mm
Dimension H 11,6 mm
Dimension L 16,1 mm
Double clip no
for cable diameter 9 mm
For nail diameter 2,0x35
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 35 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2009 25 LGR 25 mm 9 mm 2,0x25 Light grey; RAL 7035 2227711
100 piece
2009 35 LGR 35 mm 9 mm 2,0x35 Light grey; RAL 7035 2227738
100 piece
2009 45 LGR 45 mm 9 mm 2,0x45 Light grey; RAL 7035 2227746
100 piece
2009 35 LGR SP 35 mm 9 mm 2,0x35 Light grey; RAL 7035 2227762
200 piece
2009 45 LGR SP 45 mm 9 mm 2,0x45 Light grey; RAL 7035 2227797
200 piece
2009 25 LGR SO 25 mm 9 mm 2,0x25 Light grey; RAL 7035 2232820
4500 piece
2009 35 LGR SO 35 mm 9 mm 2,0x35 Light grey; RAL 7035 2232822
4500 piece
2009 45 LGR SO 45 mm 9 mm 2,0x45 Light grey; RAL 7035 2232824
3600 piece
Downloads

Download

Download

EU declaration of conformity 2009 35 LGR / 2227738 , 0.06MB , pdf
