- Product description
-

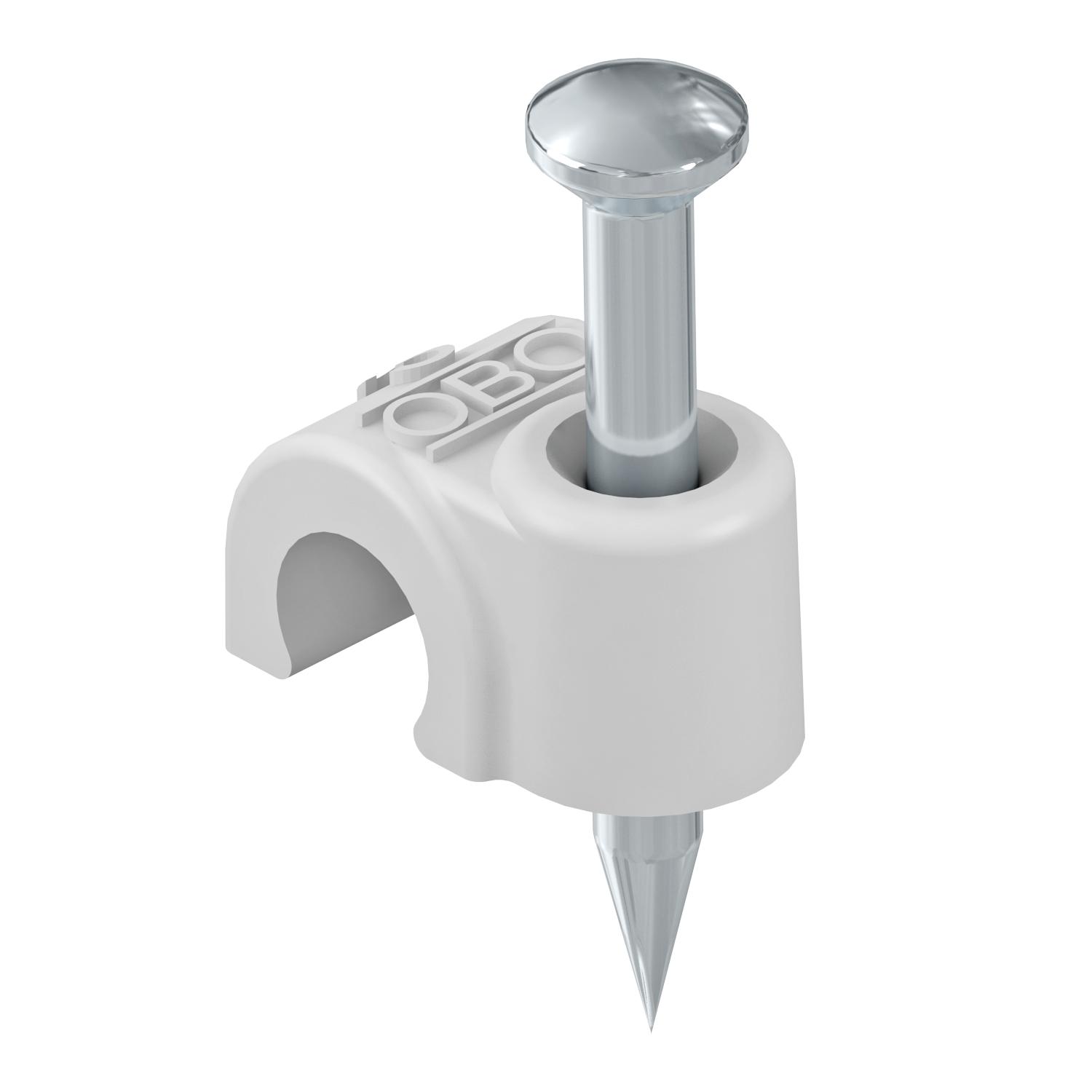

Product descriptionISO nail clip, short design
- Technical data
-
Technical data

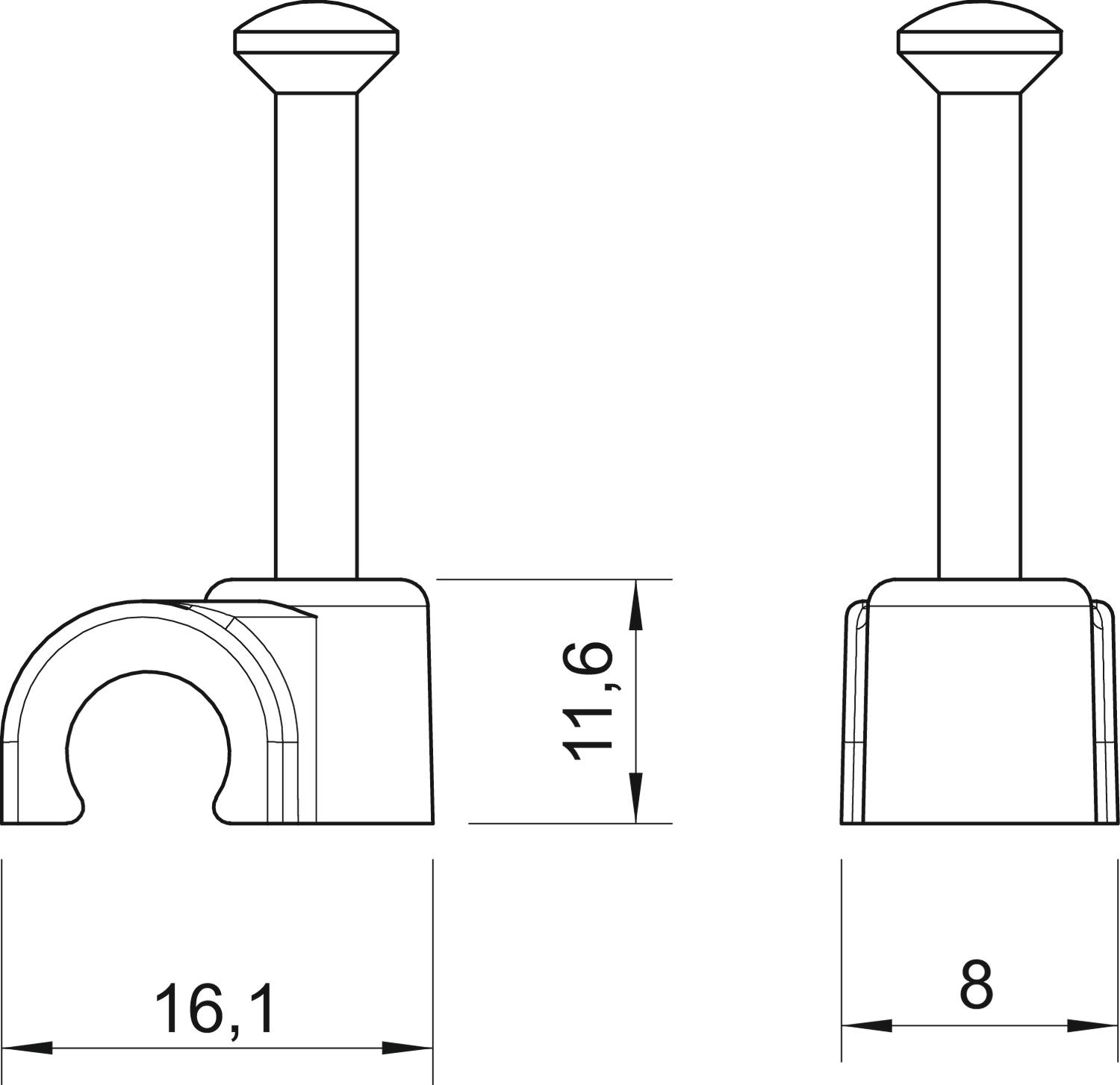

Colour Light grey; RAL 7035 Dimension 9mm, L35 Dimension B 8 mm Dimension H 11,6 mm Dimension L 16,1 mm Double clip no for cable diameter 9 mm For nail diameter 2,0x35 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 35 mm Pipe locking no Shape Round (for round conductor) Transparent no With nail yes - All types
-
All types
- Downloads
-
Data sheet 2009 35 LGR SP / 2227762 , 0.16MB , pdfEU declaration of conformity 2009 35 LGR SP / 2227762 , 0.06MB , pdf
