ISO nail clip 2009, pure white

Item no. 2225719 | EAN 4012195215776

9 mm
Pure white; RAL 9010
Product description
Product description

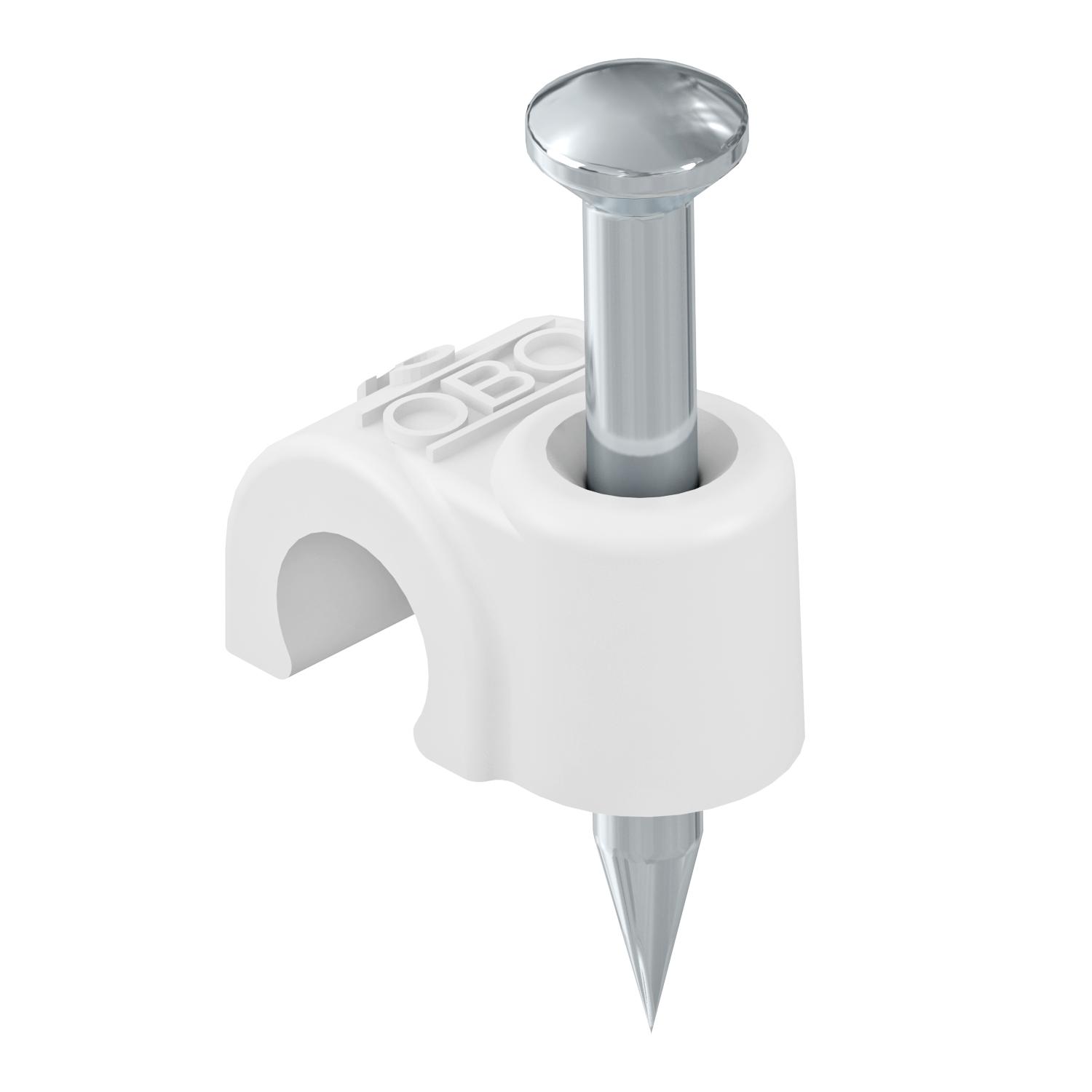

ISO nail clip, short design.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010

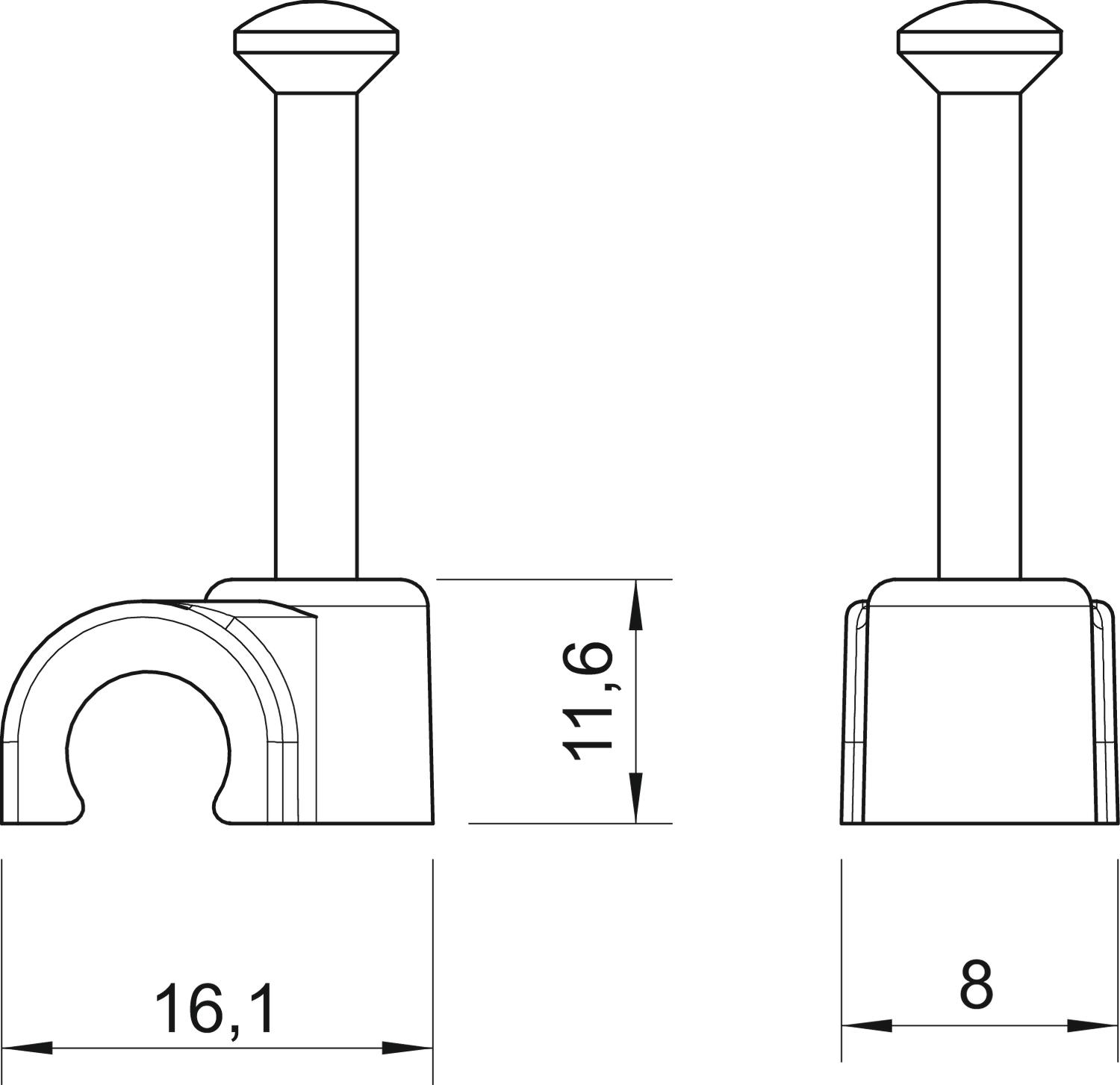

Dimension 9mm, L25
Dimension B 8 mm
Dimension H 11,6 mm
Dimension L 16,1 mm
Double clip no
for cable diameter 9 mm
For nail diameter 2,0x25
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2009 25 RW 25 mm 9 mm 2,0x25 Pure white; RAL 9010 2225719
100 piece
2009 35 RW 35 mm 9 mm 2,0x35 Pure white; RAL 9010 2225727
100 piece
