ISO nail clip 2010, light grey 35 | 10 | 2,0x35 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2010, light grey

Item no. 2232830 | EAN 4012195519256

Item no. / Types

Nail length

for cable diameter	10 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	10mm, L35
Dimension B	8 mm
Dimension H	12,7 mm
Dimension L	17,7 mm
Double clip	no
for cable diameter	10 mm
For nail diameter	2,0x35
Halogen-free	yes

Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	35 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2010 25 LGR	25 mm	10 mm	2,0x25	Light grey; RAL 7035	2227800	piece	100 piece
2010 35 LGR	35 mm	10 mm	2,0x35	Light grey; RAL 7035	2227819	piece	100 piece
2010 45 LGR	45 mm	10 mm	2,0x45	Light grey; RAL 7035	2227827	piece	100 piece
2010 35 LGR SO	35 mm	10 mm	2,0x35	Light grey; RAL 7035	2232830	piece	3000 piece
2010 45 LGR SO	45 mm	10 mm	2,0x45	Light grey; RAL 7035	2232834	piece	3000 piece

Downloads

Data sheet 2010 35 LGR SO / 2232830 , 0.18MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2010 35 LGR SO / 2232830 , 0.06MB , pdf

Download

Product graphic 2010 35 LGR SO / 2232830, 42.51 kB, jpg

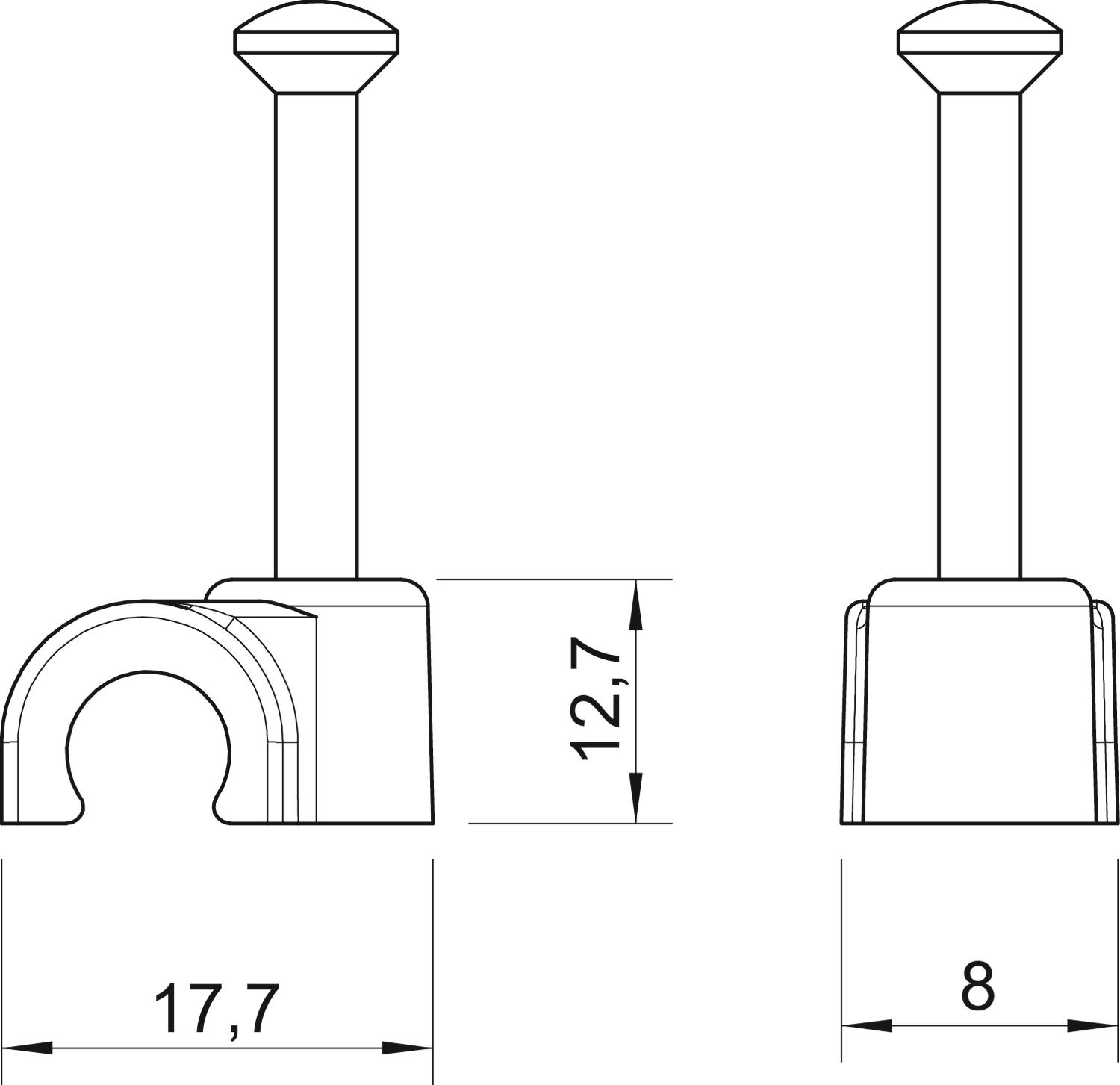

Scale drawing 2010 35 LGR SO / 2232830, 66.08 kB, jpg

2010 35 LGR SO / 2232830
