ISO nail clip 2011, light grey 35 | 11 | 2,0x35 | Light grey; RAL 7035
morepic-1 morepic-2

ISO nail clip 2011, light grey

Item no. 2227916 | EAN 4012195218593

11 mm
Light grey; RAL 7035
Product description
Product description

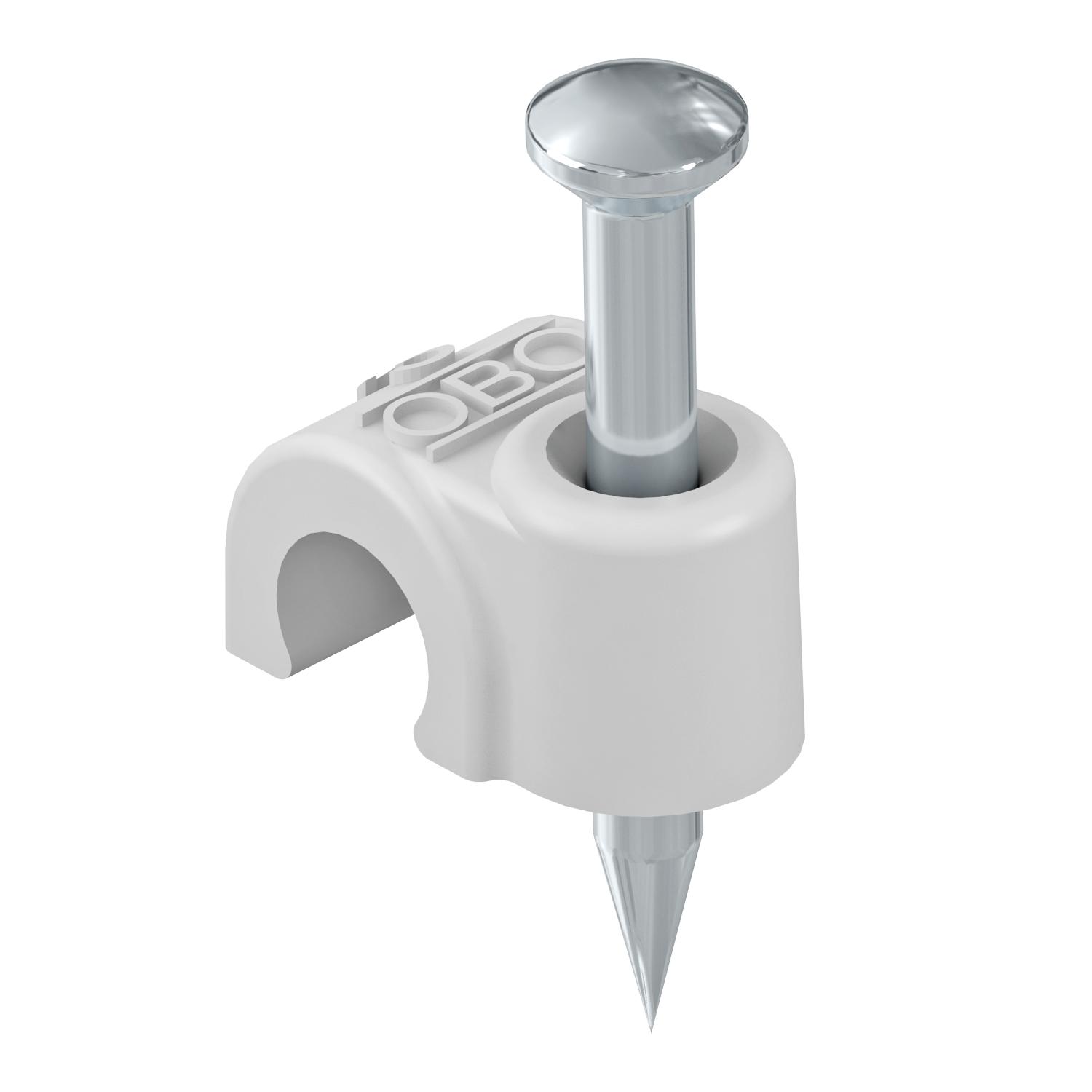

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

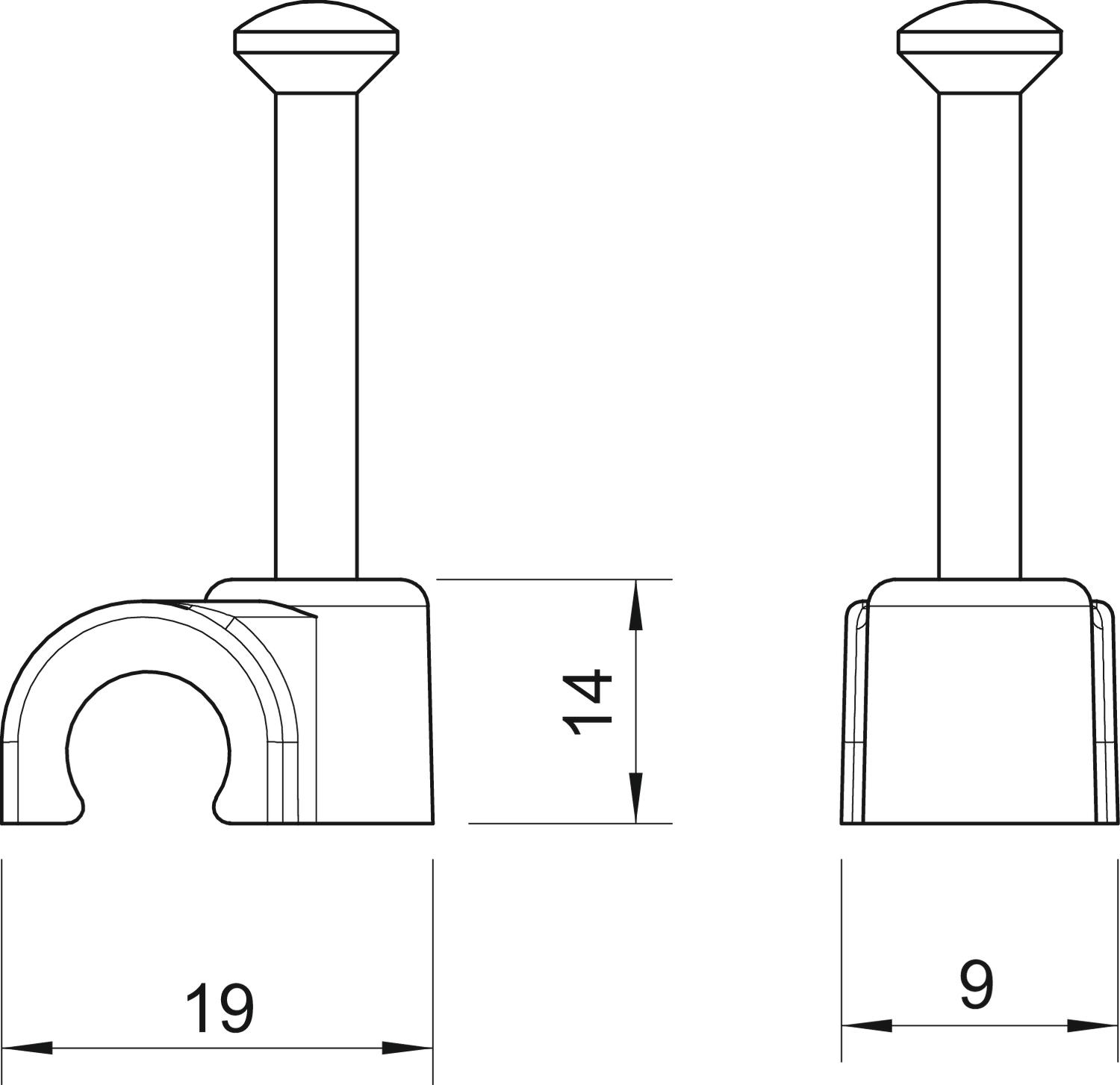

Dimension 11mm, L35
Dimension B 9 mm
Dimension H 14 mm
Dimension L 19 mm
Double clip no
for cable diameter 11 mm
For nail diameter 2,0x35
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 35 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2011 35 LGR 35 mm 11 mm 2,0x35 Light grey; RAL 7035 2227916
100 piece
2011 45 LGR 45 mm 11 mm 2,0x45 Light grey; RAL 7035 2227924
100 piece
Downloads

Download

Download

EU declaration of conformity 2011 35 LGR / 2227916 , 0.06MB , pdf
Download

2011 35 LGR / 2227916
