ISO nail clip 2011, light grey 45 | 11 | 2,0x45 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2011, light grey

Item no. 2227924 | EAN 4012195218654

Item no. / Types

Nail length

for cable diameter	11 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	11mm, L45
Dimension B	9 mm
Dimension H	14 mm
Dimension L	19 mm
Double clip	no
for cable diameter	11 mm
For nail diameter	2,0x45
Halogen-free	yes

Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	45 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2011 35 LGR	35 mm	11 mm	2,0x35	Light grey; RAL 7035	2227916	piece	100 piece
2011 45 LGR	45 mm	11 mm	2,0x45	Light grey; RAL 7035	2227924	piece	100 piece

Downloads

Data sheet 2011 45 LGR / 2227924 , 0.16MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2011 45 LGR / 2227924 , 0.06MB , pdf

Download

Product graphic 2011 45 LGR / 2227924, 42.51 kB, jpg

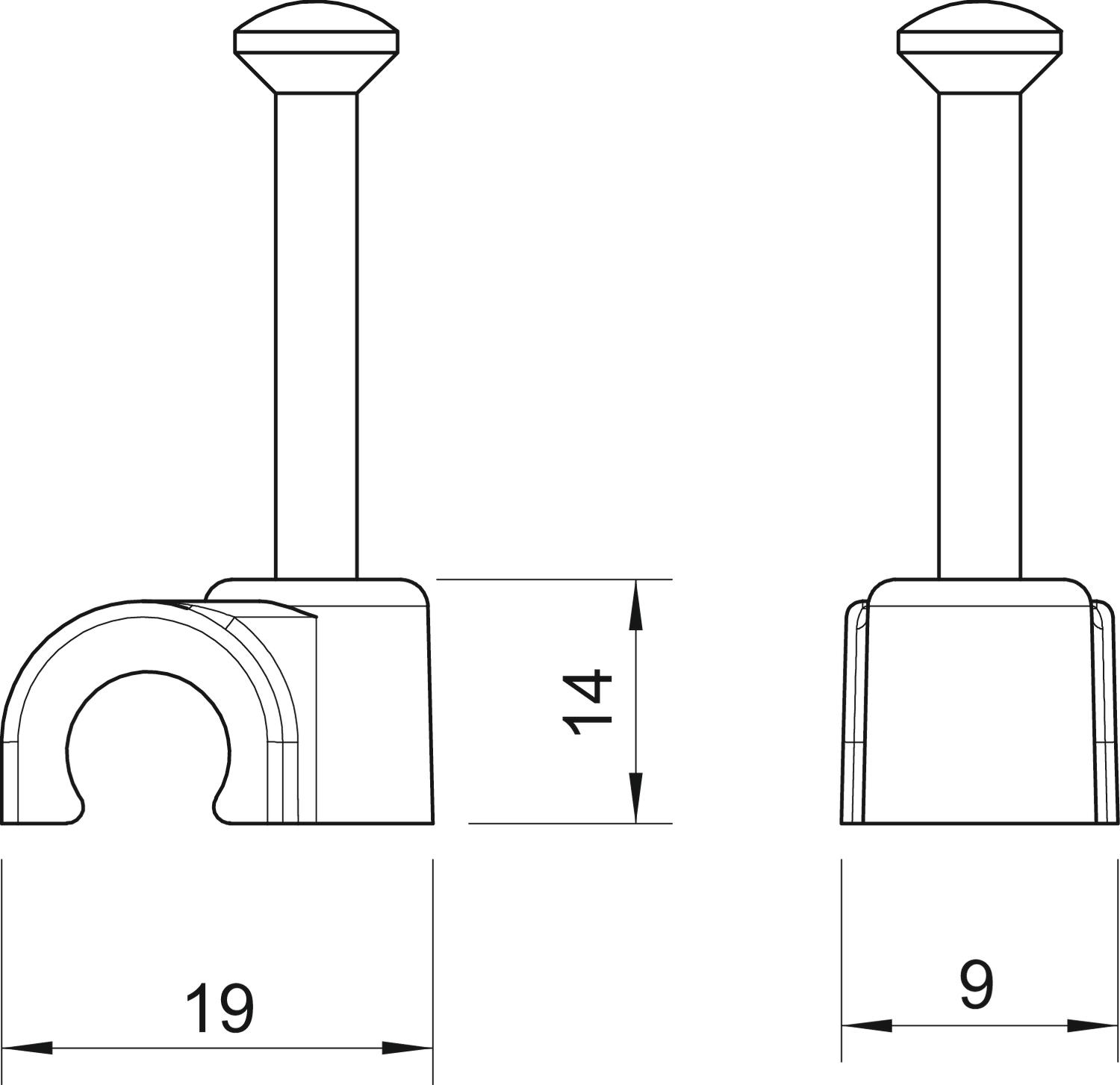

Scale drawing 2011 45 LGR / 2227924, 64.53 kB, jpg

2011 45 LGR / 2227924
