ISO nail clip 2011, pure white 25 | 11 | 2,0x25 | Pure white; RAL 9010

morepic-1

morepic-2

ISO nail clip 2011, pure white

Item no. 2225905 | EAN 4012195216070

Item no. / Types

Nail length

for cable diameter	11 mm

For nail diameter

Colour	Pure white; RAL 9010

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	11mm, L25
Dimension B	9 mm
Dimension H	14 mm
Dimension L	19 mm
Double clip	no
for cable diameter	11 mm
For nail diameter	2,0x25

Halogen-free	yes
Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	25 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2011 25 RW	25 mm	11 mm	2,0x25	Pure white; RAL 9010	2225905	piece	100 piece
2011 35 RW	35 mm	11 mm	2,0x35	Pure white; RAL 9010	2225913	piece	100 piece

Downloads

Data sheet 2011 25 RW / 2225905 , 0.16MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2011 25 RW / 2225905 , 0.06MB , pdf

Download

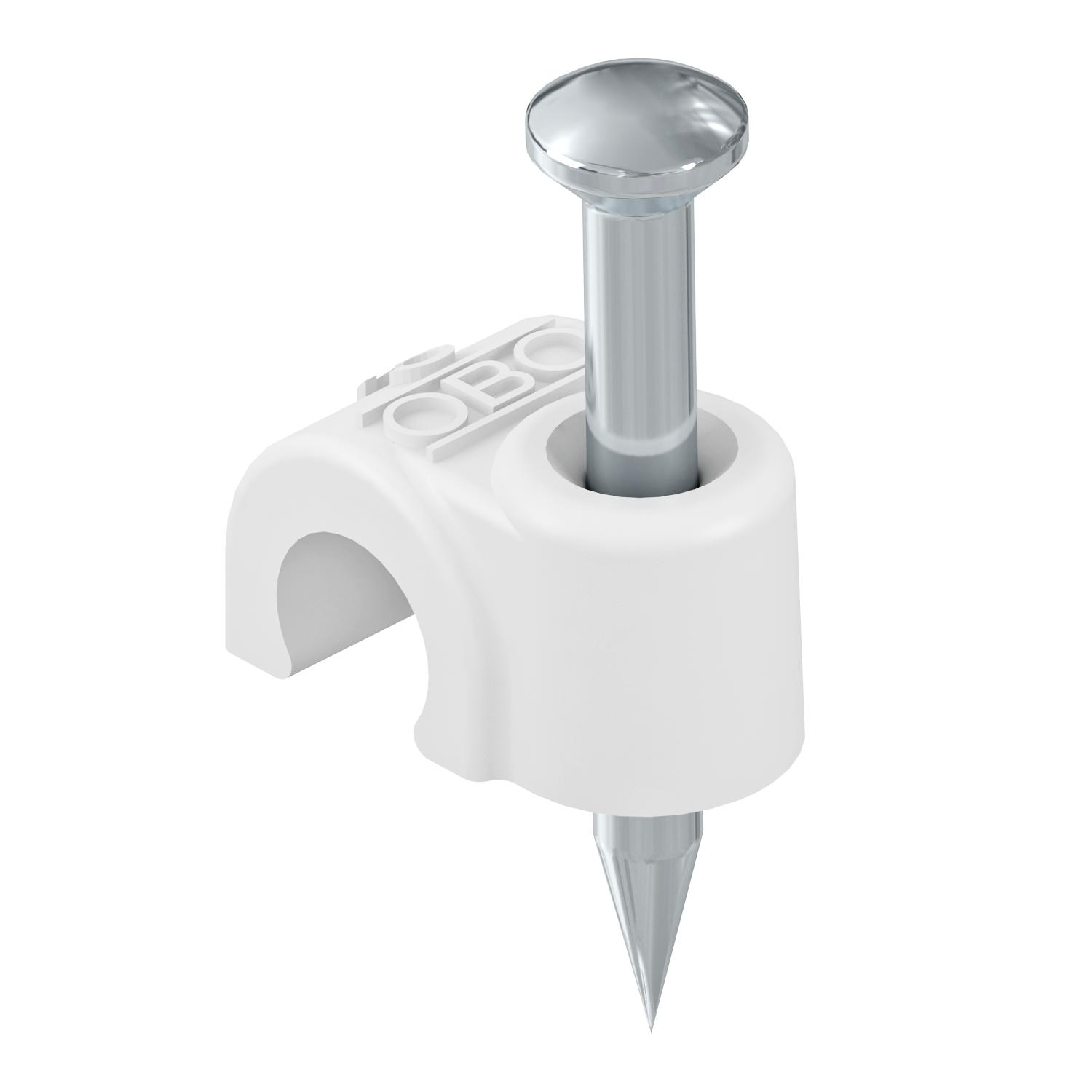

Product graphic 2011 25 RW / 2225905, 39.24 kB, jpg

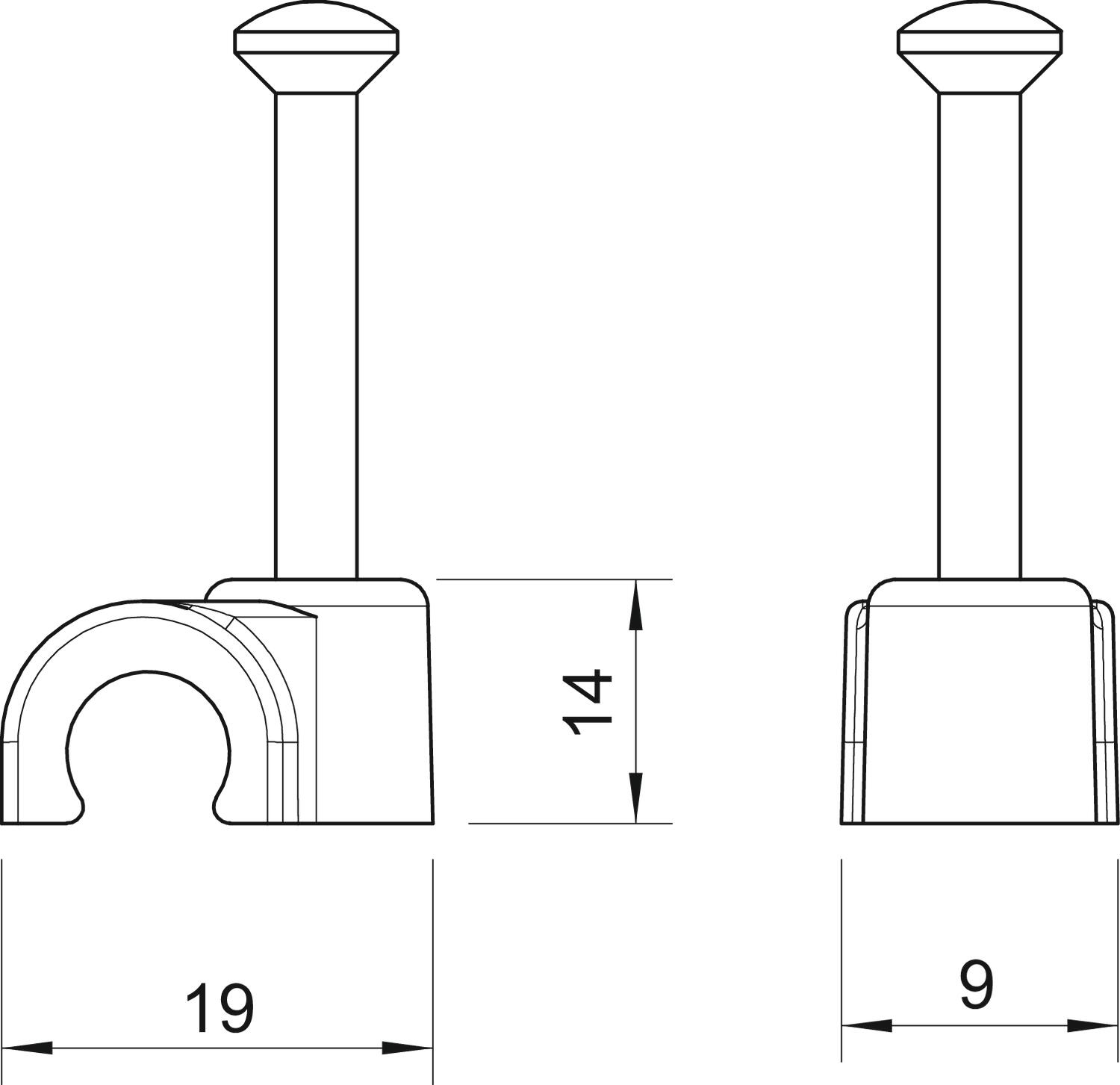

Scale drawing 2011 25 RW / 2225905, 64.53 kB, jpg

2011 25 RW / 2225905
