ISO nail clip 2011, pure white 35 | 11 | 2,0x35 | Pure white; RAL 9010

morepic-1

morepic-2

ISO nail clip 2011, pure white

Item no. 2225913 | EAN 4012195216131

Item no. / Types

Nail length

for cable diameter	11 mm

For nail diameter

Colour	Pure white; RAL 9010

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	11mm, L35
Double clip	no
for cable diameter	11 mm
For nail diameter	2,0x35
Halogen-free	yes
Hardened	yes

Impact-resistant	no
Material	Polypropylene
Nail length	35 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

Dimensions

Dimension B	9 mm
Dimension H	14 mm

Dimension L	19 mm

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2011 25 RW	25 mm	11 mm	2,0x25	Pure white; RAL 9010	2225905	piece	100 piece
2011 35 RW	35 mm	11 mm	2,0x35	Pure white; RAL 9010	2225913	piece	100 piece

Downloads

Data sheet 2011 35 RW / 2225913 , 0.19MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2011 35 RW / 2225913 , 0.06MB , pdf

Download

Product graphic 2011 35 RW / 2225913, 39.24 kB, jpg

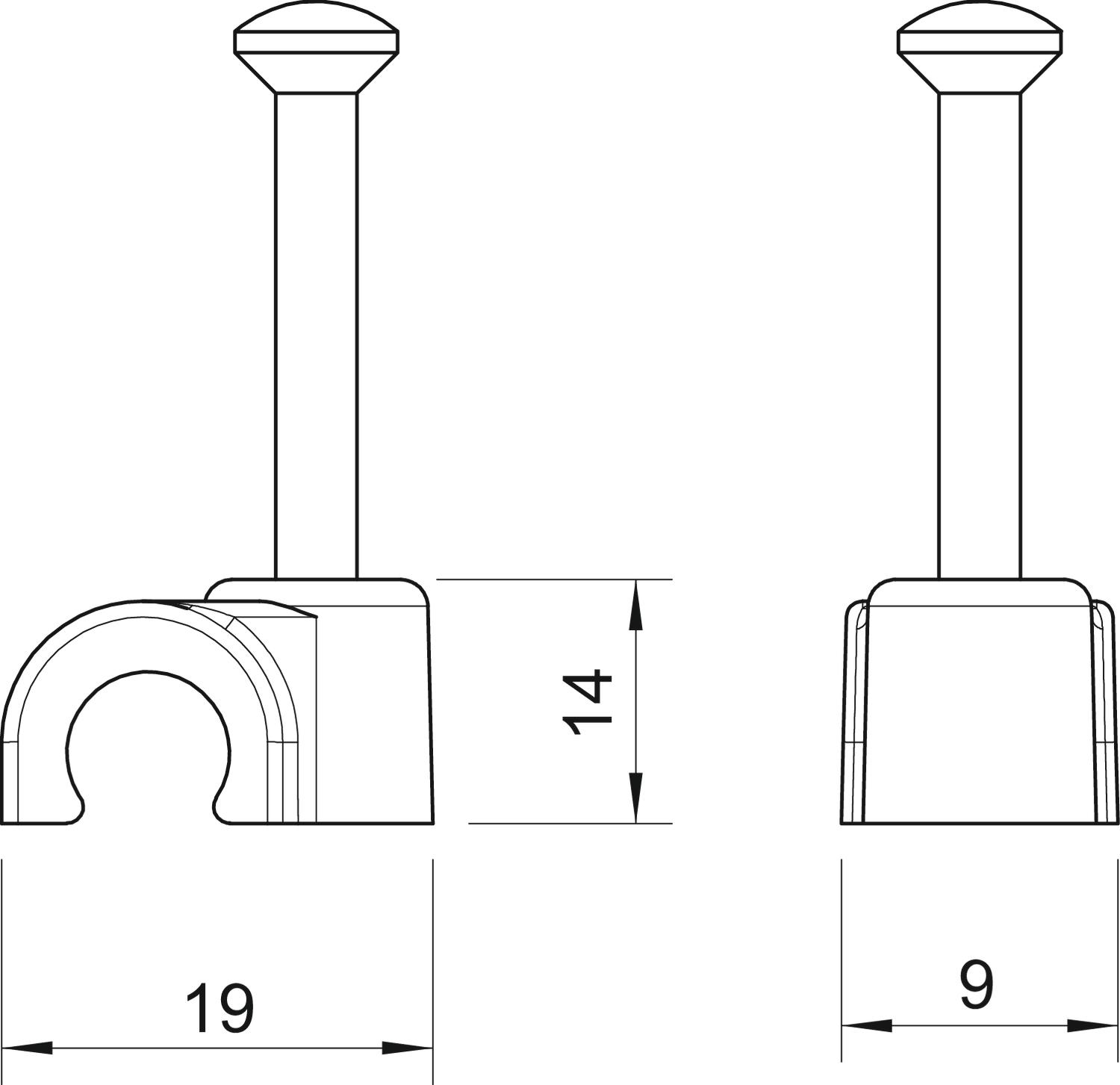

Scale drawing 2011 35 RW / 2225913, 64.53 kB, jpg

2011 35 RW / 2225913
