ISO nail clip 2012, light grey 45 | 12 | 2,0x45 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2012, light grey

Item no. 2232842 | EAN 4012195519430

Item no. / Types

Nail length

for cable diameter	12 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	12mm, L45
Double clip	no
for cable diameter	12 mm
For nail diameter	2,0x45
Halogen-free	yes
Hardened	yes

Impact-resistant	no
Material	Polypropylene
Nail length	45 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

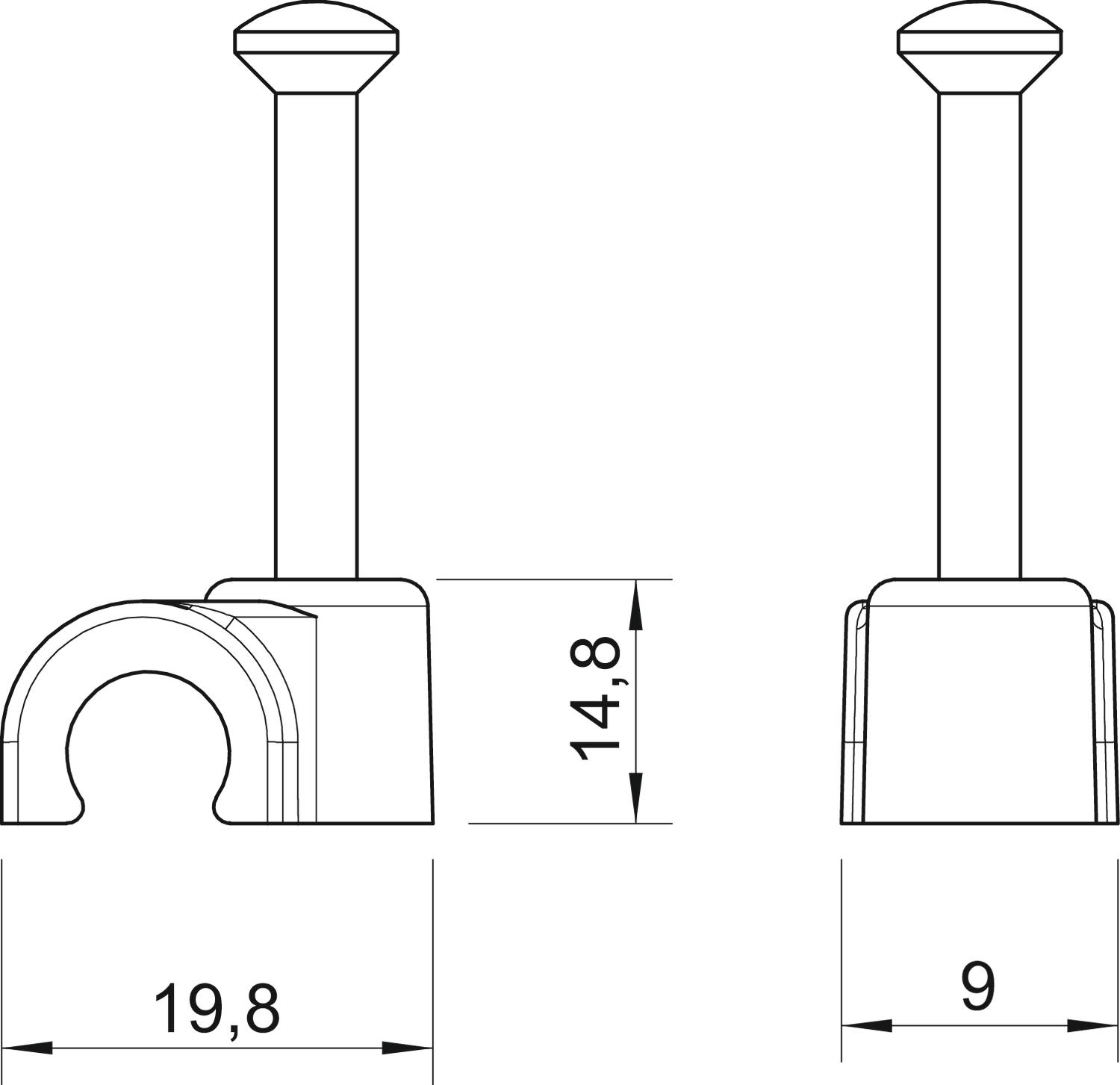

Dimensions

Dimension B	9 mm
Dimension H	14,8 mm

Dimension L	19,8 mm

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2012 35 LGR	35 mm	12 mm	2,0x35	Light grey; RAL 7035	2228025	piece	100 piece
2012 45 LGR	45 mm	12 mm	2,0x45	Light grey; RAL 7035	2228033	piece	100 piece
2012 35 LGR SO	35 mm	12 mm	2,0x35	Light grey; RAL 7035	2232839	piece	150 piece
2012 45 LGR SO	45 mm	12 mm	2,0x45	Light grey; RAL 7035	2232842	piece	150 piece

Downloads

Data sheet 2012 45 LGR SO / 2232842 , 0.20MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2012 45 LGR SO / 2232842 , 0.06MB , pdf

Download

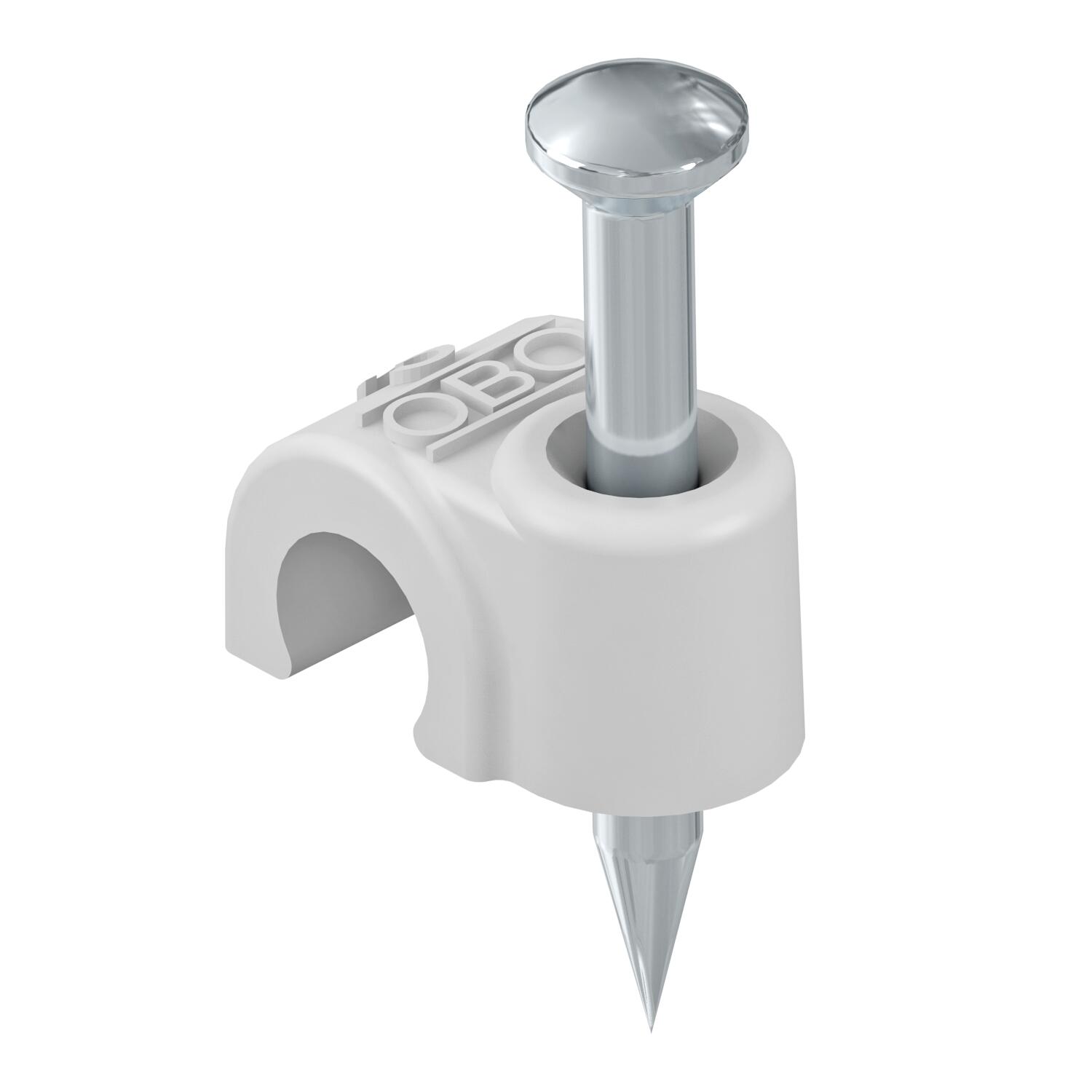

Product graphic 2012 45 LGR SO / 2232842, 42.51 kB, jpg

Scale drawing 2012 45 LGR SO / 2232842, 67.47 kB, jpg

2012 45 LGR SO / 2232842
