ISO nail clip 2012, white 25 | 12 | 2,0x25 | Pure white; RAL 9010

morepic-1

morepic-2

ISO nail clip 2012, white

Item no. 2226014 | EAN 4012195216254

Item no. / Types

Nail length

for cable diameter	12 mm

For nail diameter

Colour	Pure white; RAL 9010

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	12mm, L25
Dimension B	9 mm
Dimension H	14,8 mm
Dimension L	19,8 mm
Double clip	no
for cable diameter	12 mm
For nail diameter	2,0x25

Halogen-free	yes
Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	25 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2012 25 RW	25 mm	12 mm	2,0x25	Pure white; RAL 9010	2226014	piece	100 piece
2012 35 RW	35 mm	12 mm	2,0x35	Pure white; RAL 9010	2226022	piece	100 piece

Downloads

Data sheet 2012 25 RW / 2226014 , 0.16MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2012 25 RW / 2226014 , 0.06MB , pdf

Download

Product graphic 2012 25 RW / 2226014, 39.24 kB, jpg

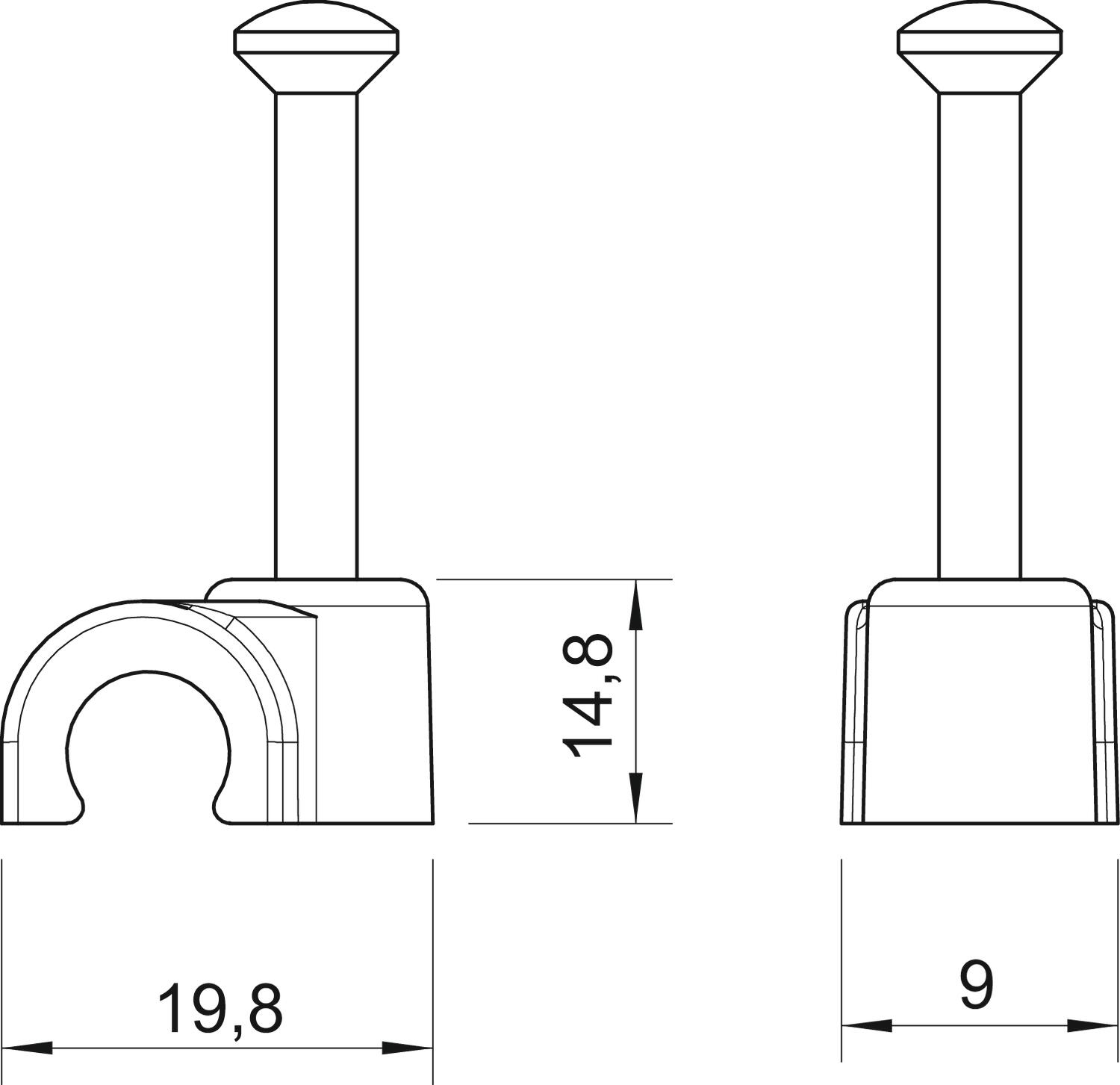

Scale drawing 2012 25 RW / 2226014, 67.37 kB, jpg

2012 25 RW / 2226014
