ISO nail clip 2014, light grey

Item no. 2228122 | EAN 4012195219019

14 mm
Light grey; RAL 7035
Product description
Product description

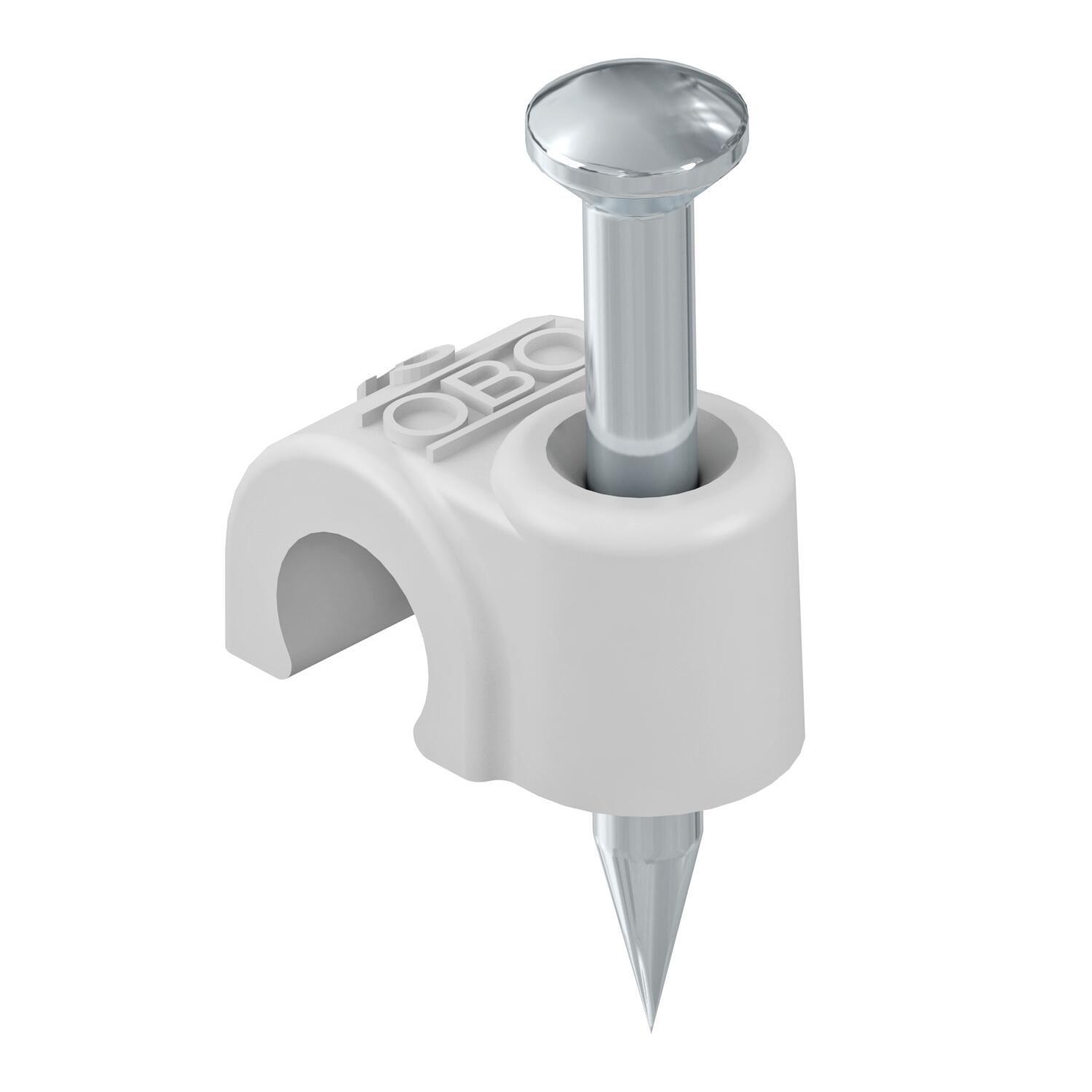

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

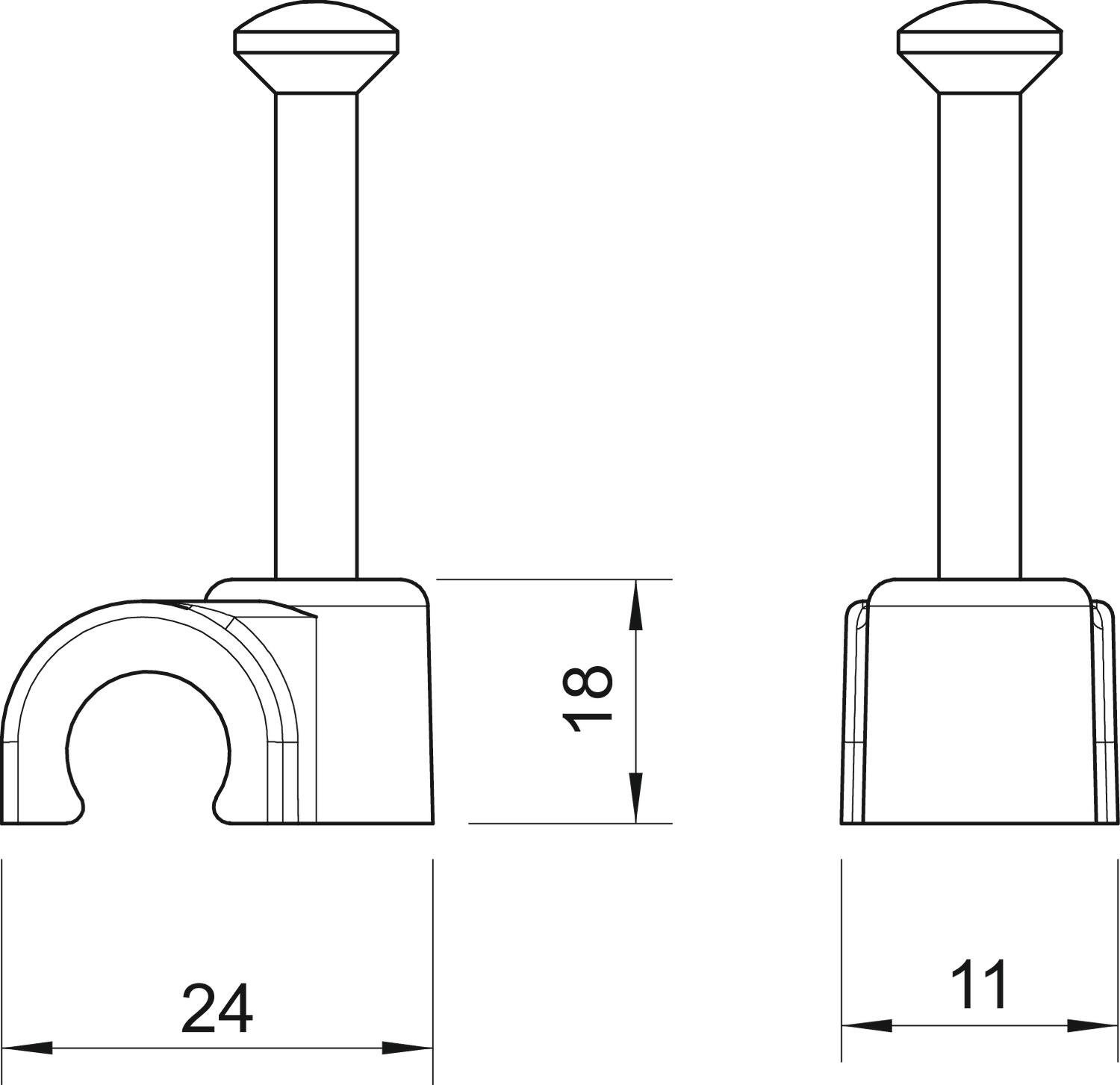

Dimension 14mm, L50
Dimension B 11 mm
Dimension H 18 mm
Dimension L 24 mm
Double clip no
for cable diameter 14 mm
For nail diameter 2,0x50
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 50 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2014 40 LGR 40 mm 14 mm 2,0x40 Light grey; RAL 7035 2228114
50 piece
2014 50 LGR 50 mm 14 mm 2,0x50 Light grey; RAL 7035 2228122
50 piece
