ISO nail clip 2016, light grey 40 | 16 | 2,0x40 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2016, light grey

Item no. 2228211 | EAN 4012195219132

Item no. / Types

Nail length

for cable diameter	16 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	16mm, L40
Dimension B	12 mm
Dimension H	20 mm
Dimension L	26 mm
Double clip	no
for cable diameter	16 mm
For nail diameter	2,0x40
Halogen-free	yes

Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	40 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2016 40 LGR	40 mm	16 mm	2,0x40	Light grey; RAL 7035	2228211	piece	50 piece
2016 50 LGR	50 mm	16 mm	2,0x50	Light grey; RAL 7035	2228238	piece	50 piece

Downloads

Data sheet 2016 40 LGR / 2228211 , 0.16MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2016 40 LGR / 2228211 , 0.06MB , pdf

Download

Product graphic 2016 40 LGR / 2228211, 42.51 kB, jpg

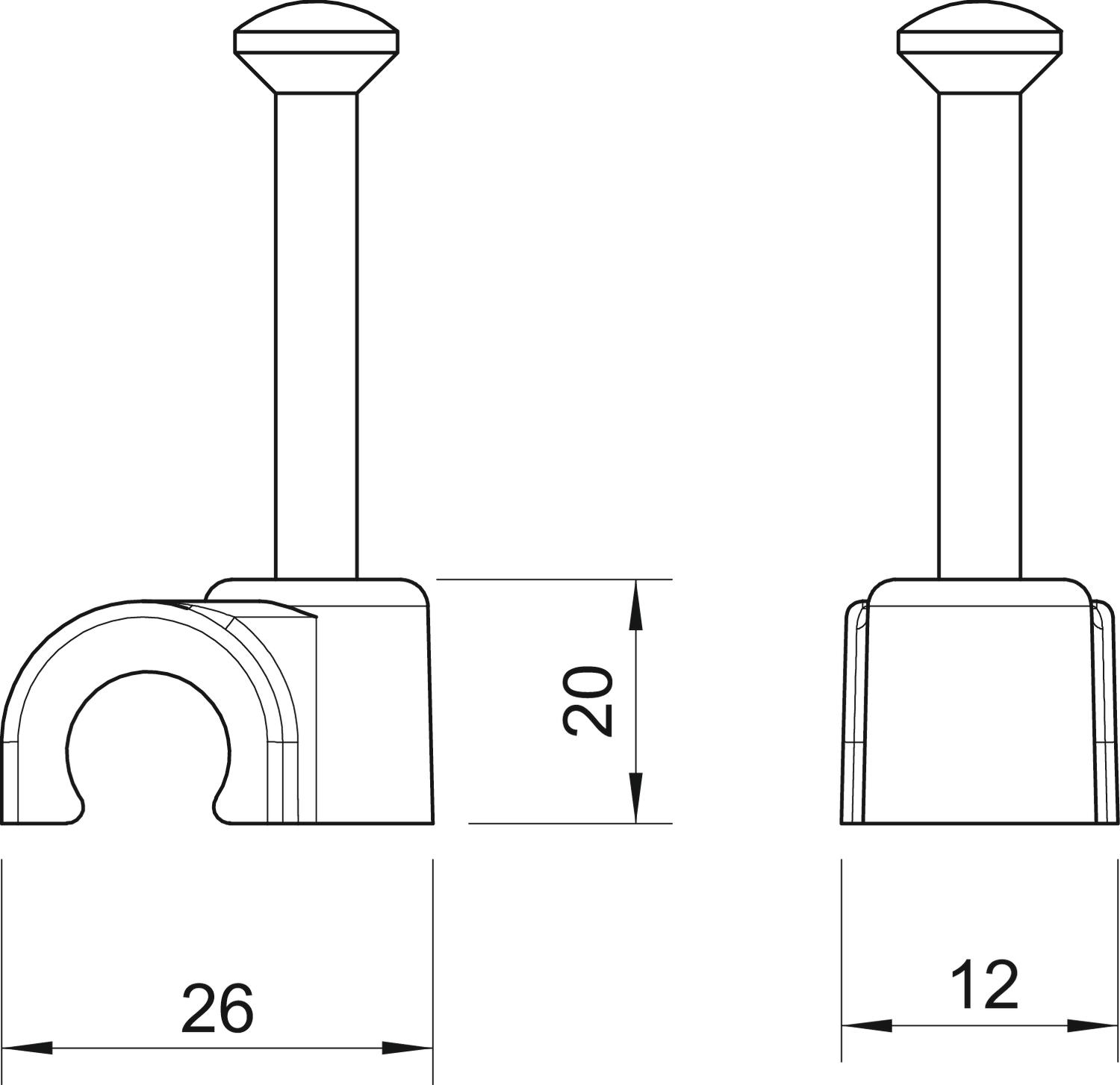

Scale drawing 2016 40 LGR / 2228211, 66.17 kB, jpg

2016 40 LGR / 2228211
