ISO nail clip 2016, white 40 | 16 | 2,0x40 | Pure white; RAL 9010
morepic-1 morepic-2

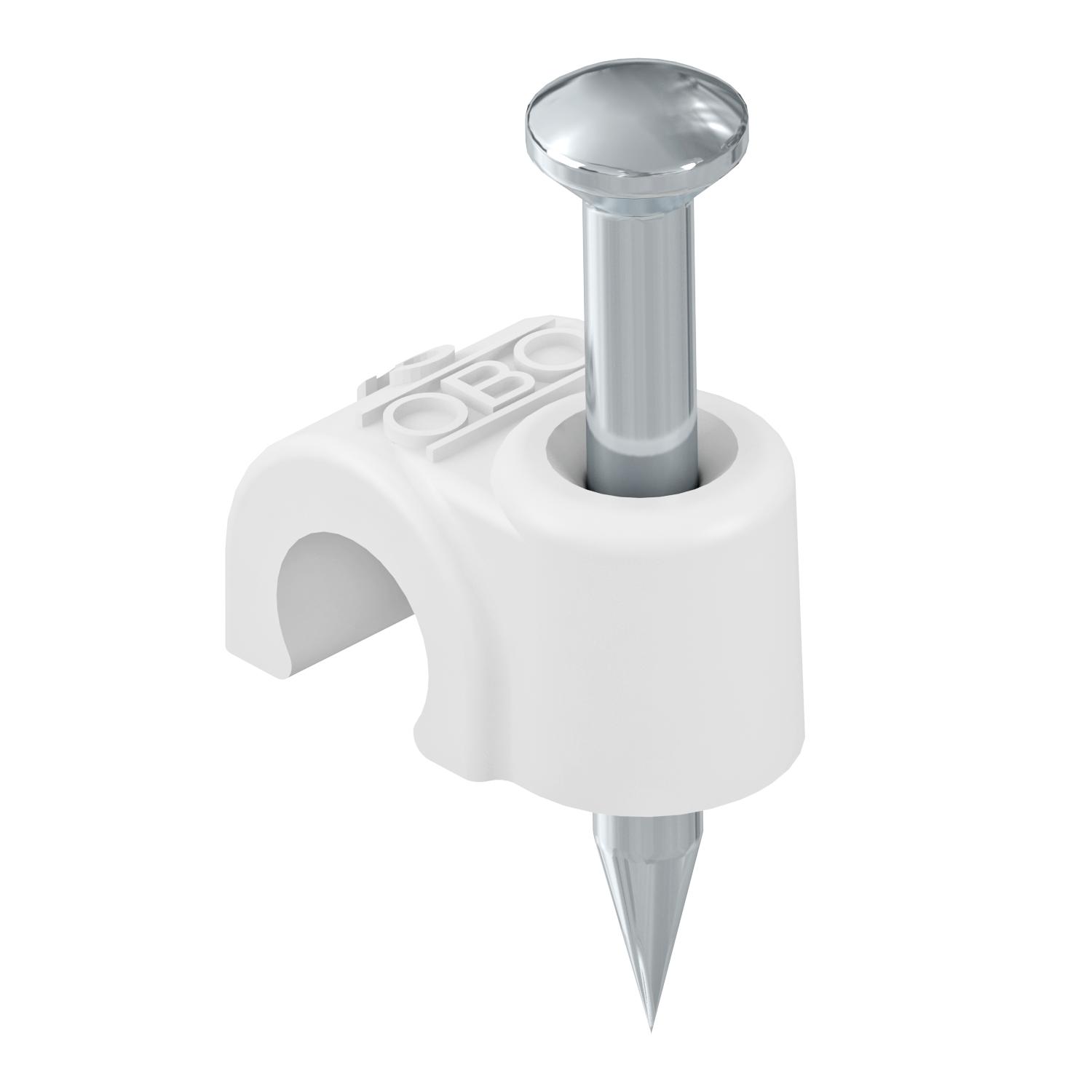

ISO nail clip 2016, white

Item no. 2226219 | EAN 4012195216674

2226219 / 2016 40 RW
40 mm
16 mm
2,0x40
Pure white; RAL 9010
Product description
Product description
ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010

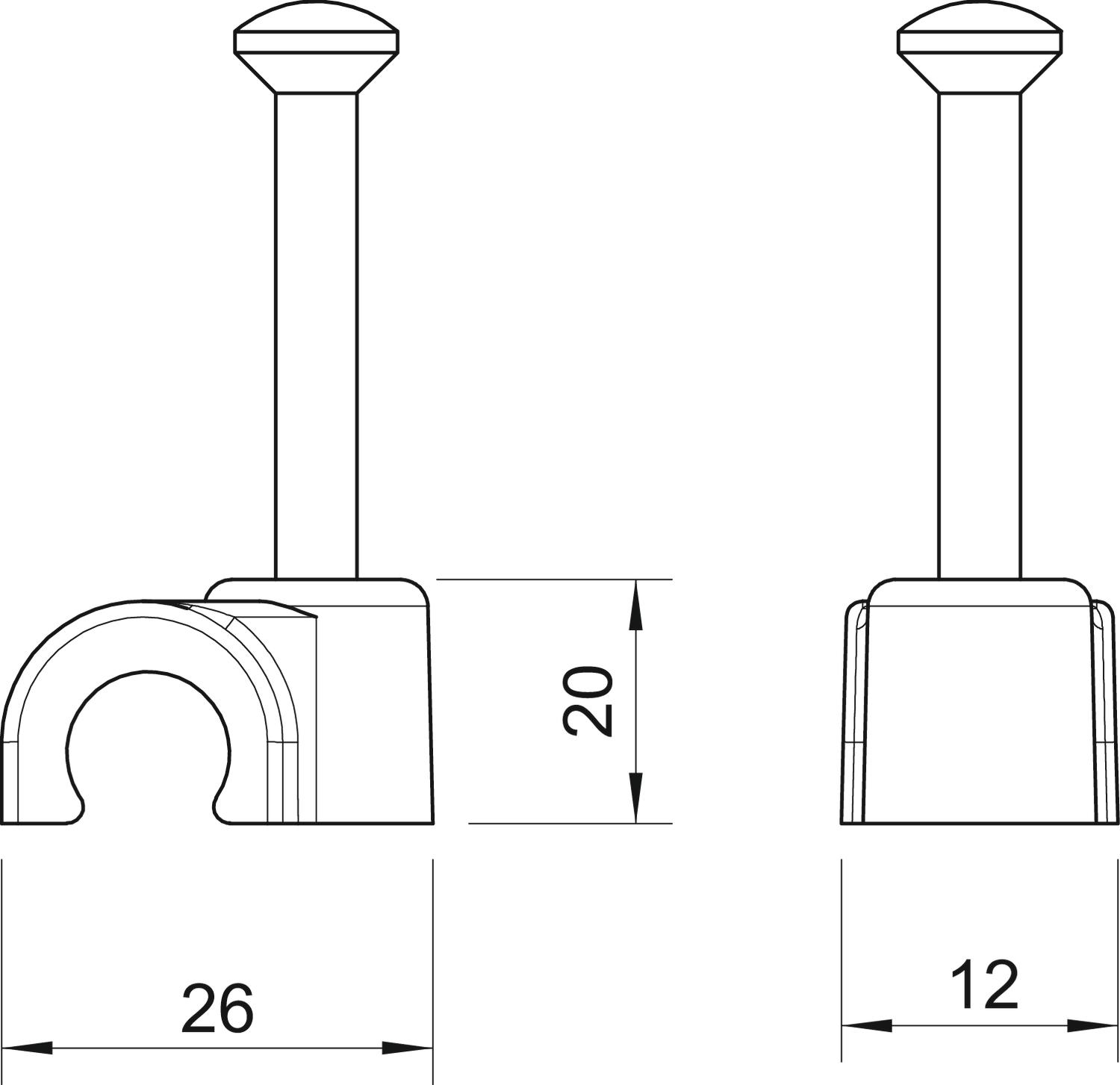

Dimension 16mm, L40
Dimension B 12 mm
Dimension H 20 mm
Dimension L 26 mm
Double clip no
for cable diameter 16 mm
For nail diameter 2,0x40
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 40 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2016 40 RW 40 mm 16 mm 2,0x40 Pure white; RAL 9010 2226219
50 piece
Downloads

Download

Download

EU declaration of conformity 2016 40 RW / 2226219 , 0.06MB , pdf
Download

2016 40 RW / 2226219
Download
