ISO nail clip 2018, light grey 50 | 18 | 2,5x50 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2018, light grey

Item no. 2228319 | EAN 4012195219316

Item no. / Types

Nail length

for cable diameter	18 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	18mm, L50
Dimension B	13 mm
Dimension H	22 mm
Dimension L	28 mm
Double clip	no
for cable diameter	18 mm
For nail diameter	2,5x50
Halogen-free	yes

Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	50 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2018 40 LGR	40 mm	18 mm	2,0x40	Light grey; RAL 7035	2228300	piece	25 piece
2018 50 LGR	50 mm	18 mm	2,5x50	Light grey; RAL 7035	2228319	piece	25 piece

Downloads

Data sheet 2018 50 LGR / 2228319 , 0.16MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2018 50 LGR / 2228319 , 0.06MB , pdf

Download

Product graphic 2018 50 LGR / 2228319, 42.51 kB, jpg

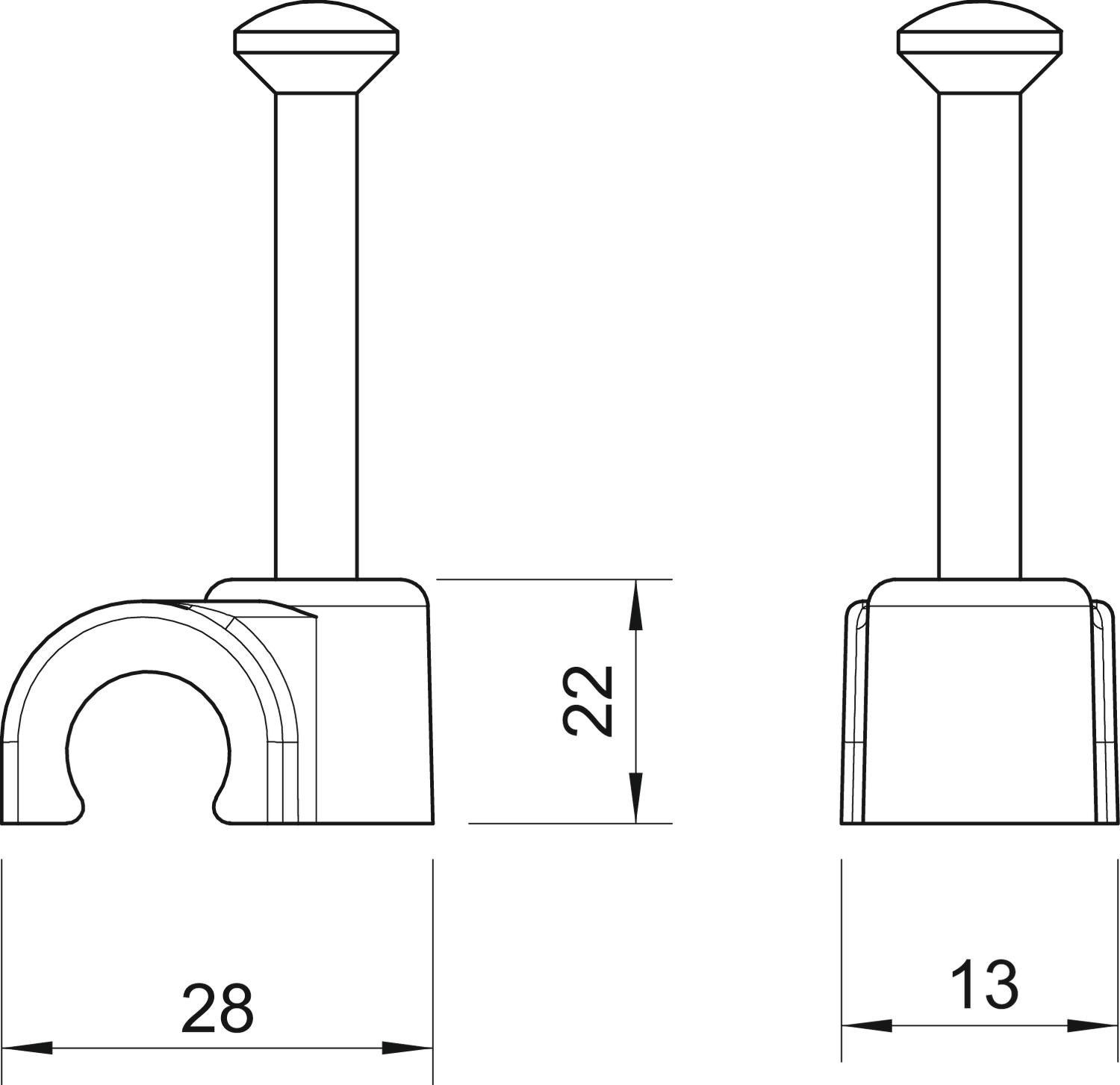

Scale drawing 2018 50 LGR / 2228319, 66.09 kB, jpg

2018 50 LGR / 2228319
