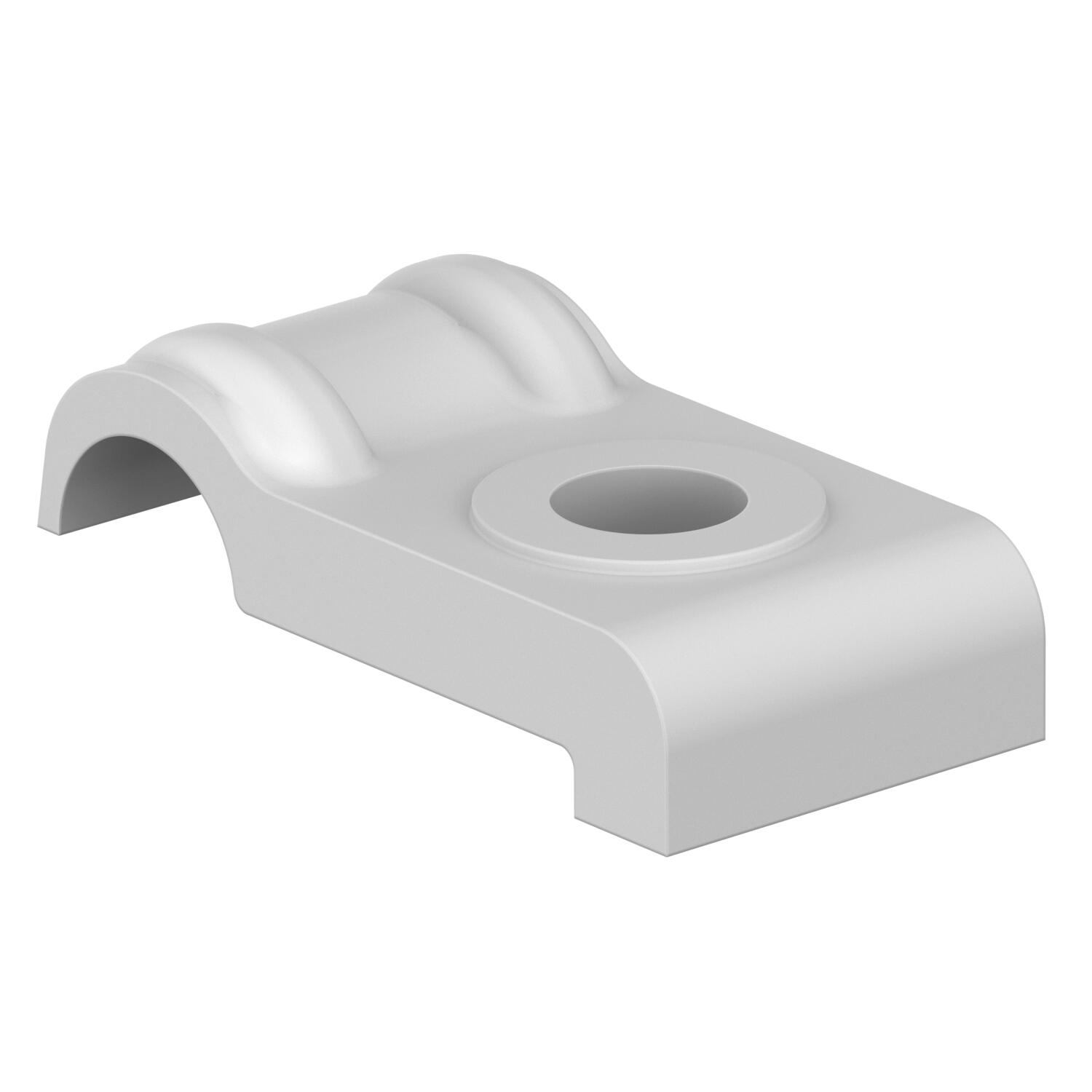

ISO nail clip 4028 2-4

Item no. 2215047 | EAN 4012195213130

2215047 / 4028
2 mm
4 mm
2,0
Product description
Product description
OBO makes various fastening systems available for fastening cables securely on different substrates. Starting with the adhesive clip or ISO nail clips for fastening, e.g. on wooden beams, up to the Nail-Fix for fixing in masonry slits, OBO can offer a wide range of clips for nail fastening, suitable for steel nails 2 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 2-4mm

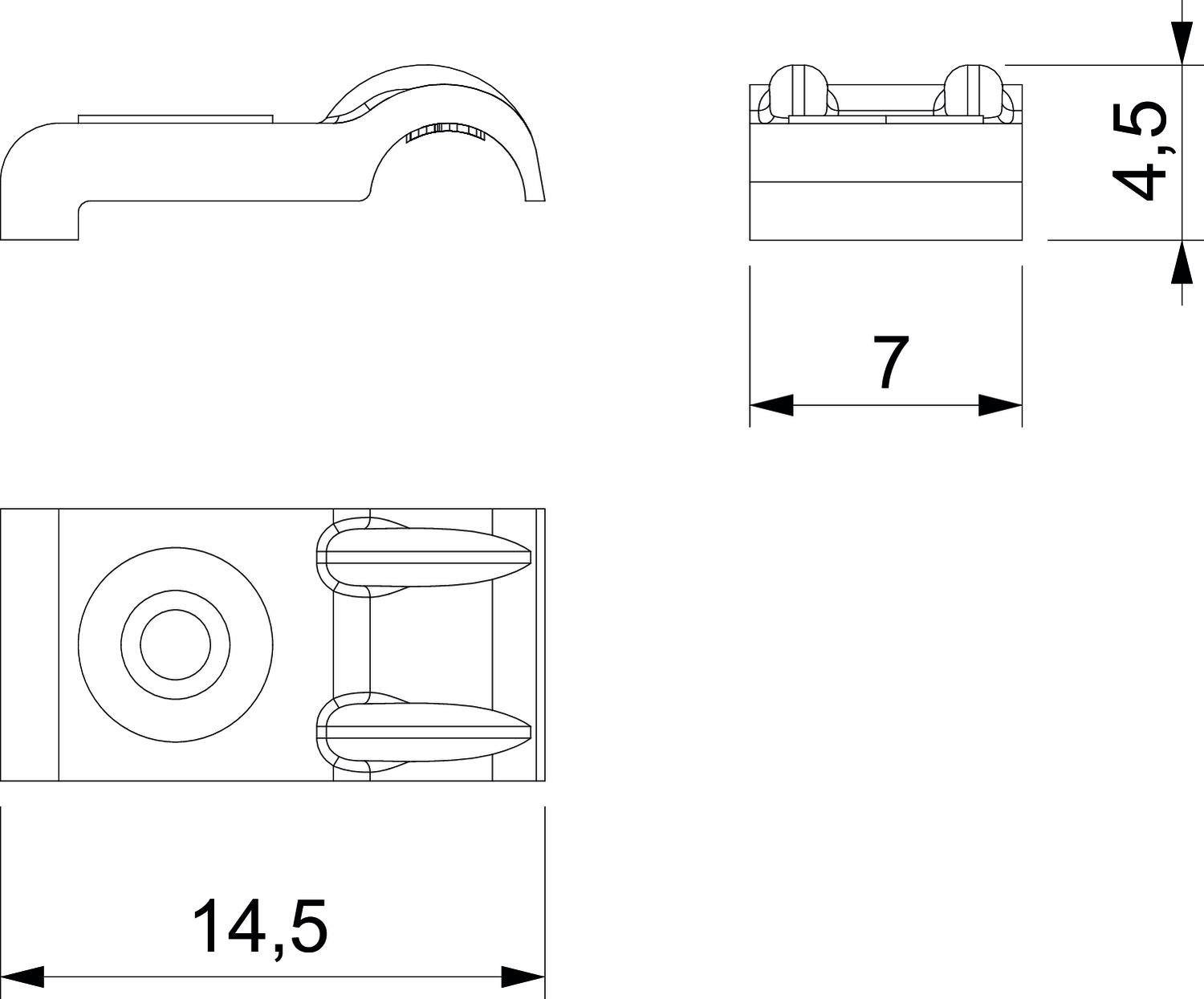

Dimension B 7 mm
Dimension H 4,5 mm
Dimension H1 1,5 mm
Dimension L 14,5 mm
Double clip no
for cable diameter, max. 4 mm
for cable diameter, min. 2 mm
For nail diameter 2,0
Halogen-free yes
Hardened no
Impact-resistant no
Material Polypropylene
Pipe locking no
Shape Rectangular (for flat conductor)
With nail no
All types

All types

Types for cable diameter, min. for cable diameter, max. For nail diameter Item no. Quantity SSU
4028 2 mm 4 mm 2,0 2215047
1000 piece
Downloads

Download

EU declaration of conformity 4028 / 2215047 , 0.06MB , pdf
REACH Declaration of conformity 4028 / 2215047 , 0.12MB , pdf
RoHS Declaration of conformity 4028 / 2215047 , 0.12MB , pdf

4028 / 2215047
Download
