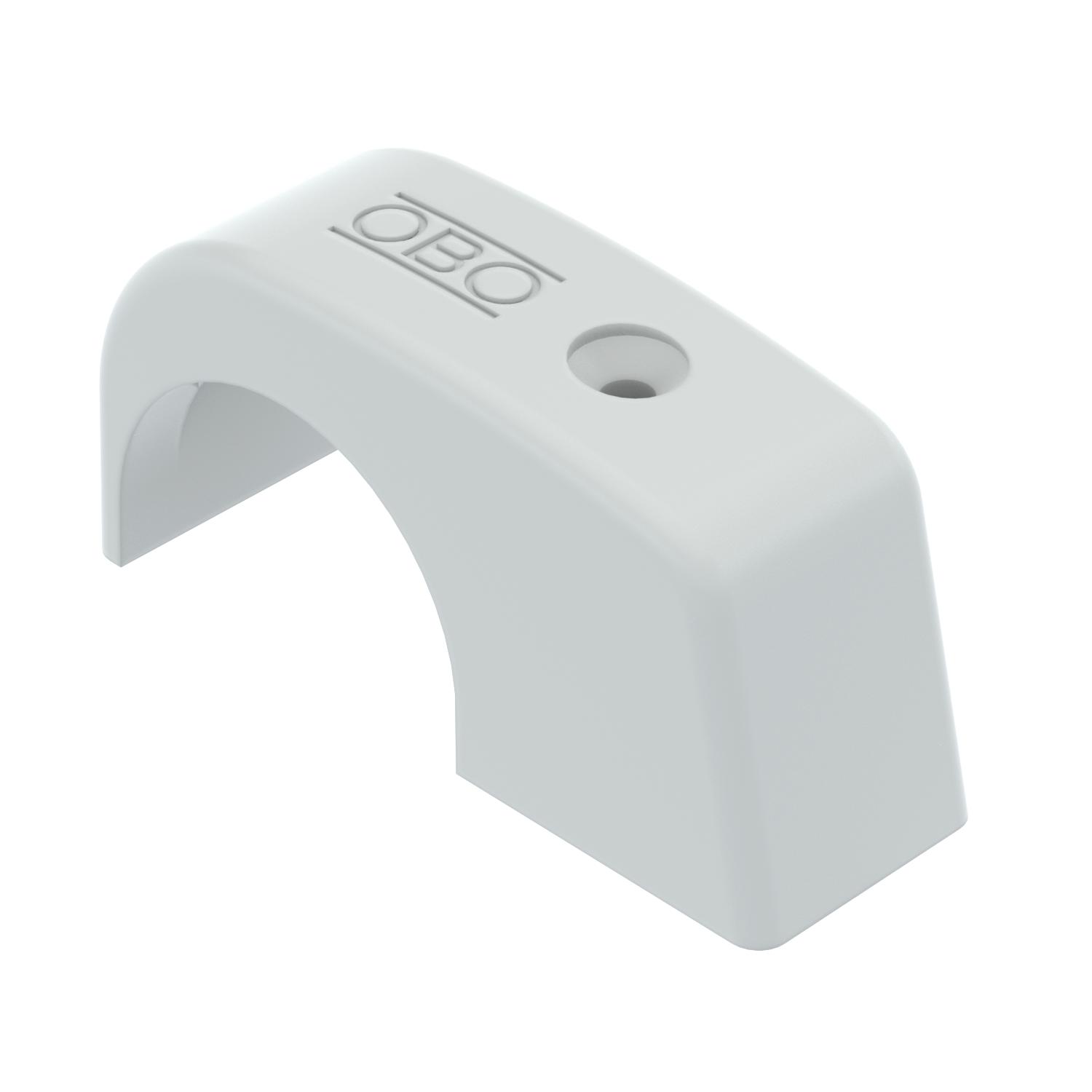

ISO nail clip 4031 14-17
Item no. 2215179 | EAN 4012195213376
- Product description
-
Product descriptionOBO makes various fastening systems available for fastening cables securely on different substrates. Starting with the adhesive clip or ISO nail clips for fastening, e.g. on wooden beams, up to the Nail-Fix for fixing in masonry slits, OBO can offer a wide range of clips for nail fastening, suitable for steel nails 2 mm.
-
- Technical data
-
Technical data

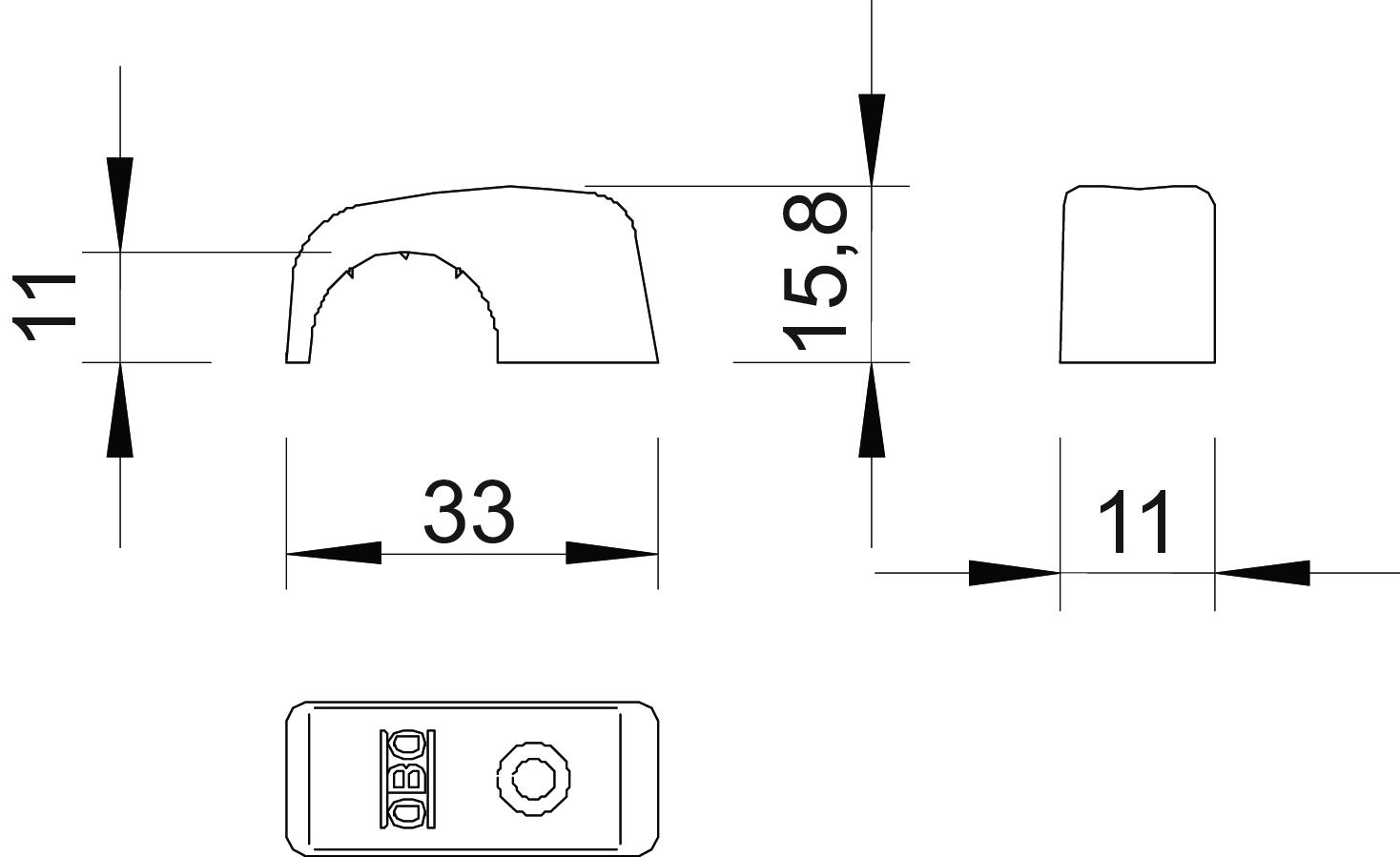

Colour Light grey; RAL 7035 Dimension 14-17mm Dimension B 11 mm Dimension H 15,8 mm Dimension H1 11 mm Dimension L 33 mm Double clip no for cable diameter, max. 17 mm for cable diameter, min. 14 mm For nail diameter 2,0 Halogen-free yes Hardened no Impact-resistant no Material Polypropylene Pipe locking no Shape Round (for round conductor) With nail no - All types
- Downloads
-
Data sheet 4031 14-17 / 2215179 , 0.17MB , pdfEU declaration of conformity 4031 14-17 / 2215179 , 0.06MB , pdfREACH Declaration of conformity 4031 14-17 / 2215179 , 0.12MB , pdfRoHS Declaration of conformity 4031 14-17 / 2215179 , 0.12MB , pdf
