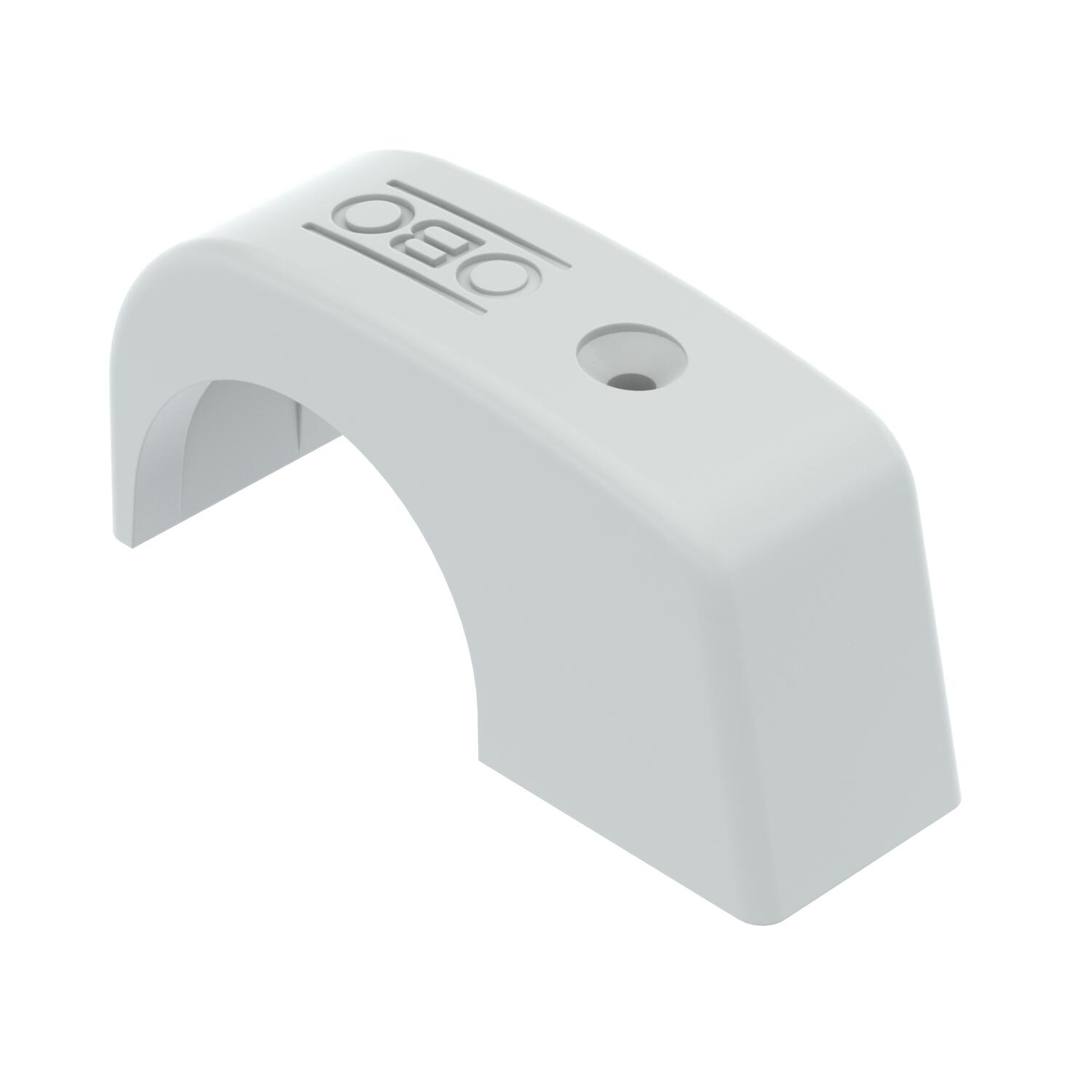

ISO nail clip 4032 16-20

Item no. 2215209 | EAN 4012195213437

2215209 / 4032
16 mm
20 mm
2,0
Product description
Product description
OBO makes various fastening systems available for fastening cables securely on different substrates. Starting with the adhesive clip or ISO nail clips for fastening, e.g. on wooden beams, up to the Nail-Fix for fixing in masonry slits, OBO can offer a wide range of clips for nail fastening, suitable for steel nails 2 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

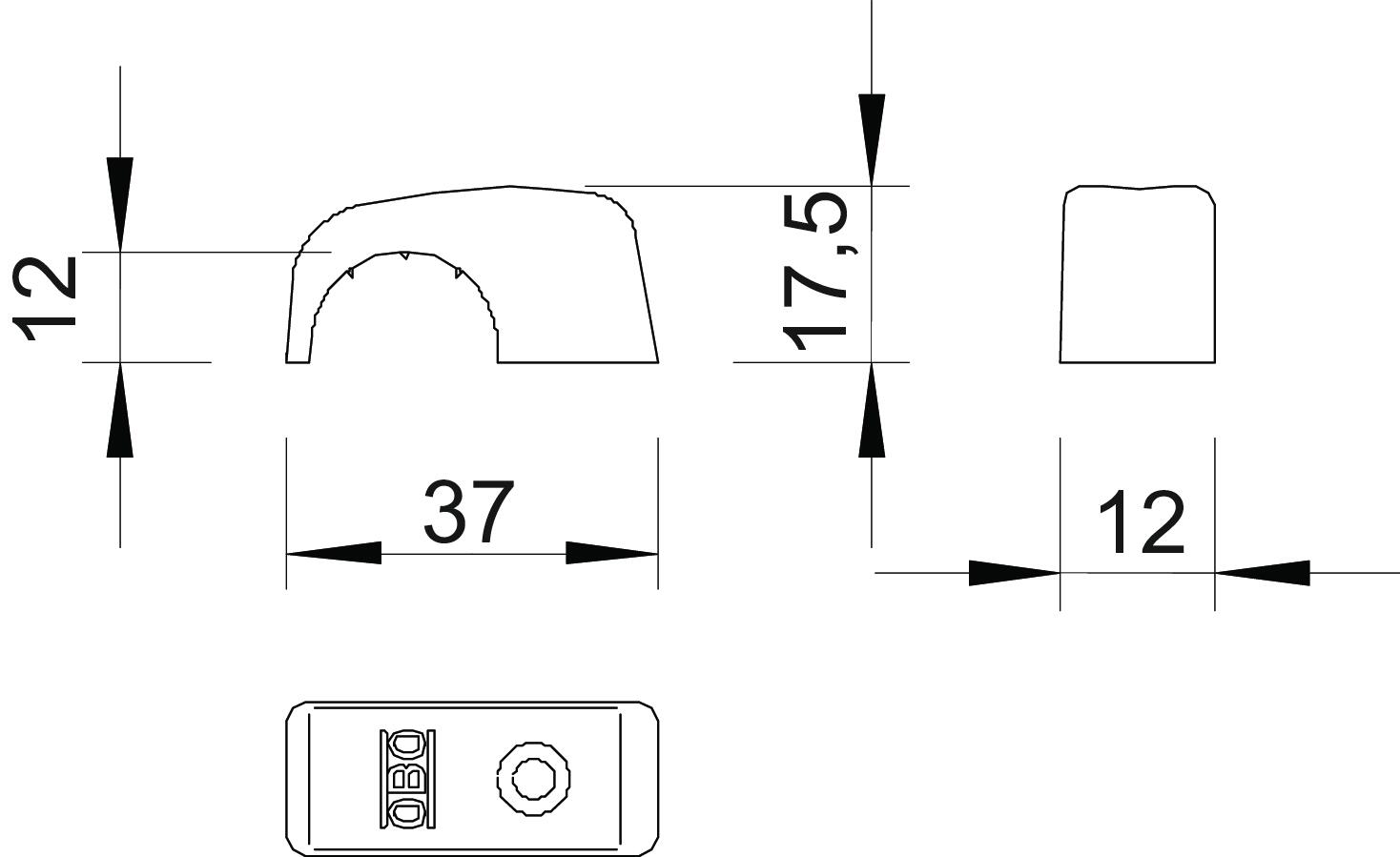

Dimension 16-20mm
Dimension B 12 mm
Dimension H 17,5 mm
Dimension H1 12 mm
Dimension L 37 mm
Double clip no
for cable diameter, max. 20 mm
for cable diameter, min. 16 mm
For nail diameter 2,0
Halogen-free yes
Hardened no
Impact-resistant no
Material Polypropylene
Pipe locking no
Shape Round (for round conductor)
With nail no
All types

All types

Types for cable diameter, min. for cable diameter, max. For nail diameter Item no. Quantity SSU
4032 16 mm 20 mm 2,0 2215209
100 piece
Downloads

Download

EU declaration of conformity 4032 / 2215209 , 0.06MB , pdf
REACH Declaration of conformity 4032 / 2215209 , 0.12MB , pdf
RoHS Declaration of conformity 4032 / 2215209 , 0.12MB , pdf
