Joint connector

Item no. 6116752 | EAN 4012196211456

Product description

Product description

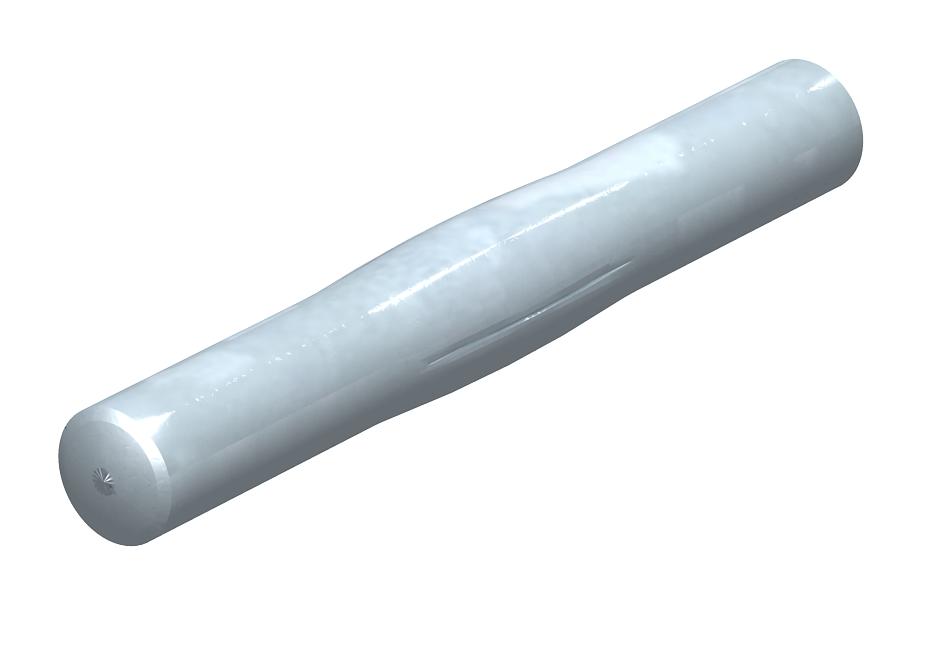

Joint connectors as notched pins for direct joint-to-joint connection of the trunking bases without joint cover. Suitable for aluminium device installation trunking of the Rapid 80 and Rapid 45-2 series and GAD design trunking for system use for cable routing and/or with Modul45 connect. Also compatible with the BK 1874 floor trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

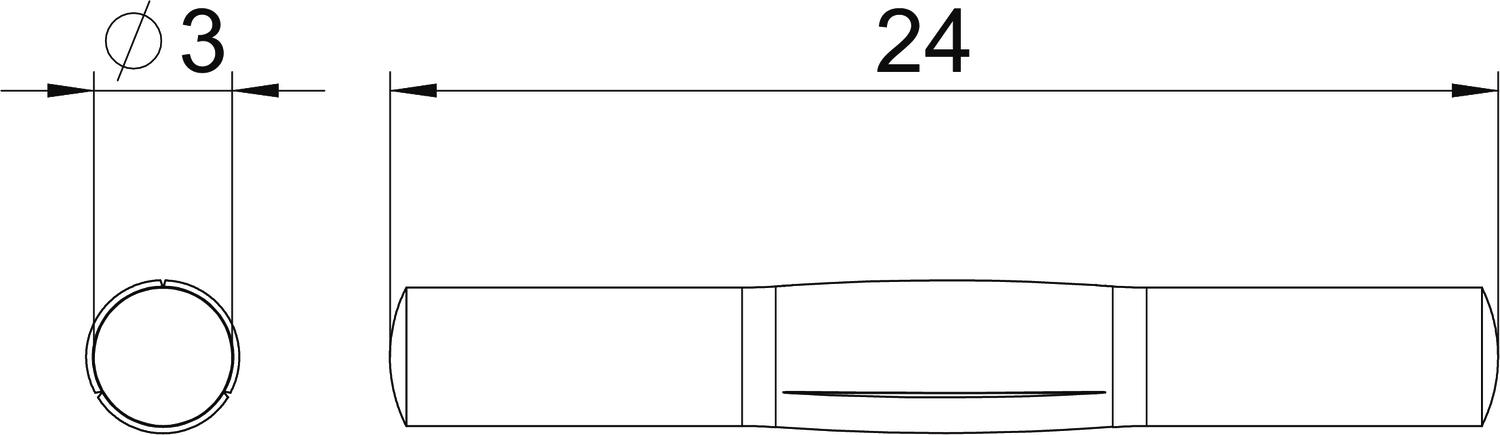

Dimension 3x24mm
Halogen-free yes
Height 3 mm
Length 24 mm
Material Steel
Type Pin
Version for Universal
Width 3 mm
With equipotential bonding yes
All types

All types

Types Item no. Quantity SSU
GEK-AKU45 6116752
10 piece
Downloads

Download

Declaration of conformity GEK-AKU45 / 6116752 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
