Joint connector A2

Item no. 6066054 | EAN 4012196064816

Item no. / Types	6066054 / SSV A2

Plate thickness	2 mm

Product description

Product description

Joint connector for horizontal connection of BKK basic profiles. Including fastening material.

Technical data

Technical data

Adjustable connector, horizontal	no
Articulated connector, vertical	no
Colour	stainless steel
Connection type	Screw connector
Dimension	100x23
Dimension	23 x 23 x 100
Material	Stainless steel

Plate thickness	2 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	no
Suitable for mesh cable tray	no
Surface	Bright, treated
Version for	Joint plate

All types

All types

Types	Plate thickness	Item no.	Quantity	SSU
SSV A2	2 mm	6066054	piece	25 piece

Downloads

Data sheet SSV A2 / 6066054 , 0.21MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity SSV A2 / 6066054 , 0.13MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

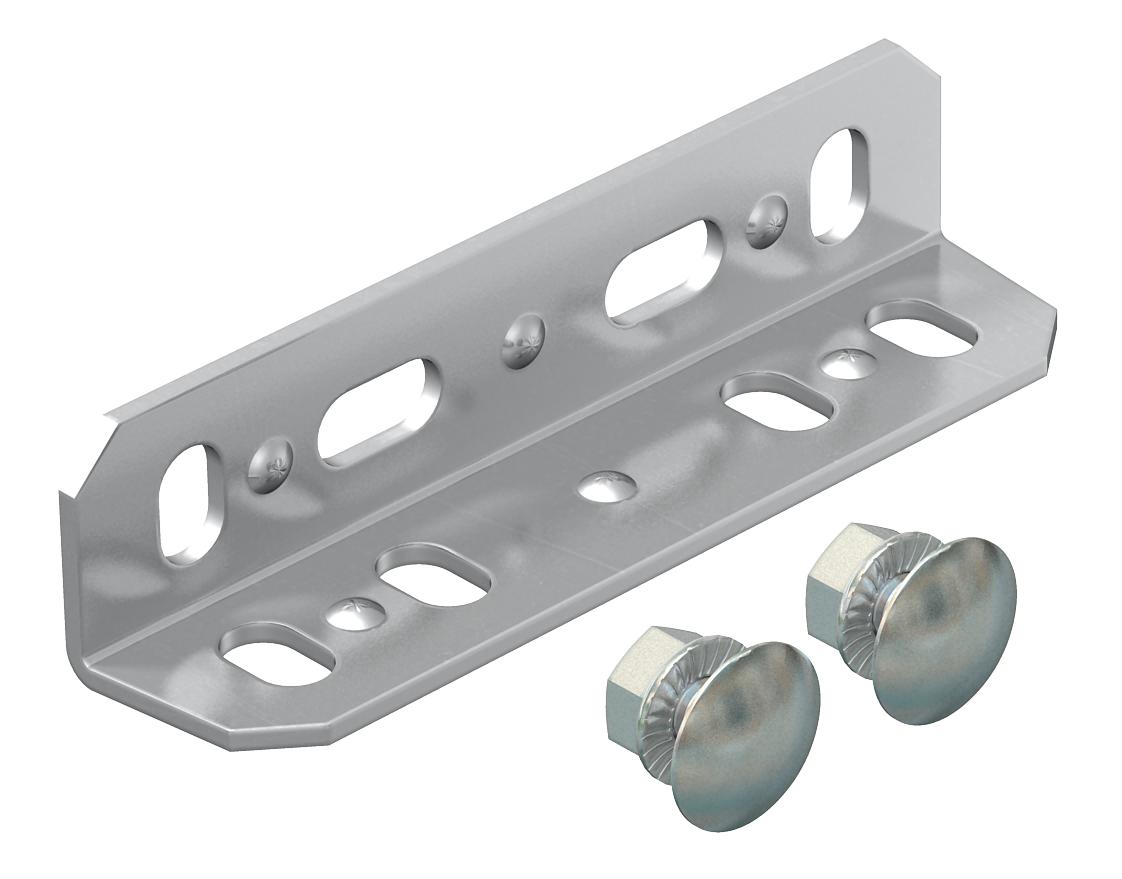

Product graphic SSV A2 / 6066054, 52.27 kB, jpg

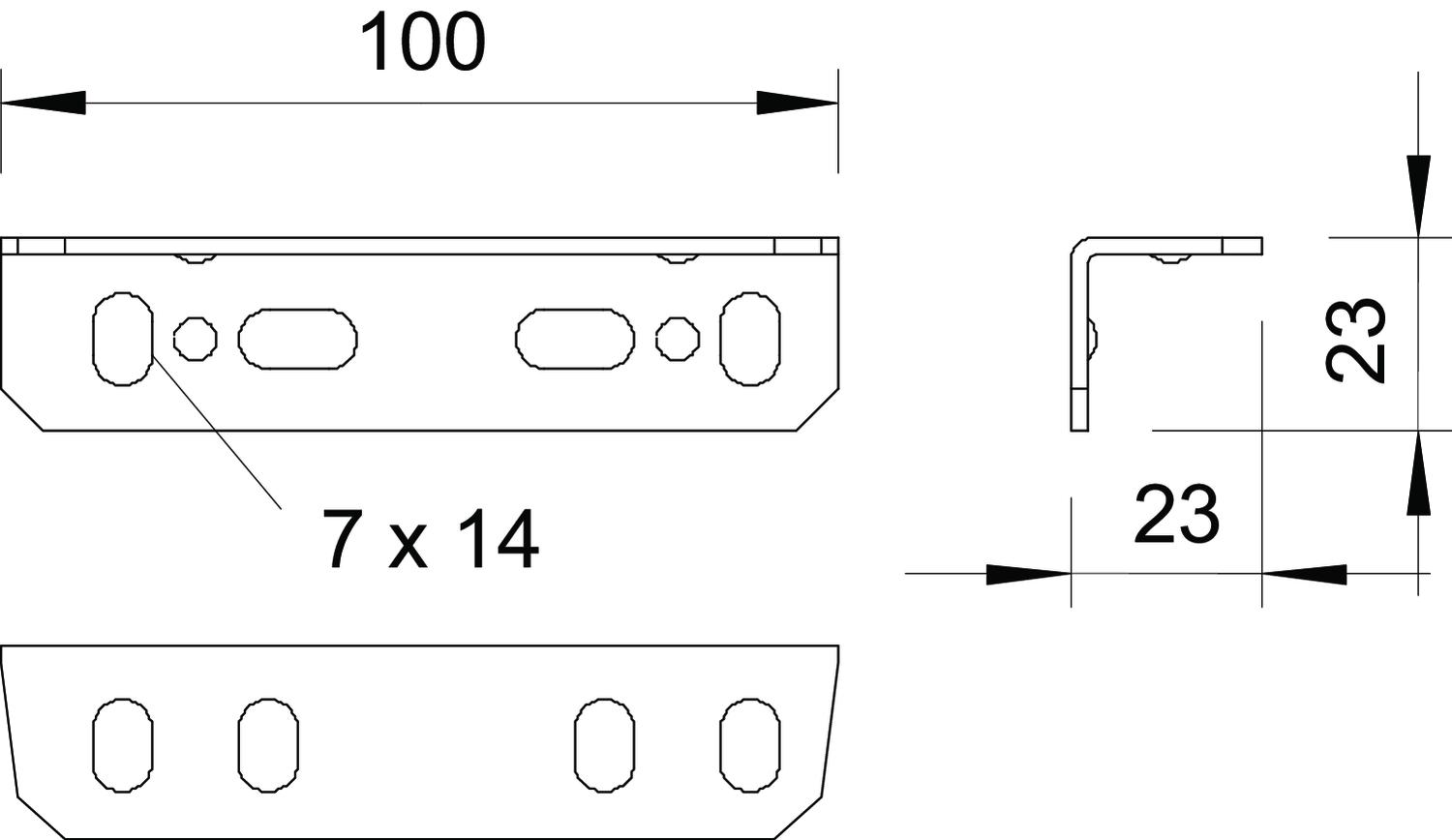

Scale drawing SSV A2 / 6066054, 53.01 kB, jpg

SSV A2 / 6066054
