Joint connector A4
Item no. 6016648 | EAN 4012196120079
- Product description
-

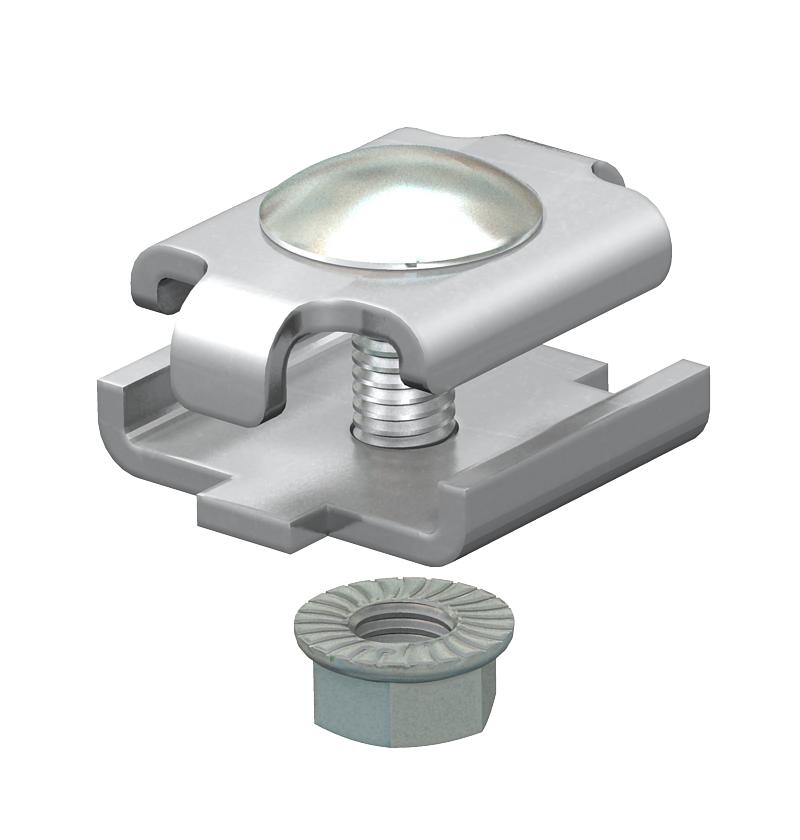

Product descriptionScrewed version of joint connector for mesh cable trays.
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units
-
- Technical data
-
Technical data

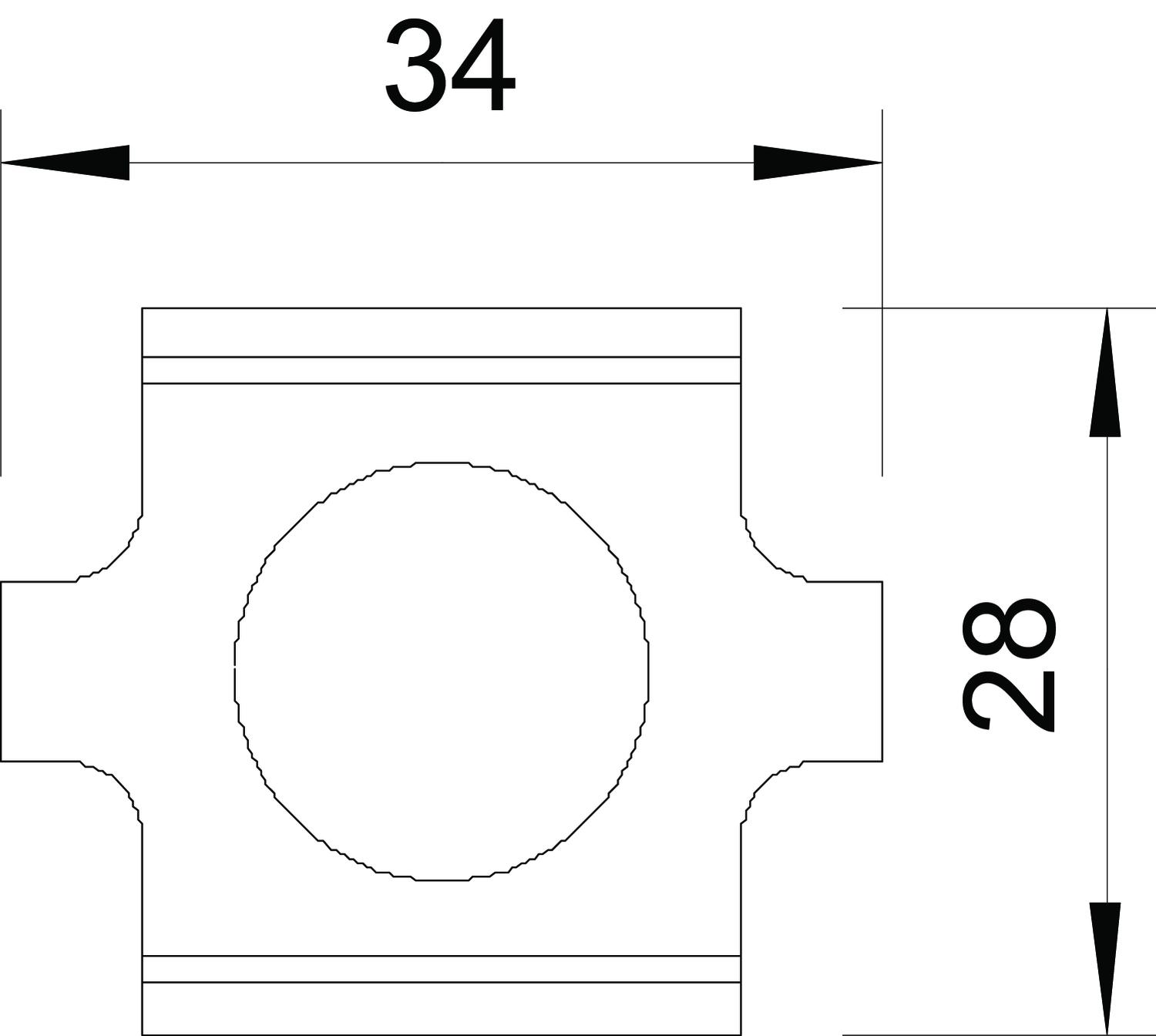

Adjustable connector, horizontal no Articulated connector, vertical no Colour stainless steel Connection type Screw connector Dimension 28 x 34 Height 24 mm Height 0,94 in Length 34 mm Maintain electrical functions no Material Stainless steel Rustproof steel, pickled yes Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for mesh cable tray wire, max. 4,9 mm Suitable for mesh cable tray wire, min. 3,9 mm Surface Bright, treated Version for Straight connector Width 1,14 in Width 29 mm - All types
