Joint connector FT
Item no. 6016634 | EAN 4012196013159
- Product description
-

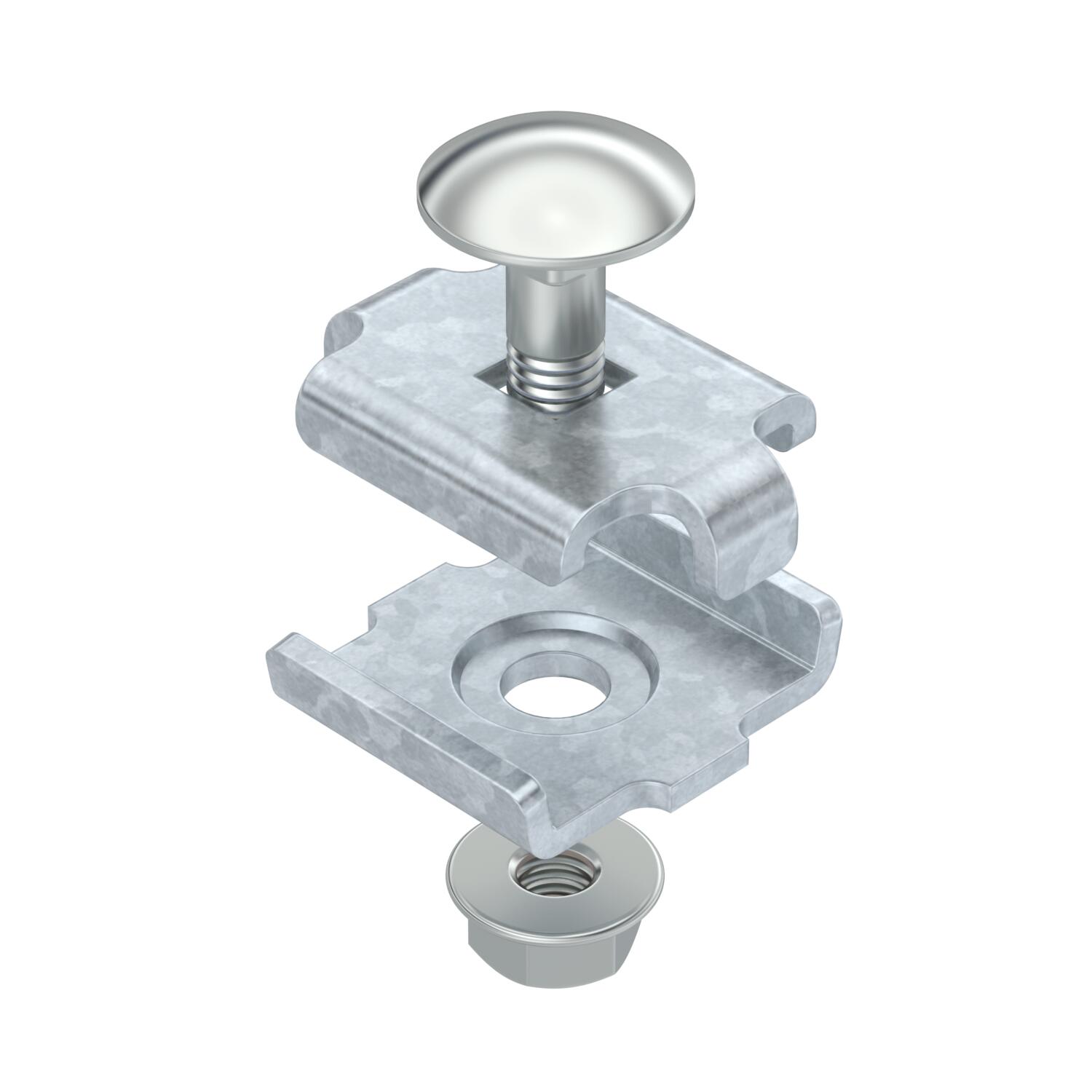

Product descriptionScrewed version of joint connector for mesh cable trays.
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Colour zinc Connection type Screw connector CO₂ Footprint (GWP) Cradle-to-Gate 0,088 kg CO₂e / 1 Piece Dimension 34 x 27,5 Height 0,94 in Height 24 mm Length 34 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for mesh cable tray wire, max. 4,9 mm Suitable for mesh cable tray wire, min. 3,9 mm Surface Hot-dip galvanised Version for Straight connector Width 1,14 in Width 29 mm - All types
