Joint connector G
Item no. 6016572 | EAN 4012196593866
- Product description
-
Product description

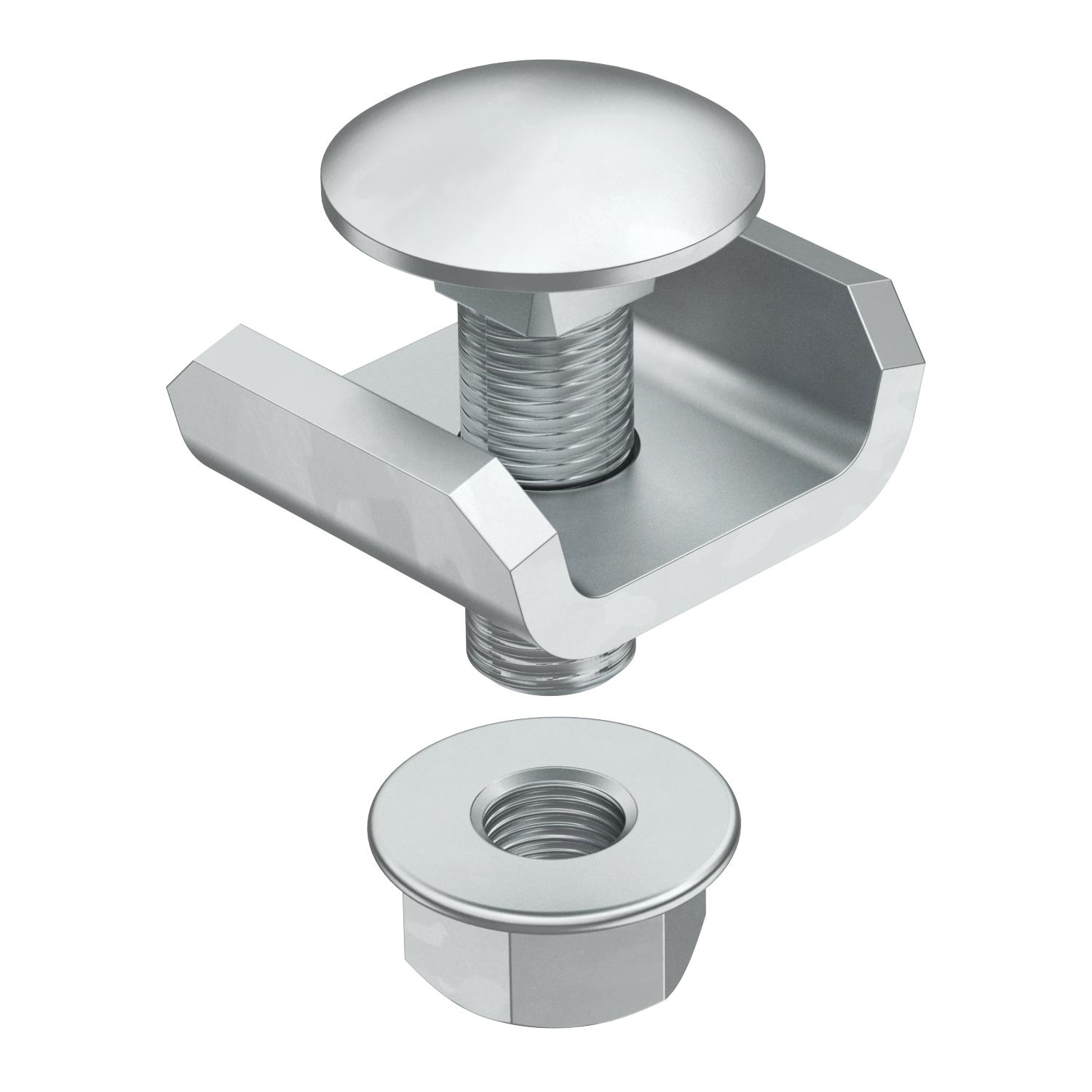

Joint connector for mesh cable tray, type SGR.
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units
-
- Technical data
-
Technical data

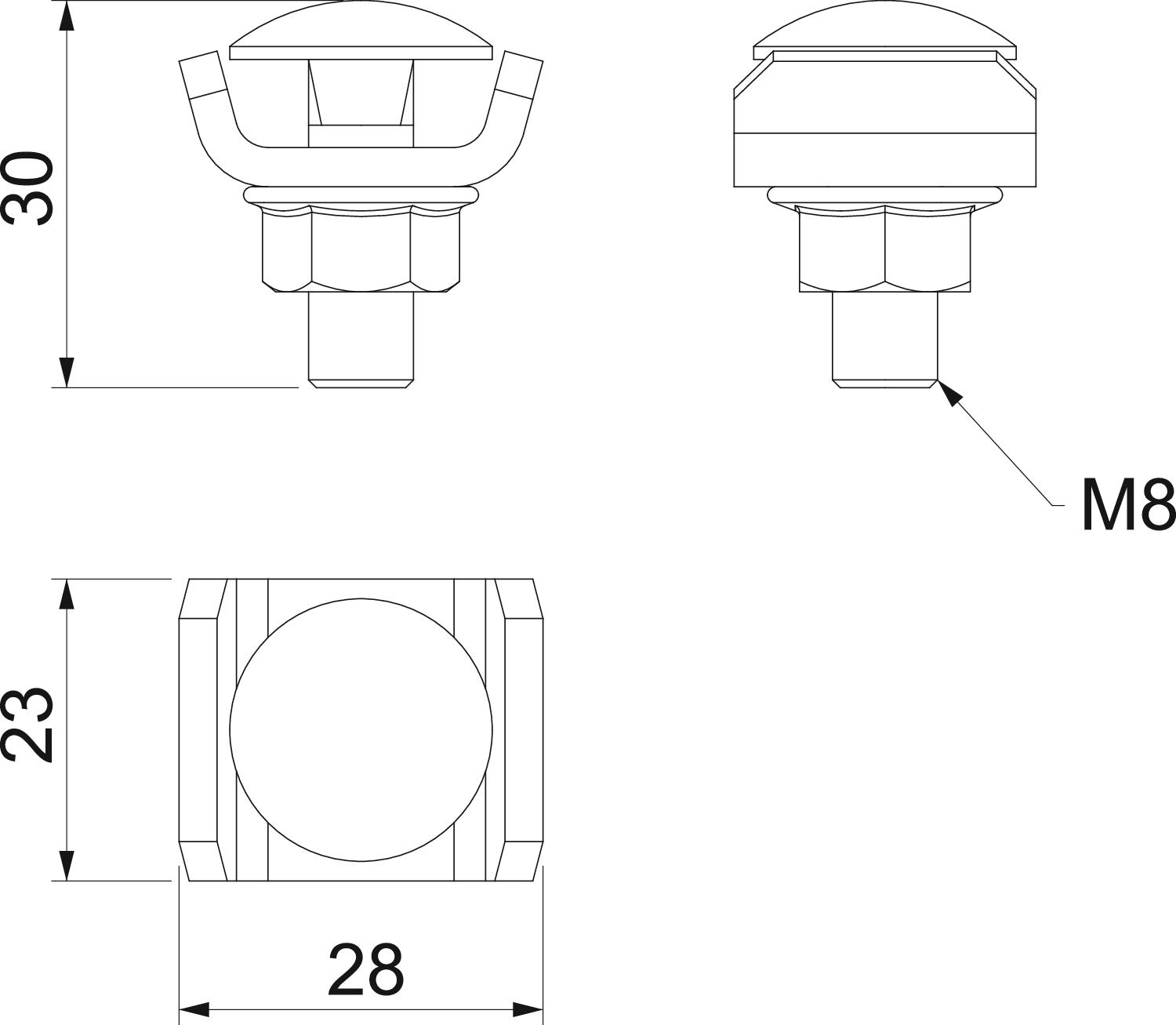

Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 24 x 28 Dimension 24x28x30 Height 1,18 in Height 30 mm Length 24 mm Maintain electrical functions no Material Steel Rustproof steel, pickled yes Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for mesh cable tray wire, min. 6 mm Surface Electrogalvanized Width 1,1 in Width 28 mm - All types
- Downloads
-
Data sheet GUV 6 G / 6016572 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity GUV 6 G / 6016572 , 0.10MB , pdfREACH Declaration of conformity GUV 6 G / 6016572 , 0.12MB , pdfRoHS Declaration of conformity GUV 6 G / 6016572 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
