Joint cover, for trunking, type WDK 13025 Pure white; RAL 9010
morepic-1 morepic-2 video-1

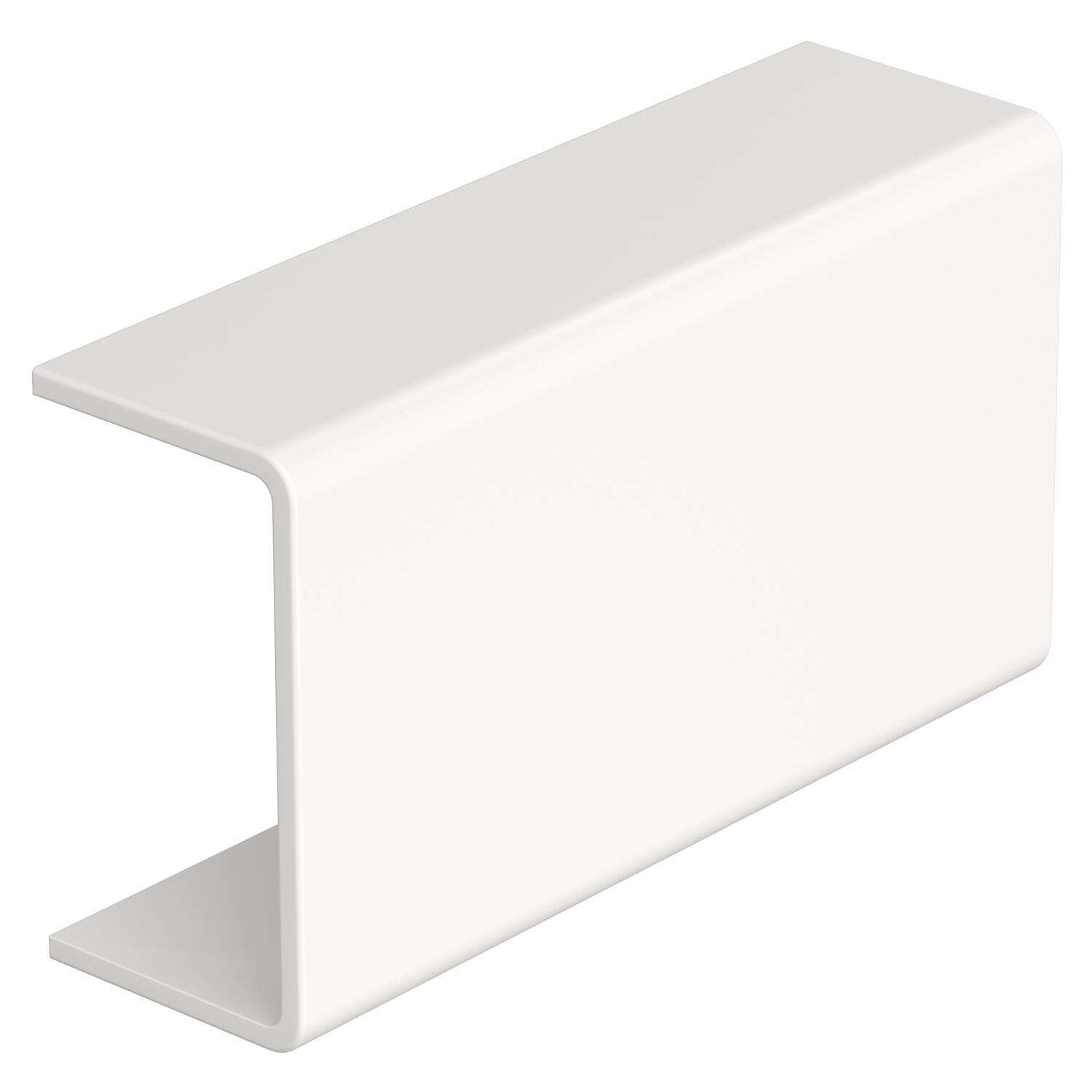

Joint cover, for trunking, type WDK 13025

Item no. 6193498 | EAN 4012195959069

Product description
Product description
Joint cover for perfect connection of the WDK trunking segments, type 13025. Incl. coupling for the raised trunking floor.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010

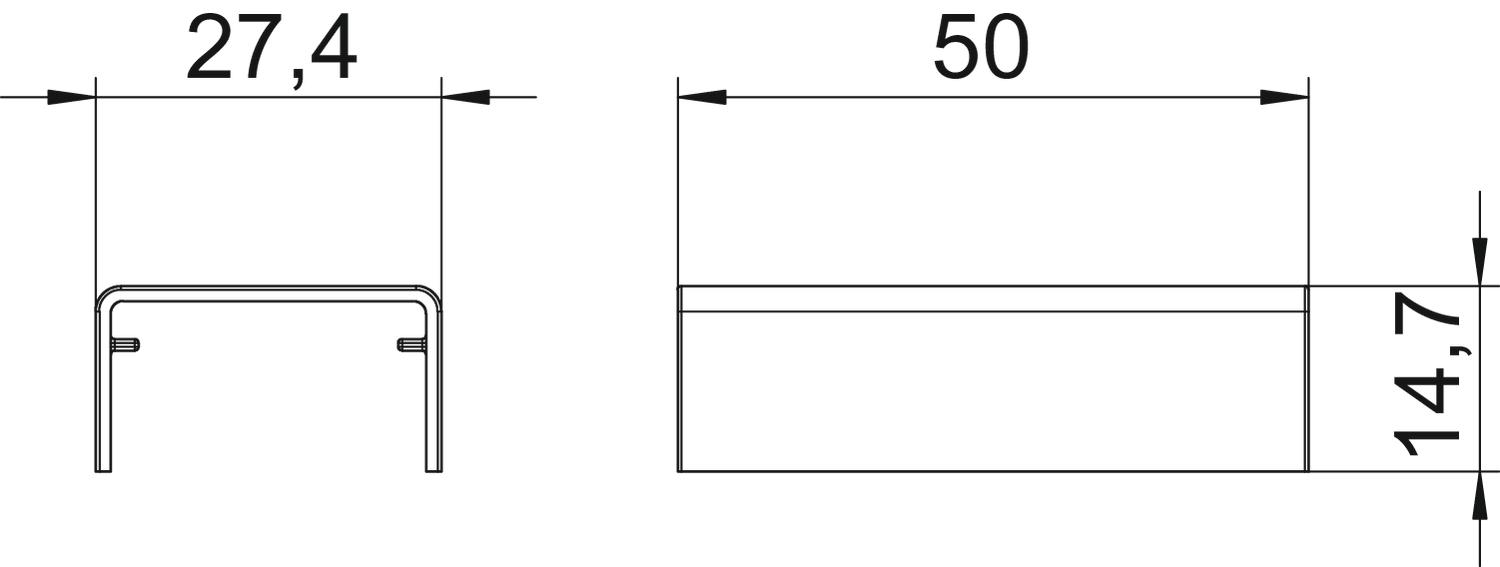

Dimension 15x27x50mm
Fastening type Lockable
Halogen-free no
Height 14,7 mm
Length 50 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Version for Trunking cut cover
Width 27,4 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK HS13025PW Oyster white; RAL 1013 6193496
20 piece
WDK HS13025RW Pure white; RAL 9010 6193498
20 piece
