Joint cover, for trunking, type WDK 15030 Cream; RAL 9001
morepic-1 morepic-2

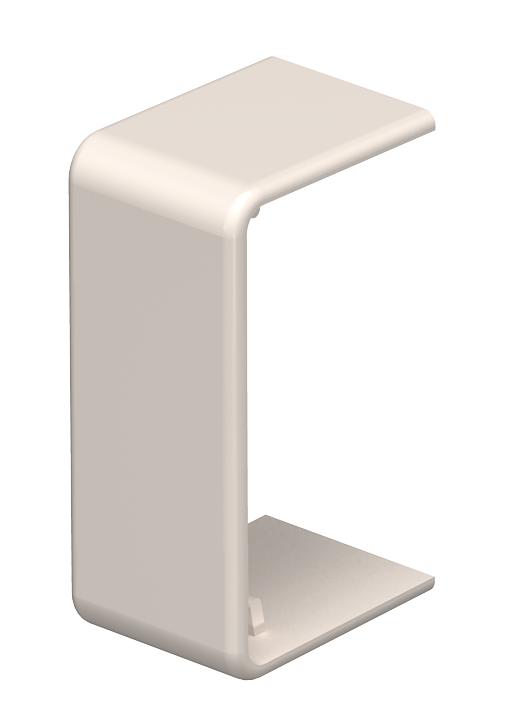

Joint cover, for trunking, type WDK 15030

Item no. 6152031 | EAN 4012196507610

Product description
Product description
Joint cover for smooth connection of trunking segments.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Cream; RAL 9001
Cover width 14 mm
Dimension 15x30mm
Dimension a 32 mm
Dimension b 14 mm
Dimension H 30 mm
Fastening type Lockable
Halogen-free no
Height 18,5 mm
Length 14 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Trunking depth 15 mm
Version for Trunking cut cover
Width 32 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK HS15030CW Cream; RAL 9001 6152031
10 piece
WDK HS15030GR Stone grey; RAL 7030 6158838
10 piece
WDK HS15030RW Pure white; RAL 9010 6193501
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HS15030CW / 6152031 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HS15030CW / 6152031 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
