Joint cover, for trunking, type WDK 20050 Pure white; RAL 9010
morepic-1 morepic-2

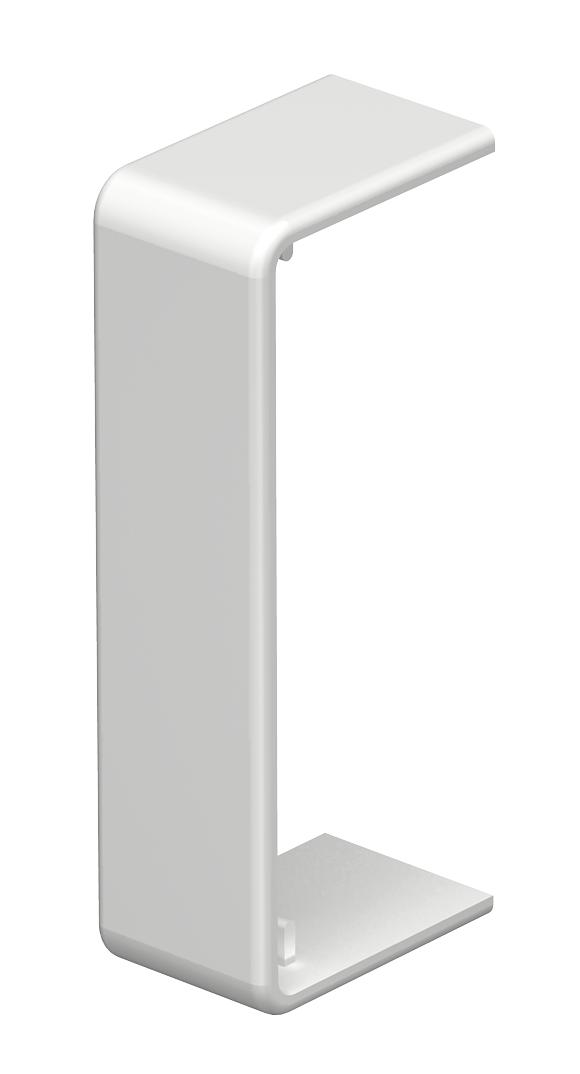

Joint cover, for trunking, type WDK 20050

Item no. 6154069 | EAN 4012196974481

Product description
Product description
Joint cover for smooth connection of trunking segments.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Cover width 14 mm
Dimension 20x50mm
Dimension a 53 mm
Dimension b 14 mm
Dimension H 50 mm
Fastening type Lockable
for duct dimension 20x50
Halogen-free no
Height 20 mm
Length 14 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Trunking depth 20 mm
Version for Trunking cut cover
Width 53 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK HS20050CW Cream; RAL 9001 6152104
10 piece
WDK HS20050RW Pure white; RAL 9010 6154069
10 piece
