Joint cover, for trunking, type WDK 40090 Cream; RAL 9001
morepic-1 morepic-2

Joint cover, for trunking, type WDK 40090

Item no. 6193582 | EAN 4012195462170

Product description
Product description
Joint cover for hiding cut edges and for smooth connection of trunking segments.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Cream; RAL 9001
Cover width 39 mm
Dimension 42x93x18mm

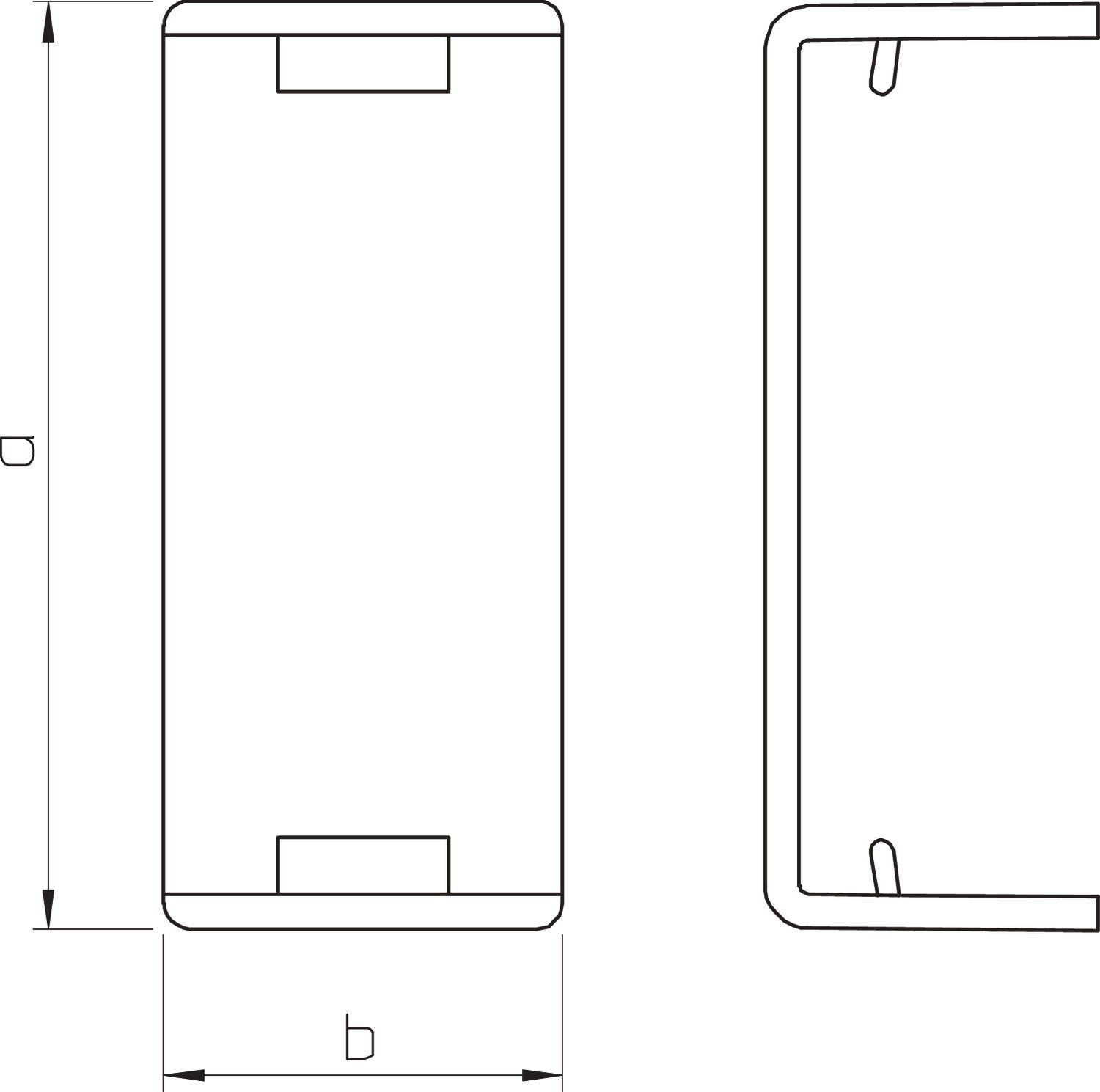

Dimension a 90 mm
Dimension b 39 mm
Fastening type Lockable
Halogen-free no
Height 39 mm
Length 18 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Version for Trunking cut cover
Width 90 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK HS40090RW Pure white; RAL 9010 6193580
20 piece
WDK HS40090CW Cream; RAL 9001 6193582
20 piece
Downloads

Download

Download

EU declaration of conformity WDK HS40090CW / 6193582 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HS40090CW / 6193582 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
