Joint cover, for trunking, type WDK 40110
Item no. 6193588 | EAN 4012195462187
- Product description
-
Product description

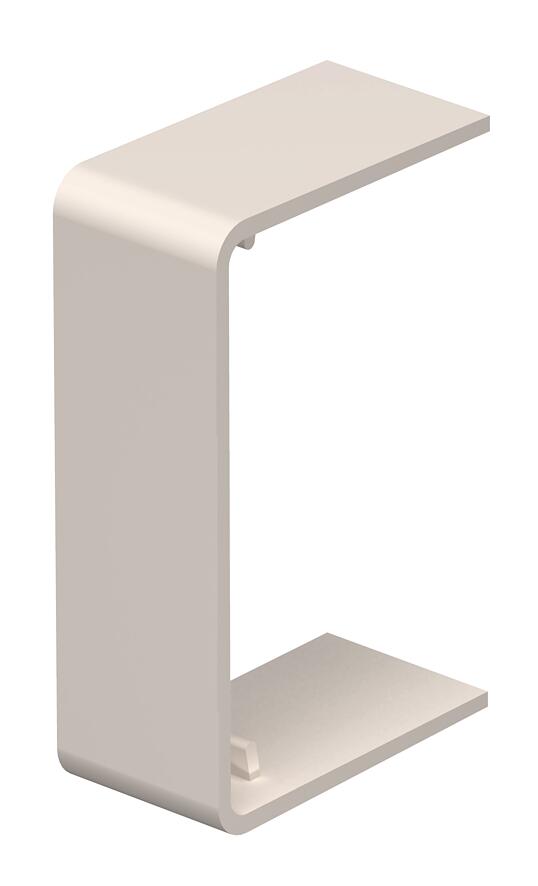

Joint cover for hiding cut edges and for smooth connection of trunking segments.
-
- Technical data
-
Technical data

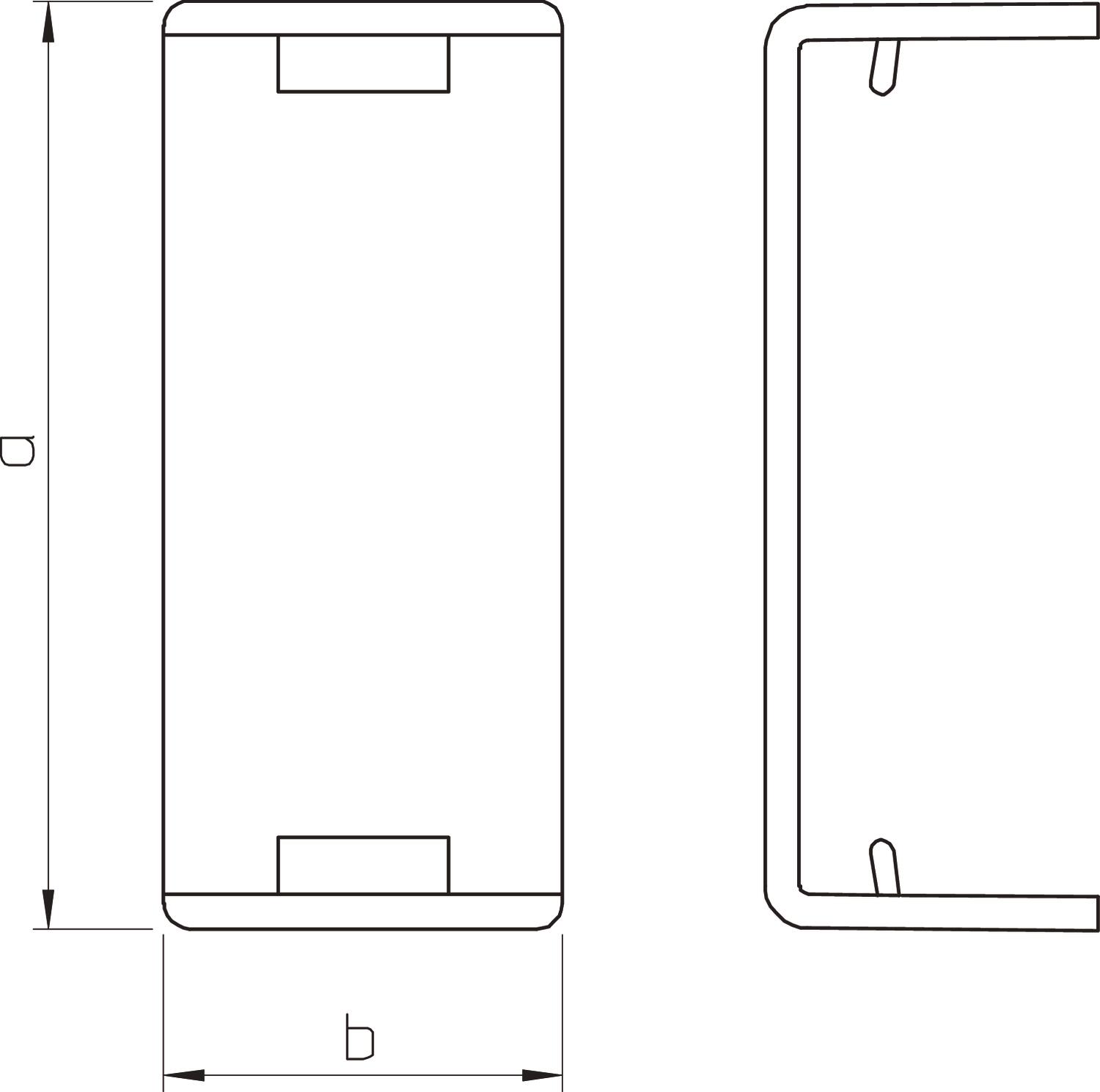

Colour Cream; RAL 9001 Cover width 39 mm Dimension 42x113x18mm Dimension a 110 mm Dimension b 39 mm Fastening type Lockable Halogen-free no Height 39 mm Length 18 mm Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Shape Symmetrical Version for Trunking cut cover Width 110 mm - All types
- Downloads
-
Data sheet WDK HS40110CW / 6193588 , 0.18MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HS40110CW / 6193588 , 0.13MB , pdfUK Declaration of Conformity WDK HS40110CW / 6193588 , 0.14MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
