Joint cover, for trunking, type WDK 60090 Pure white; RAL 9010
morepic-1 morepic-2

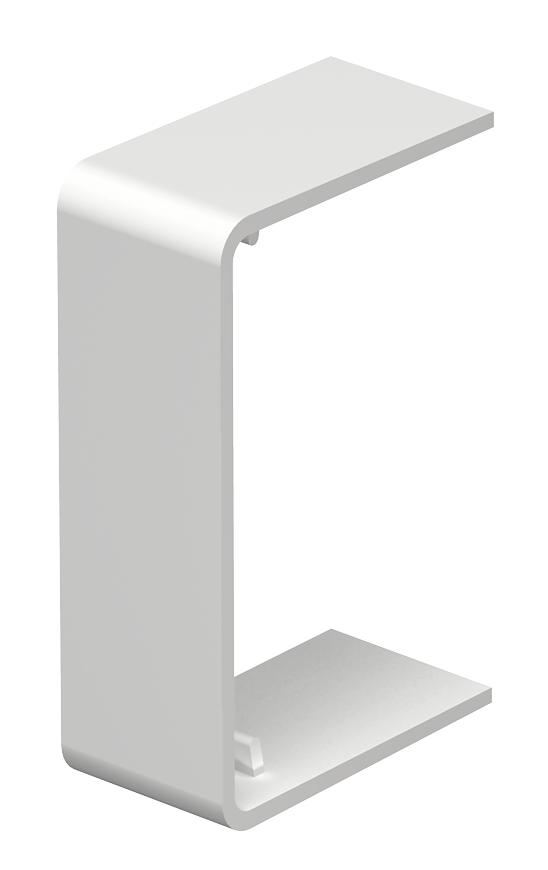

Joint cover, for trunking, type WDK 60090

Item no. 6193590 | EAN 4012195461838

Product description
Product description
Joint cover for hiding cut edges and for smooth connection of trunking segments.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 62x93x18mm

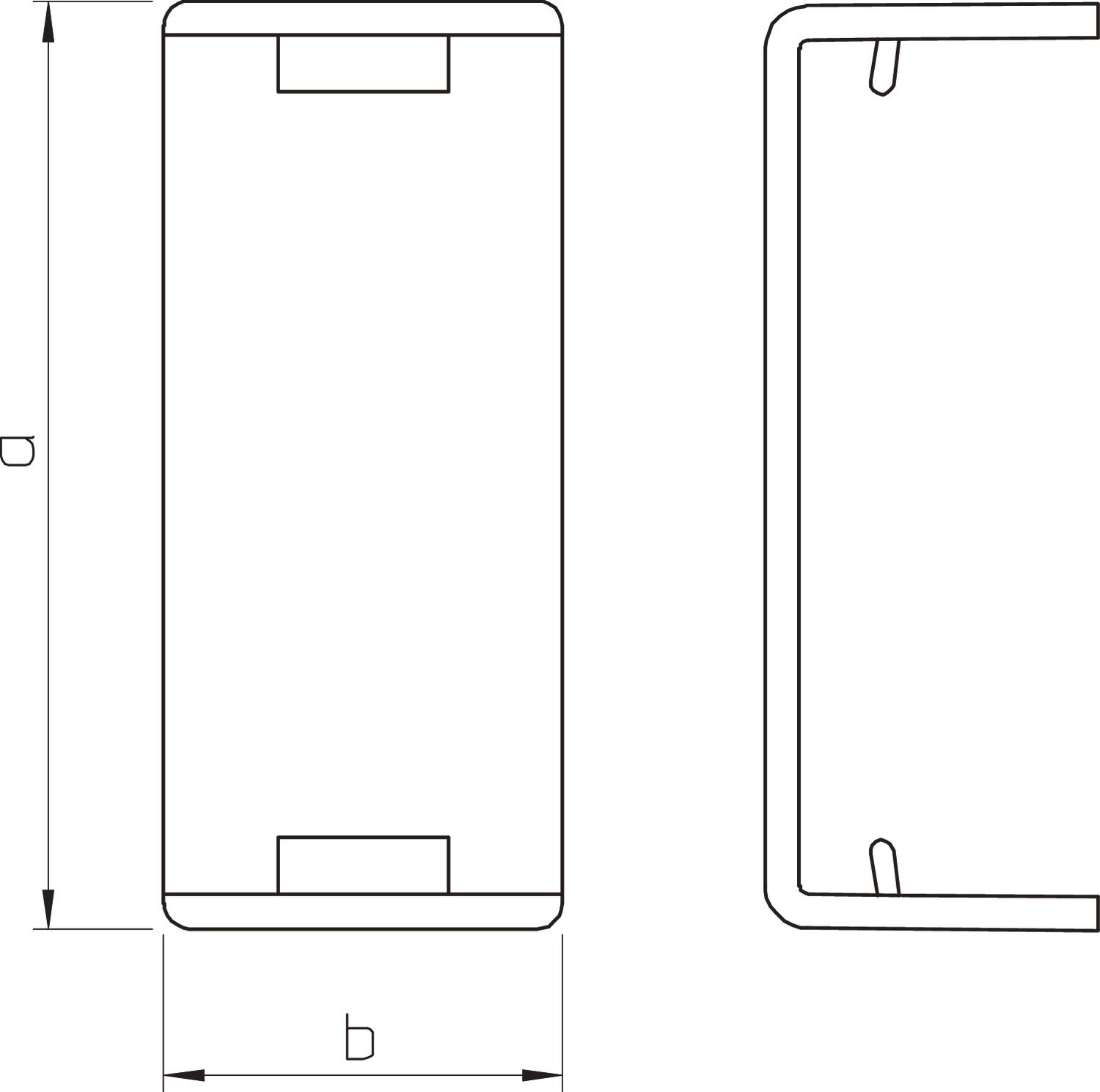

Dimension a 94 mm
Dimension b 18 mm
Fastening type Lockable
Halogen-free no
Height 62 mm
Length 18 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Version for Trunking cut cover
Width 94 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK HS60090RW Pure white; RAL 9010 6193590
20 piece
WDK HS60090CW Cream; RAL 9001 6193592
20 piece
