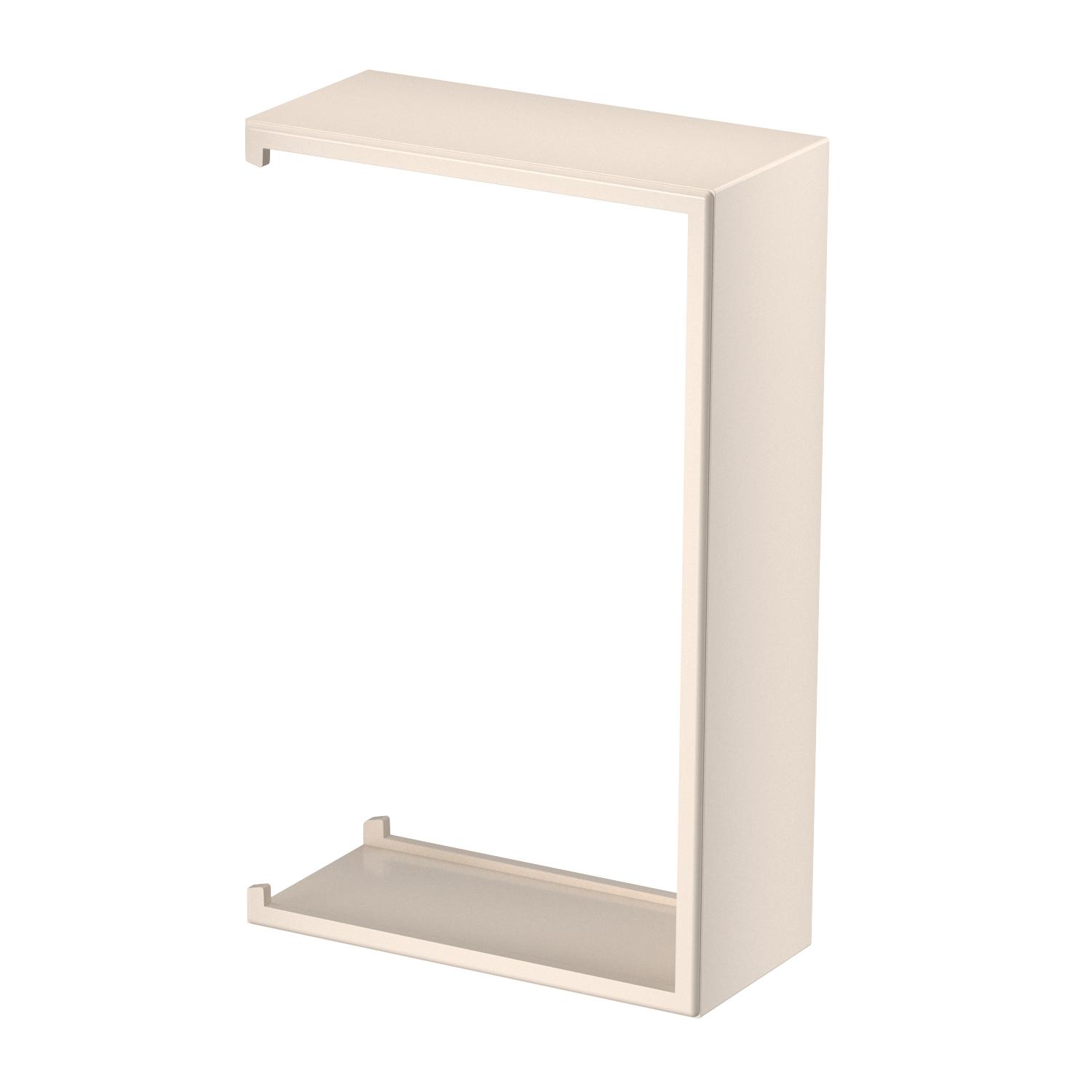

Joint cover Signa Base SSA 70110 Cream; RAL 9001

morepic-1

morepic-2

Joint cover Signa Base SSA 70110

Item no. 6132787 | EAN 4012196722648

Item no. / Types

Colour

Product description

Product description

Joint cover to connect the Signa Base device installation trunking.

Technical data

Technical data

Colour	Cream; RAL 9001
Cover width	80 mm
Fastening type	Self-adhesive
Halogen-free	yes
Height	73 mm
Length	35 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Shape	Symmetrical
Version for	Trunking cut cover
Width	117 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
BRK SSA70110 cws	Cream; RAL 9001	6132787	piece	10 piece
BRK SSA70110 rws	Pure white; RAL 9010	6132788	piece	10 piece

Downloads

Data sheet BRK SSA70110 cws / 6132787 , 0.21MB , pdf

Brochure Signa Base device installation trunking , 2.23MB , pdf

EU declaration of conformity BRK SSA70110 cws / 6132787 , 0.10MB , pdf

Label approval VDE symbol approval, SIGNA BASE device installation trunking , 0.25MB , pdf

Download

Mounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdf

Product graphic BRK SSA70110 cws / 6132787, 37.86 kB, jpg

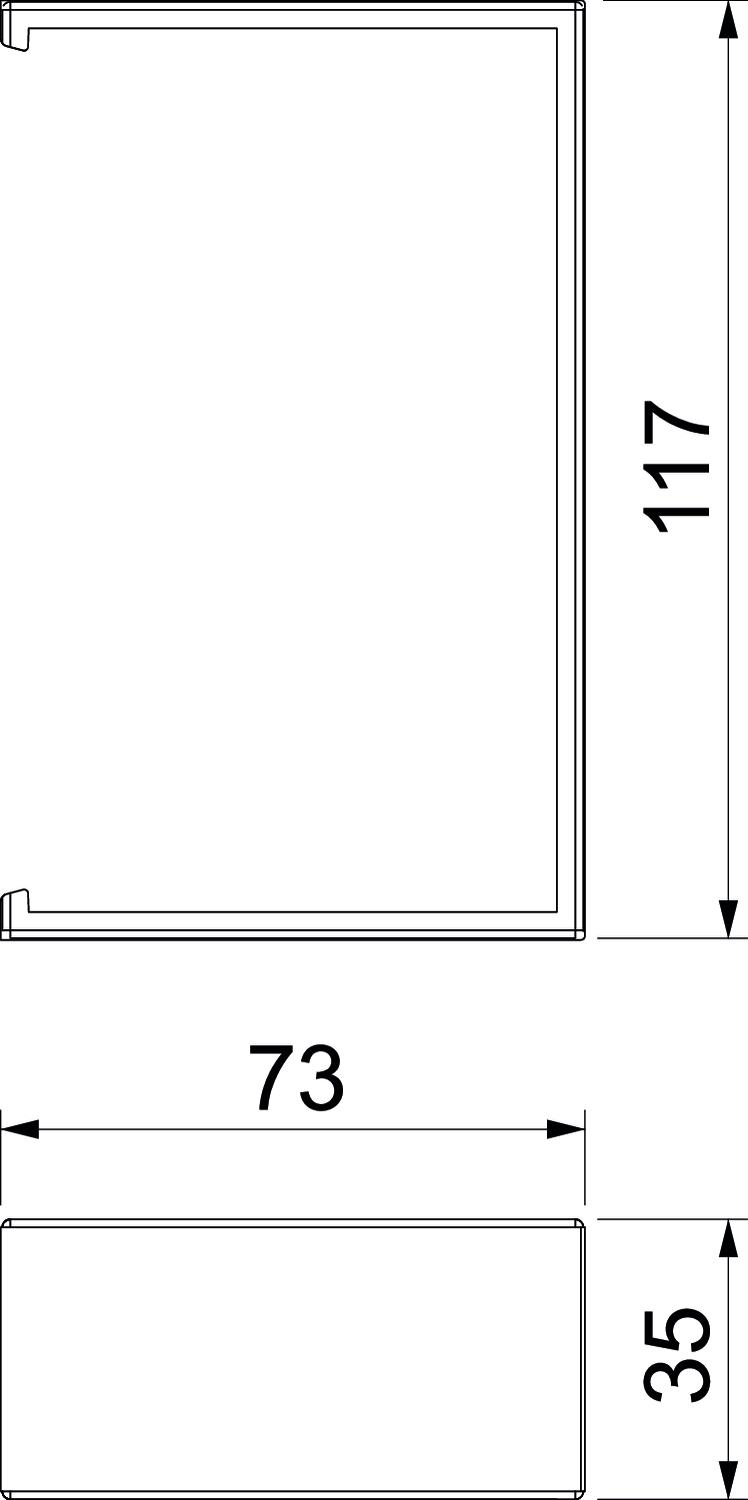

Scale drawing BRK SSA70110 cws / 6132787, 37.83 kB, jpg

No invitation to tender text is available for this product.
