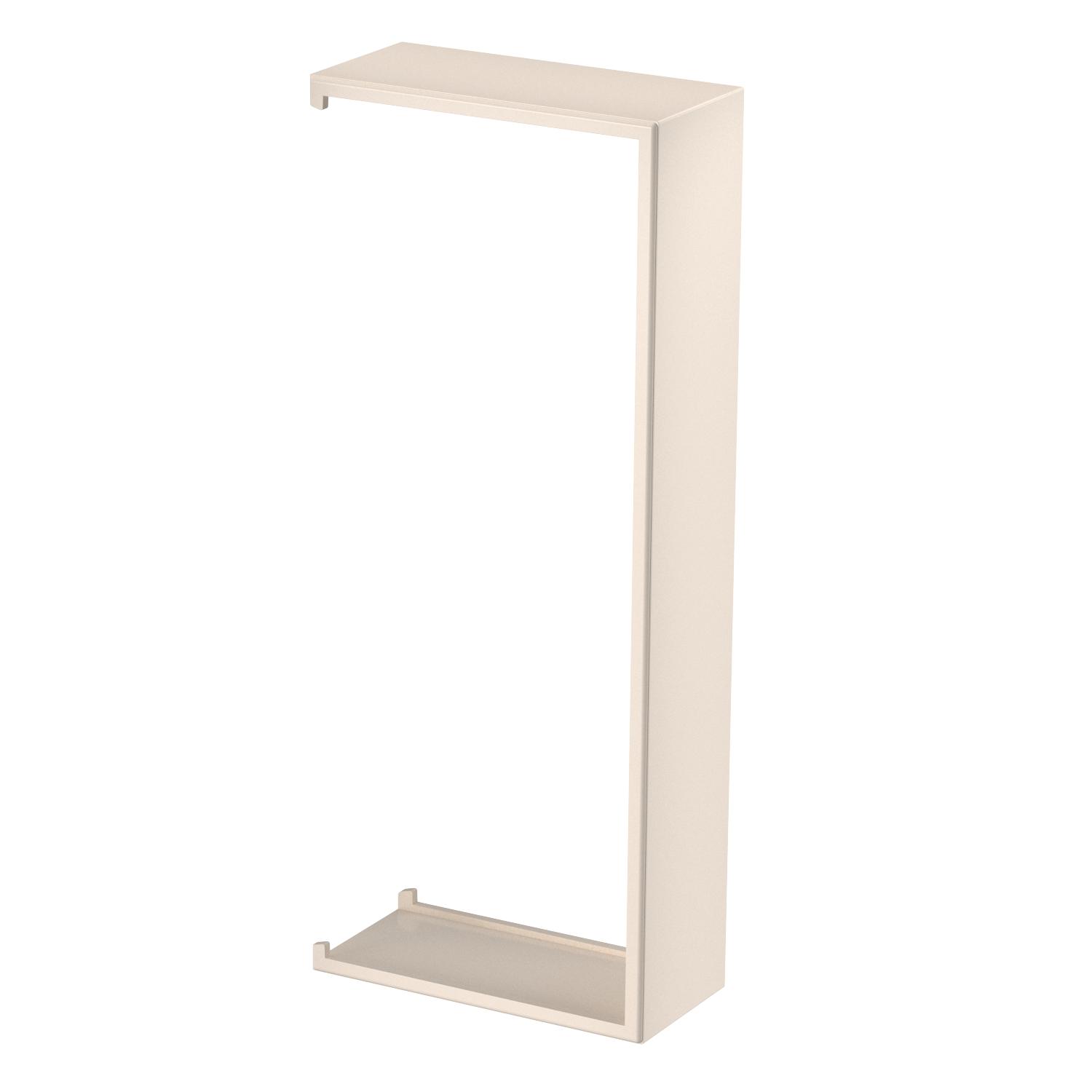

Joint cover Signa Base SSA 70170 Cream; RAL 9001

morepic-1

morepic-2

Joint cover Signa Base SSA 70170

Item no. 6132794 | EAN 4012196722693

Item no. / Types

Colour

Product description

Product description

Joint cover to connect the Signa Base device installation trunking.

Technical data

Technical data

Colour	Cream; RAL 9001
Cover width	80 mm
Fastening type	Self-adhesive
Halogen-free	yes
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Shape	Asymmetrical
Version for	Trunking cut cover

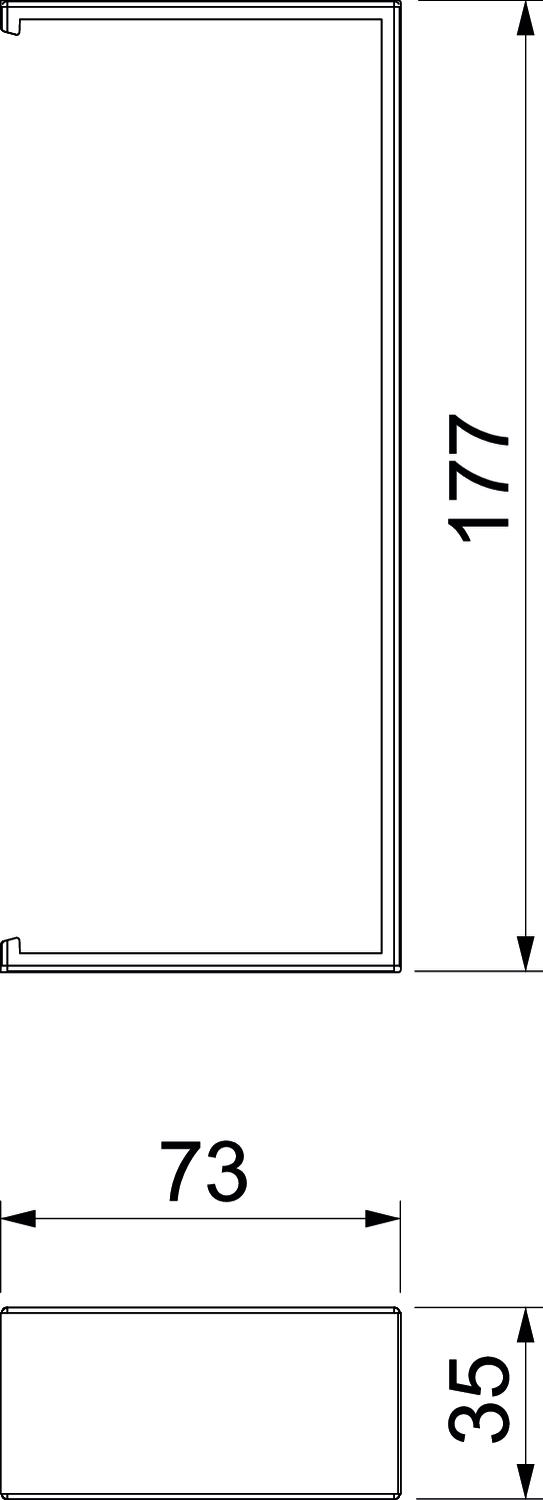

Dimensions

Height	73 mm
Length	35 mm

Width	177 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
BRK SSA70170 cws	Cream; RAL 9001	6132794	piece	1 piece
BRK SSA70170 rws	Pure white; RAL 9010	6132795	piece	1 piece
BRK SSA70170 lgr	Light grey; RAL 7035	6132796	piece	1 piece

Downloads

Data sheet BRK SSA70170 cws / 6132794 , 0.17MB , pdf

Brochure Signa Base device installation trunking , 2.23MB , pdf

Declaration of conformity BRK SSA70170 cws / 6132794 , 0.17MB , pdf

Label approval VDE symbol approval, SIGNA BASE device installation trunking , 0.25MB , pdf

Download

Mounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdf

Product graphic BRK SSA70170 cws / 6132794, 31.79 kB, jpg

Scale drawing BRK SSA70170 cws / 6132794, 28.55 kB, jpg

No invitation to tender text is available for this product.
