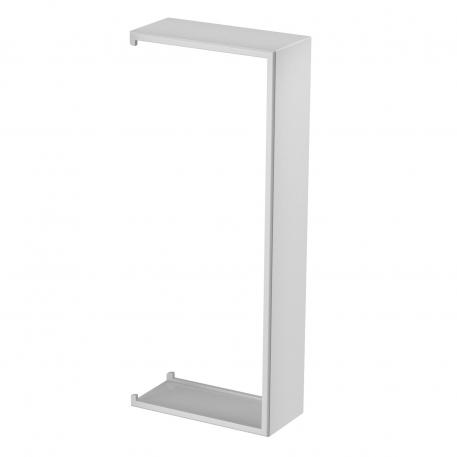

Joint cover Signa Base SSA 70170 Light grey; RAL 7035

morepic-1

morepic-2

Joint cover Signa Base SSA 70170

Item no. 6132796 | EAN 4012196722716

Item no. / Types

Colour

Product description

Product description

Joint cover to connect the Signa Base device installation trunking.

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover width	80 mm
Fastening type	Self-adhesive
Halogen-free	yes
Height	73 mm
Length	35 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP40
Protection rating IK code	IK07.
Shape	Symmetrical
Version for	Trunking cut cover
Width	177 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
BRK SSA70170 cws	Cream; RAL 9001	6132794	piece	10 piece
BRK SSA70170 rws	Pure white; RAL 9010	6132795	piece	10 piece
BRK SSA70170 lgr	Light grey; RAL 7035	6132796	piece	10 piece

Downloads

Data sheet BRK SSA70170 lgr / 6132796 , 0.21MB , pdf

Brochure Signa Base device installation trunking , 2.23MB , pdf

EU declaration of conformity BRK SSA70170 lgr / 6132796 , 0.10MB , pdf

Label approval VDE symbol approval, SIGNA BASE device installation trunking , 0.25MB , pdf

Download

Mounting instructions Geräteeinbaukanal Signa Base , 15.61MB , pdf

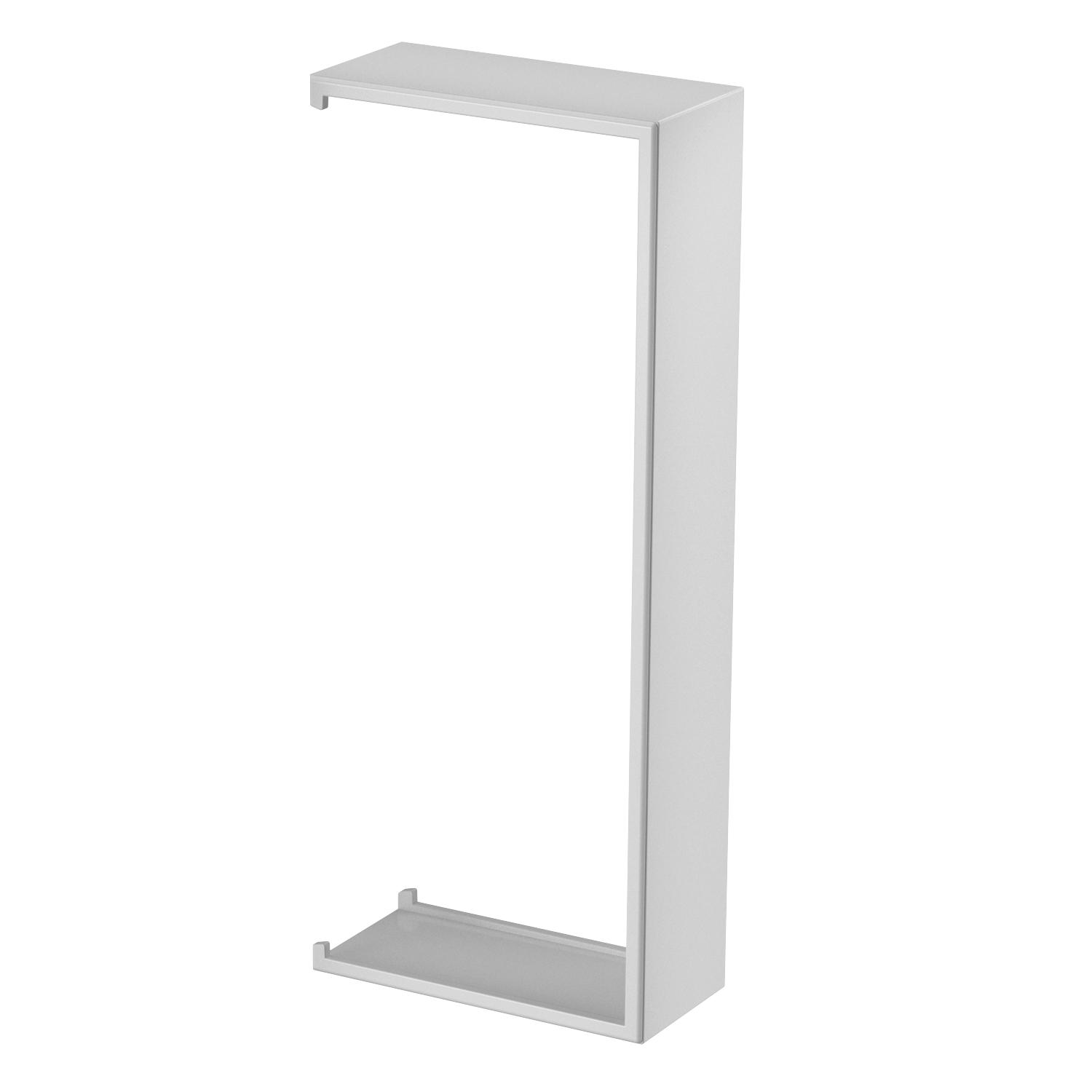

Product graphic BRK SSA70170 lgr / 6132796, 31.80 kB, jpg

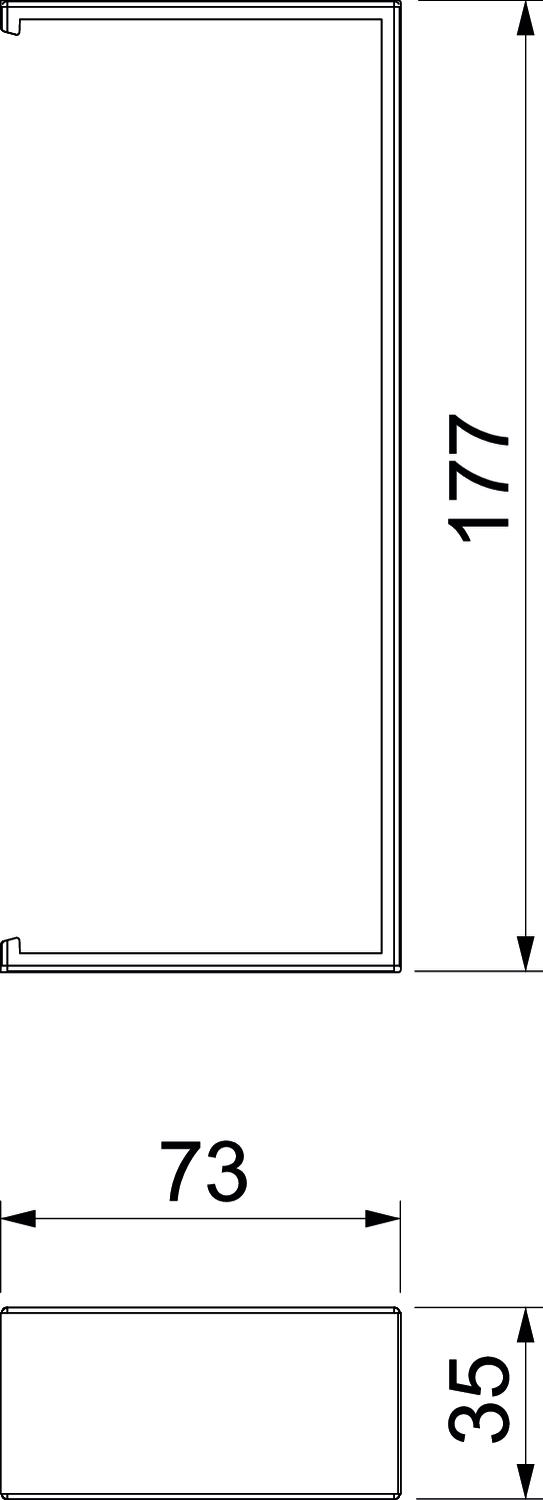

Scale drawing BRK SSA70170 lgr / 6132796, 28.55 kB, jpg

No invitation to tender text is available for this product.
