Joint cover, trunking height 90 mm Pure white; RAL 9010
morepic-1 morepic-2 video-1

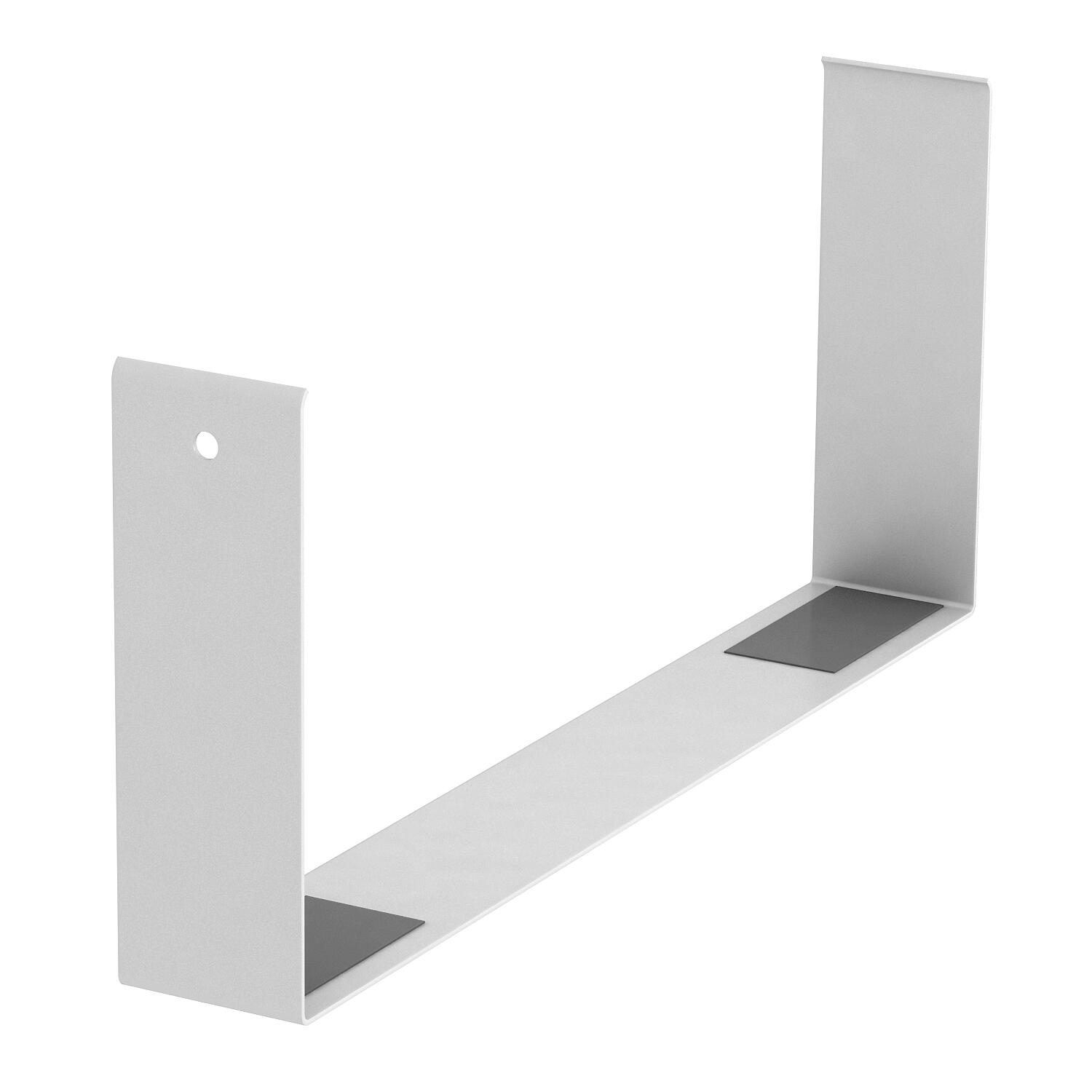

Joint cover, trunking height 90 mm

Item no. 6279788 | EAN 4012195667940

6279788 / G-SVS90210RW
Pure white; RAL 9010
Product description

Product description

Joint cover to hide sawn trunking joint edges.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Cover width 76,5 mm

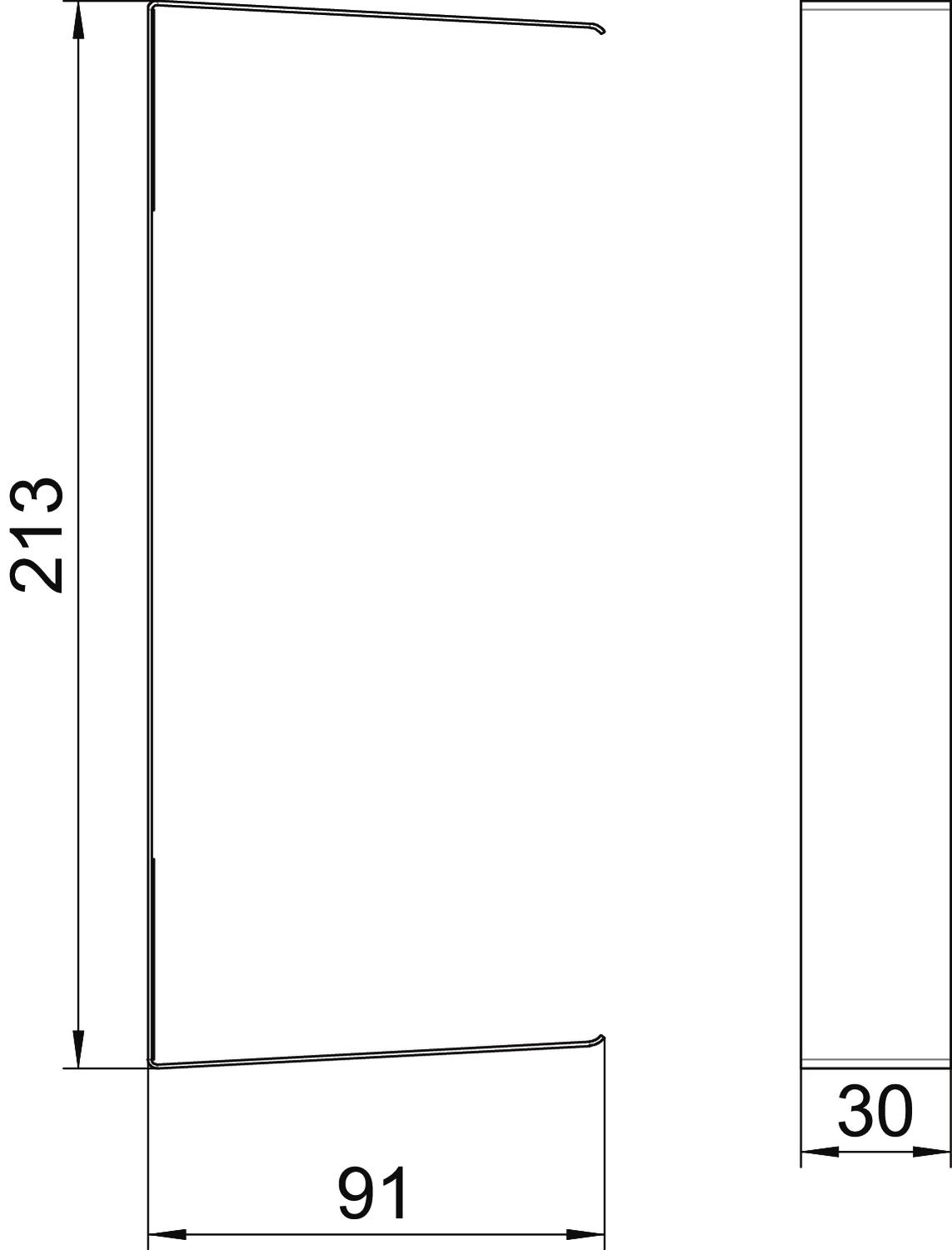

Dimension 90x210x30mm
Duct height, min. 90 mm
Fastening type Self-adhesive
for duct dimension 90x210
for duct width 210 mm
for trunking height 90 mm
Halogen-free yes
Height 91 mm
Length 30 mm
Material Steel
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Shape Universal
Trunking depth 90 mm
Version for Trunking cut cover
Width 213 mm
All types

All types

Types Colour Item no. Quantity SSU
G-SVS90210RW Pure white; RAL 9010 6279788
1 piece
Downloads

Download

Download

Declaration of conformity G-SVS90210RW / 6279788 , 0.13MB , pdf
Download
UK Declaration of Conformity G-SVS90210RW / 6279788 , 0.14MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
