- Product description
-

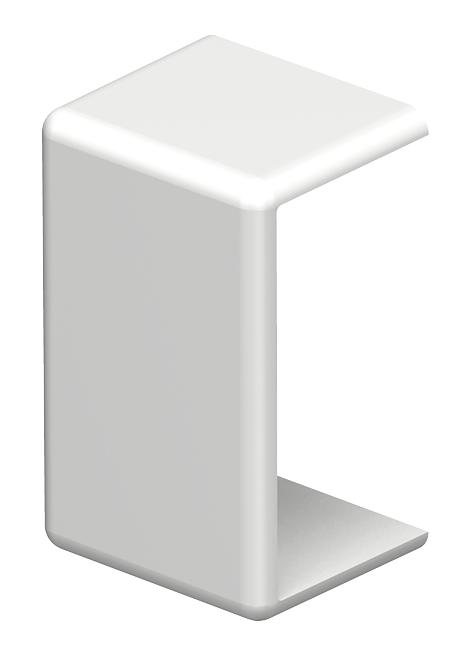

Product descriptionJoint cover for smooth connection of trunking segments.
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Cover width 14 mm Dimension 10x20mm Dimension a 22 mm Dimension b 14 mm Dimension H 20 mm Fastening type Lockable for duct dimension 10x20 Halogen-free no Height 10 mm Length 14 mm Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Shape Symmetrical Trunking depth 10 mm Version for Trunking cut cover Width 22 mm - All types
- Downloads
-
Data sheet WDK HS10020RW / 6154026 , 0.21MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HS10020RW / 6154026 , 0.13MB , pdfUK Declaration of Conformity WDK HS10020RW / 6154026 , 0.14MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdf
