Joint plate A4 85 | | 100 |

morepic-1

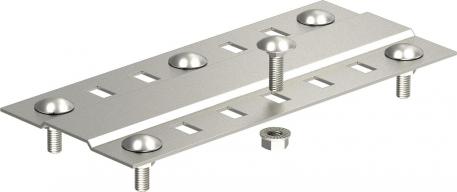

Joint plate A4

Item no. 7070390 | EAN 4012195021520

Item no. / Types

Width

Dimension B

Product description

Product description

Wide joint plate for use in all cable trays.

Technical data

Technical data

Colour	stainless steel
Connection type	Screw connector
Dimension	B100mm
Dimension B	100 mm
Maintain electrical functions	no
Material	Stainless steel
Quantity of bolts	2 St.

Rustproof steel, pickled	no
Suitable for cable tray	yes
Surface	Bright, treated
Version for	Joint plate
Wide-span version	yes
Width	85 mm

All types

All types

Types	Width	Dimension B	Item no.	Quantity	SSU
SSLB 100 A4	85 mm	100 mm	7070390	piece	20 piece
SSLB 200 A4	185 mm	200 mm	7070392	piece	20 piece
SSLB 300 A4	285 mm	300 mm	7070394	piece	20 piece
SSLB 400 A4	385 mm	400 mm	7070396	piece	20 piece
SSLB 500 A4	485 mm	500 mm	7070398	piece	20 piece
SSLB 600 A4	585 mm	600 mm	7070400	piece	20 piece
