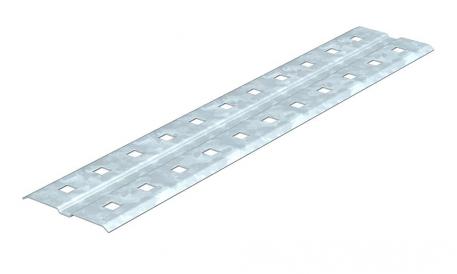

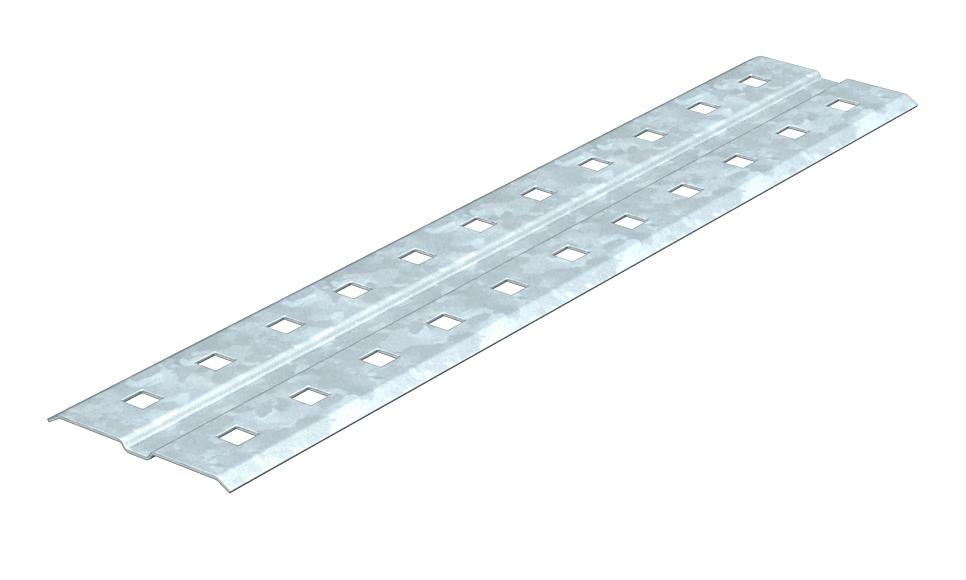

Joint plate DD

Item no. / Types

Width

Height	4 mm

Dimension B

Plate thickness	1.5 mm

Product description

Product description

Wide joint plate for use in all cable trays and wide span cable trays.

Technical data

Colour	zinc
Connection type	Screw connector
Dimension	B600mm
Dimension B	600 mm
Height	4 mm
Maintain electrical functions	no
Material	Steel
Plate thickness	1,5 mm
Quantity of bolts	6 St.

Rustproof steel, pickled	no
Suitable for cable tray	yes
Suitable for cable tray system height	35 mm
Surface	Strip galvanised zinc/aluminium, Double Dip
Version for	Joint plate
Wide-span version	yes
Width	585 mm
Width	24 in

All types

All types

Types	Width	Height	Dimension B	Plate thickness	Item no.	Quantity	SSU
SSLB 100 DD	85 mm	4 mm	100 mm	1.5 mm	7070306	piece	20 piece
SSLB 150 DD	135 mm	4 mm	150 mm	1.5 mm	7070310	piece	20 piece
SSLB 200 DD	185 mm	4 mm	200 mm	1.5 mm	7070314	piece	20 piece
SSLB 300 DD	285 mm	4 mm	300 mm	1.5 mm	7070318	piece	20 piece
SSLB 400 DD	385 mm	4 mm	400 mm	1.5 mm	7070322	piece	20 piece
SSLB 500 DD	485 mm	4 mm	500 mm	1.5 mm	7070326	piece	20 piece
SSLB 550 DD	535 mm	4 mm	550 mm	1.5 mm	7070330	piece	20 piece
SSLB 600 DD	585 mm	4 mm	600 mm	1.5 mm	7070334	piece	20 piece
