- Product description
-
Product description

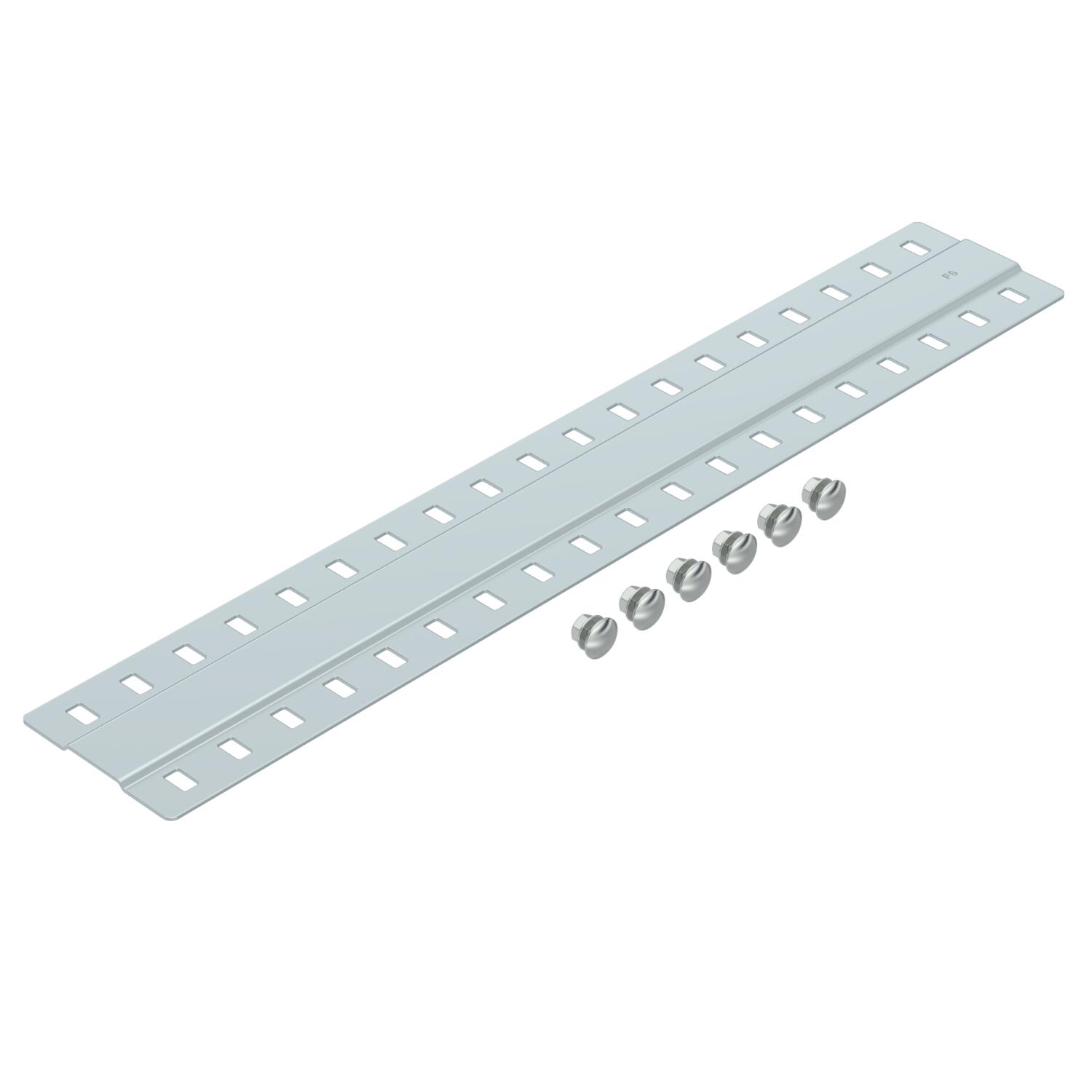

Wide joint plate for use in all cable trays and wide span cable trays.
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension B500mm Dimension B 500 mm Height 4 mm Length 500 mm Maintain electrical functions no Material Steel Plate thickness 1,5 mm Quantity of bolts 6 St. Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 35 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Joint plate Wide-span version yes Width 485 mm Width 20 in - All types
-
All types
- Downloads
-
Data sheet SSLB 500 FS / 7070225 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity SSLB 500 FS / 7070225 , 0.10MB , pdfUK Declaration of Conformity SSLB 500 FS / 7070225 , 0.14MB , pdfREACH Declaration of conformity SSLB 500 FS / 7070225 , 0.12MB , pdfRoHS Declaration of conformity SSLB 500 FS / 7070225 , 0.12MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
