- Product description
-

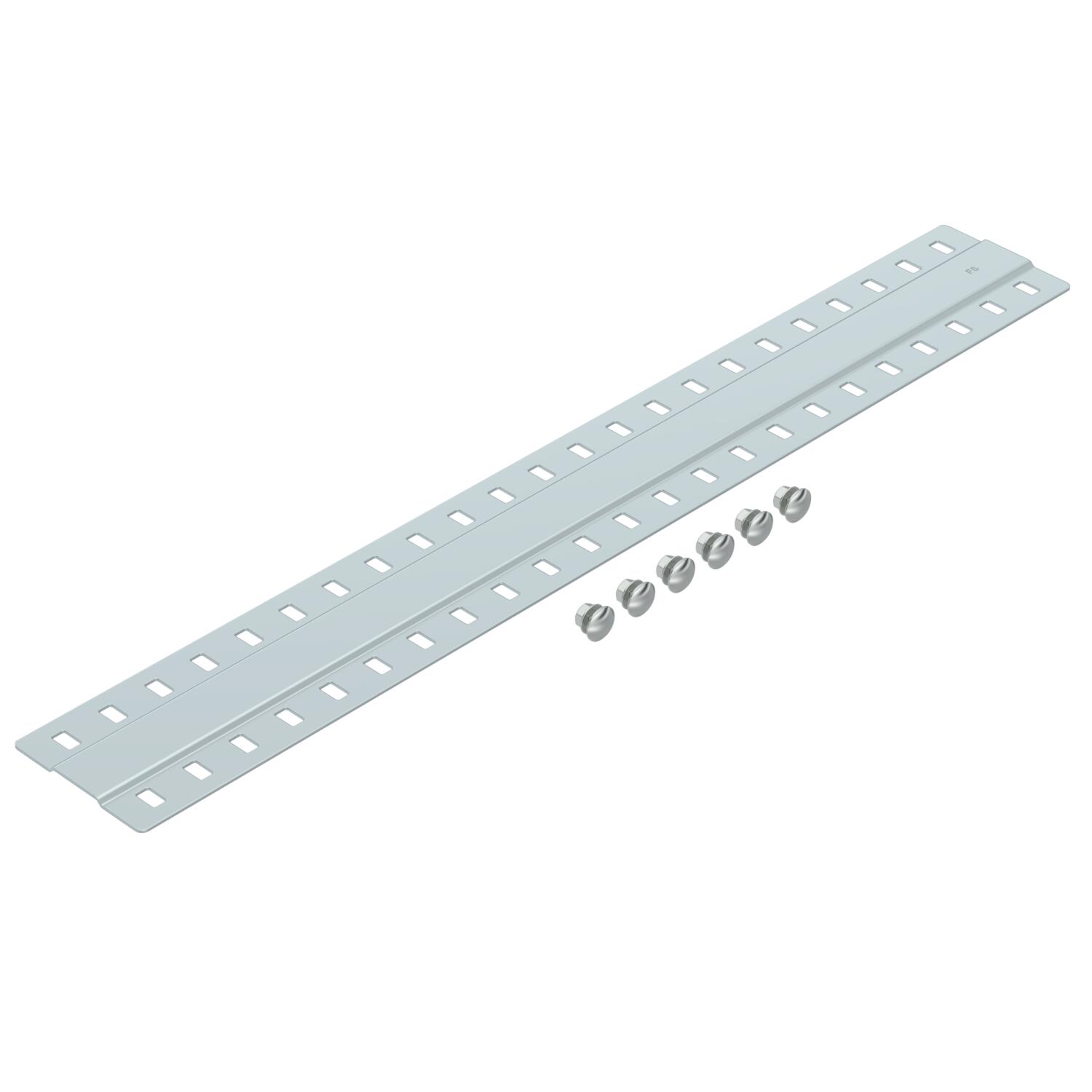

Product descriptionWide joint plate for use in all cable trays and wide span cable trays.
- Technical data
-
Technical data

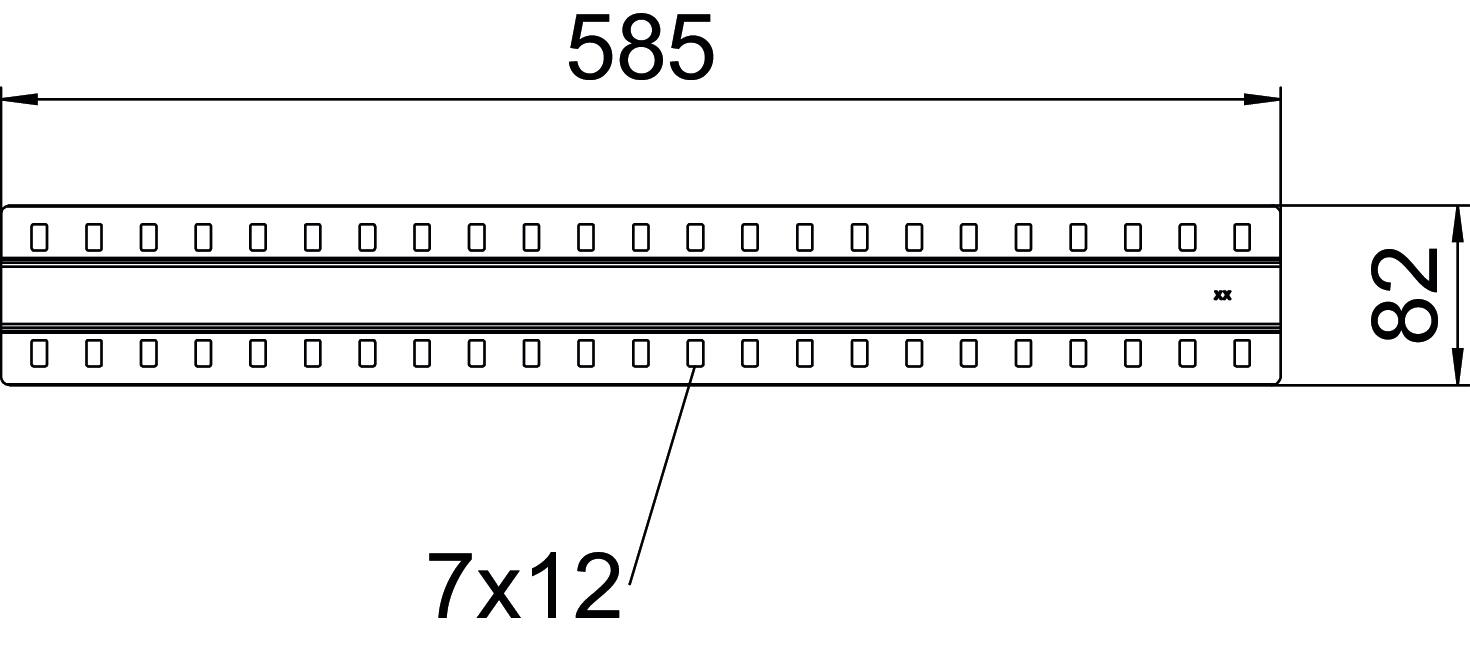

Adjustable connector, horizontal no Articulated connector, vertical no Colour zinc Connection type Screw connector Dimension B600mm Dimension B 600 mm Height 4 mm Length 600 mm Maintain electrical functions no Material Steel Plate thickness 1,5 mm Quantity of bolts 6 St. Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 35 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Joint plate Wide-span version yes Width 24 in Width 585 mm - All types
-
All types
- Downloads
-
Data sheet SSLB 600 FS / 7070233 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SSLB 600 FS / 7070233 , 0.10MB , pdfUK Declaration of Conformity SSLB 600 FS / 7070233 , 0.14MB , pdfREACH Declaration of conformity SSLB 600 FS / 7070233 , 0.12MB , pdfRoHS Declaration of conformity SSLB 600 FS / 7070233 , 0.13MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
